1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: 1500W Collimation Focal Length: 60mm
Focusing Focal Length: 150mm Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option )
Welding Materials: Steel / Stainless Steel / Aluminium Electrical Input Voltage: 220v 50Hz / 60Hz
Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option ) Welding Thickness: 4mm Stainless Steel Full Penetration
Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon )
High Light:

Single Motor Laser Welding Machine

,

Multifunctional Laser Welding Machine

,

1500W Handheld Laser Welding Machine
Product Description

Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes





1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes Description:



The Handheld Single Wobble Welding Head is a cutting - edge and innovative welding instrument. Adhering to user - focused design principles, it adeptly addresses intricate welding requirements by carefully taking into account both the practicalities of the welding procedure and the comfort during long - term usage. It provides a more efficient and precise means of conducting welding projects.

This welding head is characterized by a light - weight, compact, and ergonomically - designed structure, ensuring a comfortable and secure grip. It can be readily adapted to diverse welding tasks across a wide range of working environments. Whether it's large - scale factory manufacturing or outdoor on - site repair operations, it is fully capable of achieving outstanding outcomes.


1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes 0

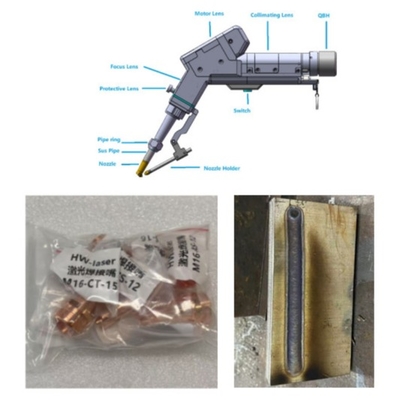

1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes Features:

  • Handheld Laser Welding Machine
  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Gun Weight: 0.7kg
  • Fiber Connector: QBH
  • Fiber Cable: 10m Standard. (15 / 20m Option)
  • Laser Beam Size: 0~5mm Adjustable
  • Positioning: Red Guide Beam
  • Gas: Argon / Nitrogen



The Fiber Laser Welding Head is a high - quality fiber laser device that comes with a QBH fiber coupler. This enables the adjustment of the laser beam diameter within the scope of 0 - 5mm. It features a red alignment beam for accurate positioning.

This fiber optic laser welding accessory is remarkably light, with a weight of just 0.7kg. It has been meticulously designed, taking the comfort of end - users fully into account.

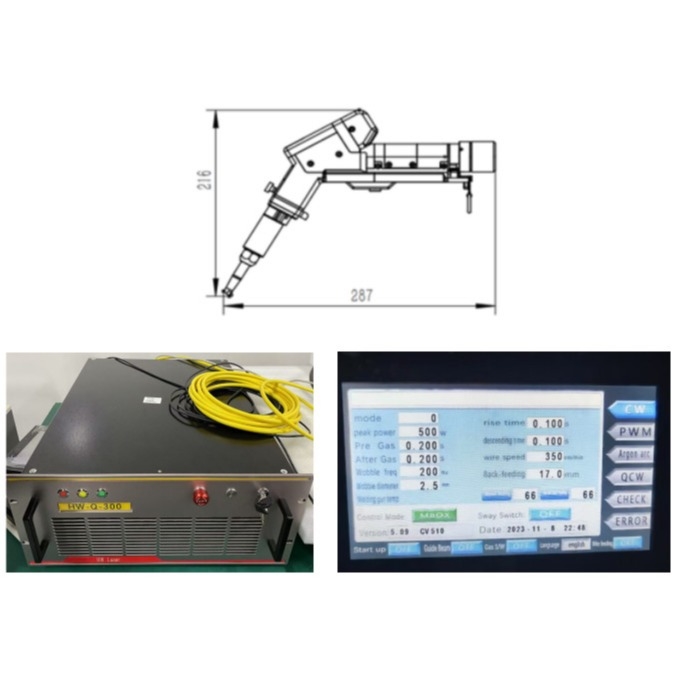

1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

1500W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Position Guide

Red Guide Light

Fiber Connector

QBH

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Welding Parameter Save

30 kinds of different welding parameter save

Welding Beam Size

0-5mm Adjustable

Cooling method in Winter

Add Antifreeze



1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes 1



1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes Application Advantages:



The HanWei HW - DZJS - 1500 handheld welding apparatus showcases remarkable performance under numerous circumstances. Its portability provides unparalleled ease for on - site welding tasks, rendering it suitable for almost any location. The wireless welding function streamlines the procedure, enabling the quick completion of welding projects. This product is highly valuable in the construction, manufacturing, and repair industries, emerging as a crucial instrument for those in pursuit of a reliable and efficient welding alternative.

The handheld single - oscillating welding machine serves as an excellent alternative to traditional argon arc welding and electric welding techniques when working with thin metal sheets such as stainless steel, common steel, and aluminum. The welding torch is lightweight, compact, and ergonomically designed to guarantee a comfortable grip. It features a safety lock and a touch - sensitive indicator lamp. Its user - friendly layout places minimal requirements on the operator. The weld joint is of superior quality, the welding speed is fast, and there are no welding scars or color alterations, thus eliminating the need for post - welding polishing. It demonstrates robust anti - interference capabilities and is equipped with an in - house developed control system.

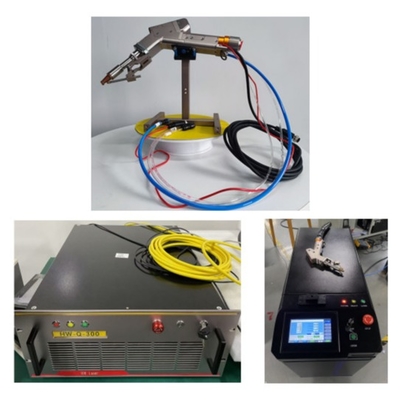

1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes Packing:


  • Seven kinds of nozzles
  • Two Protective Lens
  • One Fiber Laser Welding Head
  • One Wire feeding device
  • One Safety Switch Clip
  • A set of Connection Cables and Line
  • One Touch Screen Monitor
  • One Controller
  • One 15v Power Supply
  • One User Manual



​1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. presents an extensive range of laser equipment, covering both desktop and handheld types. These devices employ state - of - the - art fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies. They are carefully designed to meet the distinct requirements of customers. Additionally, the company offers customized solutions for particular applications and provides training and assistance to enable customers to fully exploit the capabilities of their laser systems. With branches and affiliates in Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the globe.

Hanwei Laser centers its core operations on the field of laser welding. The firm is committed to furnishing international laser integration companies with top - notch laser welding technology. It strives to offer first - rate welding technology to all integrators. As one of the scarce global national high - tech niche and emerging enterprises, it specializes in the R & D, production, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.

1500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes 31500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes 41500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes 51500W Handheld Single Motor Laser Welding Machine with Multifunctional Laser Output Modes 6
