2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-50500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

20m Cable Laser Cleaning Head

10m Cable Laser Cleaning Head

Laser Cleaning Head 300mm
Specifications
Handheld Laser Gun Weight: 0.7 Kg Adopt Laser Source: 1064~1080nm Fiber Laser Source
Cleaning Materials: Steel / Stainless Steel Laser Power: 2000W
Cleaning Laser Beam Size: 0-300mm Adjustable Collimation Focal Length: 50mm
Focusing Focal Length: 500mm Machine Electric Consumption: 8 Kw/h About
Laser Output Mode: CW
High Light:

QBH Fiber Connector Laser Cleaning Machine

,

2000W Laser Cleaning Machine

,

Handheld Single Motor Laser Cleaning Machine
Product Description

2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector





2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector Description:



The Compact Single - Motor Cleaning Device presents a highly effective cleaning solution. Essentially, it employs a single motor as its power source, driving the internal pump and other parts of the cleaning apparatus. This cleaning implement excels particularly in cleaning materials such as steel and stainless steel. It takes in water from the water reservoir and boosts its pressure. Through the spray gun and other auxiliary components, a high - pressure water stream is produced to remove grime from the surfaces of various objects.

The cleaning gun is lightweight and small in size. It is designed in line with ergonomic concepts, ensuring user - friendly operation. It can easily adjust to a diverse array of cleaning tasks in different working conditions. Whether in industrial large - scale production settings or during outdoor on - site repair work, it delivers outstanding results.

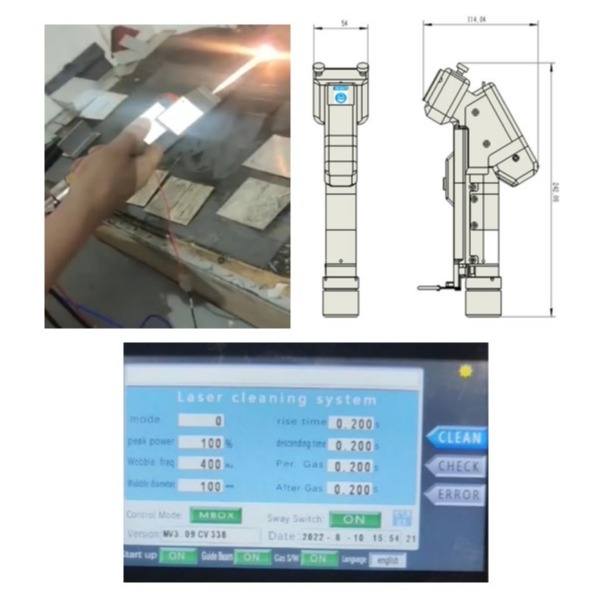

2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector 0

2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector Features:

  • Product Name: Fiber Laser Cleaning Machine
  • Laser Power: 2000W
  • Handheld Laser Gun Weight: 0.7kg
  • Laser Head Connection: QBH
  • Cleaning Laser Beam Form: Line “一”
  • Cleaning Materials: Steel / Stainless Steel
  • Standard Focus length: 50 & 500mm standard Focus length adjustable
  • Machine Electric Consumption: 8 Kw/h about
  • Cleaning Laser Beam Size: 0-300mm Adjustable
  • Wavelength: 1064nm~1080nm
  • Positioning: Red Guide Beam
  • Gas: Nitrogen / No Gas



The Fiber Laser Cleaning Nozzle, an excellent Fiber Laser accessory featuring a QBH fiber interface, showcases outstanding performance. This Fiber - optic Laser Cleaning device is not only light in weight but also highly convenient to use. Altogether, it has a mass of merely 0.7 kg. The diameter of its cleaning beam is adjustable within the range of 0 to 300 mm, and it comes with a red positioning beam to ensure precise positioning.


2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector Technical Parameters:



Product Name

Handheld Single Motor Laser Cleaning Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Handheld Laser Gun Weight

0.7 KG

Laser Power

2000W

Laser Output Mode

CW

Standard Focus Length

50 & 500mm standard Focus length adjustable

Cleaning Beam Form

Line " 一 "

Fiber Connector

QBH

Fiber Cable

10m Standard. (15 / 20m Option)

Cleaning Beam Size

0-300mm Adjustable

Position Guide

Red Guide Light

Cleaning Parameter Save

10 kinds of different welding parameter save

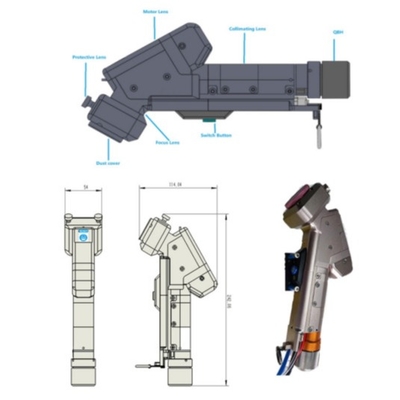

2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector 1



2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector Application Advantages:


The HanWei HW - 20 - 50500 handheld cleaning equipment demonstrates outstanding practical advantages. It is highly portable. Thanks to its compact and lightweight design, it can be easily carried and operated. This makes it particularly ideal for cleaning in confined spaces and for mobile cleaning tasks. It doesn't need complicated machinery or a large number of workers, thereby enhancing operational flexibility.

The handheld single - vibration cleaning nozzle also shows great adaptability. It can skillfully handle various surface materials, multiple object shapes, and different levels of dirt. Whether it's used for vehicle cleaning, home cleaning, or industrial equipment maintenance, its performance is reliable. Moreover, it is energy - saving and cost - effective. The single - motor setup conserves energy while providing sufficient cleaning power. It simplifies the cleaning process, reducing both time and energy consumption. Due to its simple structure, it has lower production and maintenance costs. It is easy to use, without the need for specialized training, allowing all users to access it conveniently and minimizing operational errors and training expenses.


2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector Packing:


  • One Handheld Laser Gun
  • One 15v Power Supply
  • One Safety Switch Clip
  • One Controller
  • A set of Connection Cables and Line
  • One Touch Screen Monitor
  • Two Protective Lens
  • One Dust Cover
  • One User Manual

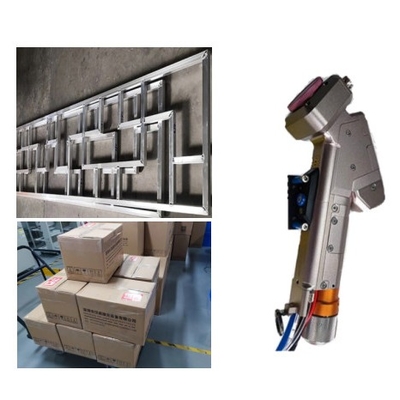

2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to offering world - class welding technology to integrators worldwide. The company is one of the few globally that can concentrate intensively on researching, developing, manufacturing, and marketing various welding lasers, laser control systems, laser optical components, and laser welding technologies. It is a national high - tech and specialized - and - sophisticated - and - new enterprise with a complete industrial chain.

Hanwei Laser has successfully developed a series of welding laser products that are at the international advanced level. For instance, the AMB spot - ring spot welding machine features unique technical methods that are absent in other global companies. Moreover, the "AMB spot - ring spot + blue light composite swing welding machine" not only fills the domestic technological void but also takes the lead globally in this field. It effectively overcomes problems like inconsistent welding quality, rough welding surfaces, and spatter during the laser welding of highly reflective materials such as copper and gold. Additionally, the "AMB spot - ring spot + semiconductor composite welding machine" solves the problems of uneven fusion depth and non - consistent welding speed in the welding of aluminum materials for power batteries. What's more, the "semiconductor + single - lamp single - rod 600W composite laser welding machine" addresses the challenges of low production yields, poor welding quality, and slow processing speeds in the sealing nail welding of power batteries.



2000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector 32000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector 42000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector 52000W Handheld Single Motor Laser Cleaning Machine with QBH Fiber Connector 6
