Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Deep Penetration Wobble Laser Welding Head

300mm Wobble Laser Welding Head

Wobble Laser Welding Head 1000w
Specifications
Laser Power: Up To 2000w Welding Beam Size: 0-5mm Adjustable According To Welding Requirements
Electrical Input Voltage: 220v 50Hz / 60Hz Welding Beam Form: —、o、◎、◎、△、8
Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save Welding Materials: Steel / Stainless Steel / Aluminium
Reflective Lens: 60° Reflective & 45° Reflective Collimation Focal Length: 60mm
Focusing Focal Length: 150mm Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
High Light:

Handheld Laser Welding Head

,

Double Motor Laser Welding Head
Product Description

Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes





Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes Description:



The Handheld Double - Motor Welding Head stands as a state - of - the - art and ground - breaking welding device. Adopting a user - focused design concept, it skillfully caters to complex welding needs. It carefully considers not only the practical aspects of the welding process but also the convenience during extended operations, thereby offering a more efficient and accurate way for welding tasks.

This welding head features a light - weight, sleek, and human - engineered structure, guaranteeing a comfortable and firm hold. It can be easily adapted to various welding jobs in a broad spectrum of working conditions. Whether it's high - volume production in industrial factories or outdoor on - the - spot repair work, it is perfectly able to achieve excellent results.

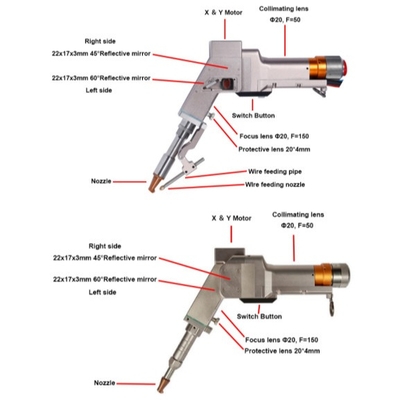

Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes 0

Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes Features:

  • Product Name: Fiber Laser Welding Head
  • Laser Beam Size: 0~5mm Adjustable
  • Handheld Laser Gun Weight: 0.7kg
  • Fiber Connector: QBH
  • Welding Beam Form: —,o,◎,◎,△,8
  • Reflective Lens: 60° Reflective & 45° Reflective
  • Positioning: Red Guide Beam
  • Gas: Argon / Nitrogen



The Fiber Laser Welding Head is a premium-grade fiber laser device fitted with a QBH fiber coupler. The diameter of its laser beam can be regulated between 0 and 5 mm. Moreover, it incorporates a red alignment beam for precise positioning.

This optic fiber welding tip is remarkably lightweight. Engineered with meticulous attention to enhance user comfort, it has a total weight of just 0.7 kg.



Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes Technical Parameters:



Product Name

Handheld Double Motor Laser Welding Head

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

Up to 2000W

Handheld Laser Gun Weight

0.7kg

Reflective Lens

60° Reflective & 45° Reflective

Welding Beam Size

0-5mm Adjustable

Fiber Connector

QBH

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Welding Beam Form

—,o,◎,◎,△,8

Position Guide

Red Guide Light

Welding Parameter Save

30 kinds of different welding parameter save

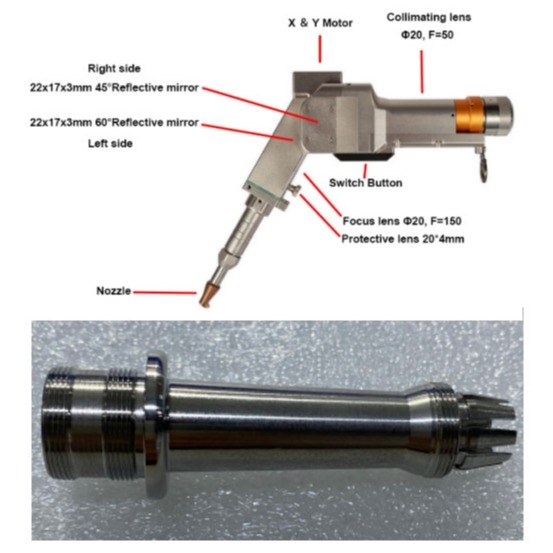

Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes 1



Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes Application Advantages:



The HanWei HW-20-60150 handheld welding system, featuring Reflective Lenses with 60° and 45° deflection angles, demonstrates exceptional capabilities across diverse applications. Its portability ensures unmatched convenience for field welding tasks, enabling operation in nearly any environment. The cordless welding functionality streamlines workflow processes, allowing welding jobs to be completed rapidly. This product holds significant value in construction, manufacturing, and repair industries, emerging as an indispensable tool for professionals seeking reliable and efficient welding solutions.

The handheld dual-oscillation welding unit serves as an advanced alternative to traditional TIG and stick welding methods when working with thin metal sheets such as stainless steel, mild steel, and aluminum. The welding torch is characterized by a slim profile, space-saving design, and user-centric grip to ensure fatigue-free operation. It incorporates a security lock and intuitive LED status indicator. Its simplified interface minimizes operator training requirements. The resulting welds exhibit superior quality with high-speed deposition rates, leaving no visible marks or discoloration, thus eliminating post-weld finishing needs. Equipped with proprietary control technology, the system demonstrates robust interference resistance and stable performance.

Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes Packing:

  • One User Manual
  • One Wire feeding device
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One Fiber Laser Welding Head
  • One 15v Power Supply
  • One Controller
  • One Touch Screen Monitor
  • Seven kinds of nozzles
  • One Safety Switch Clip

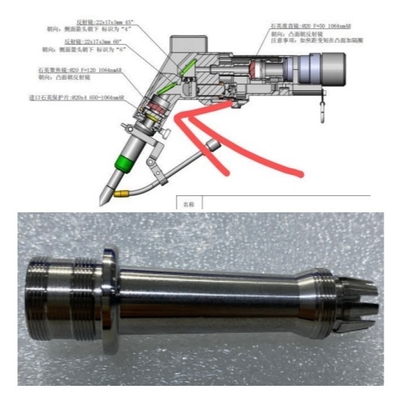

​Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. offers a comprehensive portfolio of laser systems, spanning both benchtop and portable configurations. These solutions leverage advanced fiber, pulsed/continuous-wave, blue laser, diode laser, and hybrid laser technologies, meticulously tailored to address unique customer demands. Additionally, the company delivers bespoke applications for niche markets and provides operational training to empower clients in maximizing their laser system capabilities. With subsidiaries and partners strategically positioned across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a worldwide footprint, serving clients globally.

Hanwei Laser’s core expertise lies in laser welding. The firm is dedicated to supplying premium laser welding solutions to international laser integration firms, aiming to elevate welding standards for all integrators. As one of the few globally recognized national high-tech enterprises specializing in innovation, it excels in end-to-end R&D, manufacturing, and distribution of welding lasers, laser control systems, laser optics, and welding processes across the entire industrial spectrum.

Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes 3Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes 4Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes 5Handheld Double Motor Laser Welding Head with Multi-Geometry Beam Shapes 6
