1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles

Name: 1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-DZJS-1500
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-DZJS-1500
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Welding Materials:

Steel / Stainless Steel / Aluminium

Collimation Focal Length:

60mm

Laser Power:

1500W

Focusing Focal Length:

150mm

Electrical Input Voltage:

220v 50Hz / 60Hz

Welding Beam Size:

0-5mm Adjustable ( 0-10mm Option )

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Welding Thickness:

4mm Stainless Steel Full Penetration

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Laser Output Mode:

4 Mode ( CW, PWM, QCW, Argon )

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

1500W Handheld Laser Welding Machine

Product Description

Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles Description:

The Handheld Single Wobble Welding Head is an innovative and state - of - the - art welding tool. Following user - centered design concepts, it skillfully meets complex welding needs by carefully considering both the practical aspects of the welding process and the comfort during extended use. It offers a more effective and accurate way to carry out welding projects.

This welding head features a lightweight, compact, and ergonomically - crafted structure, guaranteeing a pleasant and firm hold. It can be easily adjusted to various welding jobs in a broad spectrum of working conditions. Be it large - scale factory production or outdoor on - site repair work, it is well - equipped to deliver excellent results.

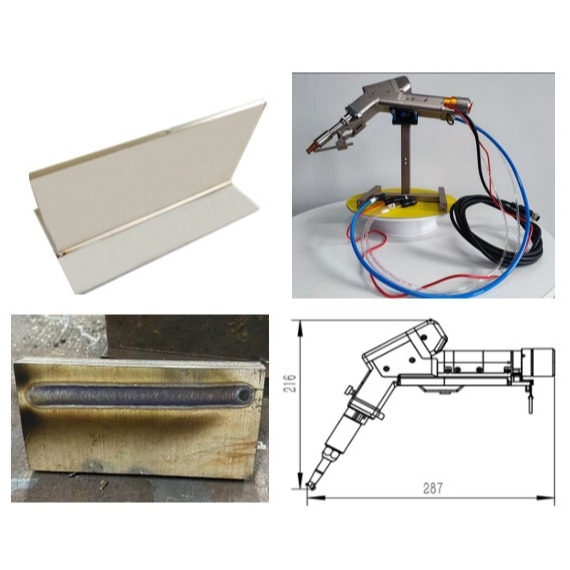

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles 0

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles Features:

Handheld Laser Welding Machine
Product Name: Fiber Laser Welding Head
Handheld Laser Gun Weight: 0.7kg
Positioning: Red Guide Beam
Gas: Argon / Nitrogen
Fiber Connector: QBH
Fiber Cable: 10m Standard. (15 / 20m Option)
Laser Beam Size: 0~5mm Adjustable

The Fibre Laser Welding Head stands as a premium - quality Fibre Laser Apparatus incorporating a QBH fibre coupler, allowing its laser beam diameter to be adjusted within the 0 - 5mm range. It's equipped with a red alignment beam for precision - oriented positioning. This Fiber Optic Laser Welding Attachment is impressively lightweight, weighing a mere 0.7kg, and has been thoughtfully designed with the utmost consideration for end - user comfort.

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	1500W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Fiber Connector	QBH
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Welding Parameter Save	30 kinds of different welding parameter save
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

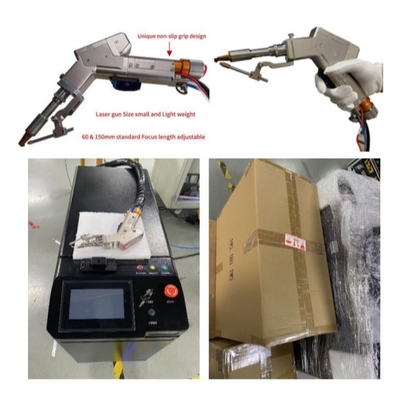

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles 1

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles Application Advantages:

The HanWei HW - DZJS - 1500 handheld welding device demonstrates outstanding performance in a multitude of situations. Its portability offers unmatched convenience for on - site welding operations, making it applicable in nearly every location. The cordless welding feature simplifies the process, facilitating the swift accomplishment of welding jobs. This product holds significant value in the construction, manufacturing, and repair sectors, emerging as an essential tool for those seeking a dependable and efficient welding solution.

The handheld single oscillating welding machine presents an excellent substitute for conventional argon arc welding and electric welding methods when dealing with thin metal sheets like stainless steel, regular steel, and aluminum. The welding gun is light, compact, and designed with ergonomics in mind to ensure a comfortable hold. It comes with a safety lock and a touch - sensitive indicator light. Its user - friendly design imposes minimal demands on the operator. The weld joint is of high quality, the welding speed is rapid, and there are no welding marks or color changes, thereby eliminating the necessity for post - welding grinding. It exhibits strong anti - interference ability and is equipped with an in - house developed control system.

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles Packing:

One Fiber Laser Welding Head
One Wire feeding device
A set of Connection Cables and Line
Seven kinds of nozzles
Two Protective Lens
One Touch Screen Monitor
One Controller
One 15v Power Supply
One Safety Switch Clip
One User Manual

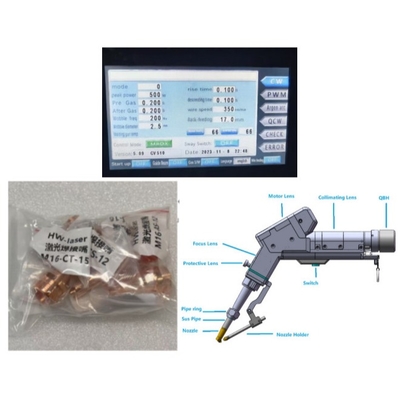

1500W Handheld Single Motor Laser Welding Machine with Seven Kinds of Nozzles 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. offers a wide array of laser equipment, encompassing both desktop and handheld models. These set - ups utilize advanced fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, which are meticulously engineered to fulfill the unique demands of customers. Moreover, they provide tailored solutions for specific applications and offer training and support to help customers maximize the potential of their laser systems. With branches and subsidiaries spread across Europe, North America, Asia, and the Middle East, Hanwei Laser has built a global footprint, catering to clients worldwide.

Hanwei Laser focuses its core business on the domain of laser welding. The company is dedicated to supplying international laser integration enterprises with world - class laser welding technology. It endeavors to provide premier - level welding technology to all integrators. As one of the few global national high - tech niche and emerging enterprises, it specializes in the research, development, production, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
