Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Deep Penetration Wobble Laser Welding Head

300mm Wobble Laser Welding Head

Wobble Laser Welding Head 1000w
Specifications
Electrical Input Voltage: 220v 50Hz / 60Hz Welding Beam Form: —、o、◎、◎、△、8
Laser Power: Up To 2000w Welding Beam Size: 0-5mm Adjustable According To Welding Requirements
Welding Materials: Steel / Stainless Steel / Aluminium Reflective Lens: 60° Reflective & 45° Reflective
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
High Light:

60° Wobble Laser Welding Head

,

Handheld Wobble Laser Welding Head

,

45° Wobble Laser Welding Head
Product Description

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses





Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Description:



The Handheld Double - Motor Welding Head represents a cutting - edge and revolutionary welding apparatus. Embracing a user - centric design philosophy, it deftly meets intricate welding requirements. It takes into meticulous account not only the practical elements of the welding procedure but also the ease of use during long - term operations, thus presenting a more productive and precise approach for welding endeavors.

This welding head is characterized by a lightweight, streamlined, and ergonomically designed framework, ensuring a comfortable and secure grip. It can be effortlessly adjusted to different welding assignments under a wide range of working circumstances. Whether it's large - scale production in industrial plants or outdoor on - site repair work, it is fully capable of delivering outstanding outcomes.

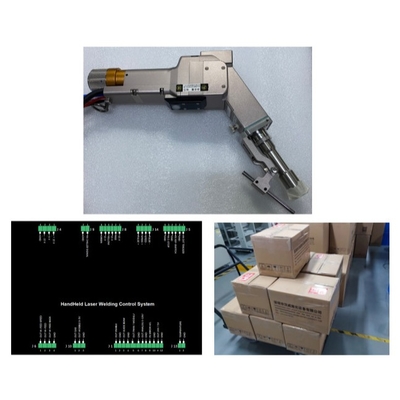

Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses 0

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses  Features:

  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Gun Weight: 0.7kg
  • Reflective Lens: 60° Reflective & 45° Reflective
  • Fiber Connector: QBH
  • Welding Beam Form: —,o,◎,◎,△,8
  • Laser Beam Size: 0~5mm Adjustable
  • Positioning: Red Guide Beam
  • Gas: Argon / Nitrogen



The Fiber Laser Welding Head is a high - quality fiber laser device equipped with a QBH fiber coupler. The diameter of its laser beam can be adjusted within the range of 0 to 5 mm. Additionally, it is provided with a red alignment beam for accurate positioning.

This fiber optic laser welding tip is extremely light. It has been meticulously designed to improve the comfort of the end - user, and it only weighs 0.7 kg in total.



Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Technical Parameters:



Product Name

Handheld Double Wobble Laser Welding Head

Welding Beam Form

—,o,◎,◎,△,8

Welding Power

Up to 2000W

Handheld Laser Gun Weight

0.7kg

Reflective Lens

60° Reflective & 45° Reflective

Welding Beam Size

0-5mm Adjustable

Fiber Connector

QBH

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Adopt Laser Source

1064~1080nm Fiber laser source

Position Guide

Red Guide Light

Welding Parameter Save

30 kinds of different welding parameter save

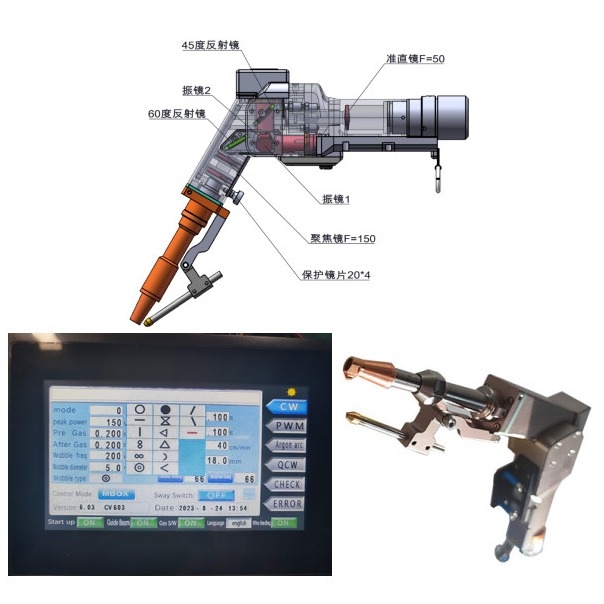

Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses 1



Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Application Advantages:



The HanWei HW - 20 - 60150 handheld welding apparatus, featuring Reflective Lenses of 60° and 45° reflection angles, exhibits extraordinary performance in various scenarios. Its mobility offers unmatched convenience for on - site welding operations, allowing it to be utilized almost anywhere. The wireless welding function simplifies the operating process, facilitating the rapid accomplishment of welding jobs. This product holds great significance in the construction, manufacturing, and repair sectors, emerging as an essential tool for those seeking a dependable and efficient welding solution.

The handheld dual - oscillating welding machine serves as a superb substitute for conventional argon arc welding and electric welding methods when dealing with thin metal sheets like stainless steel, regular steel, and aluminum. The welding head is characterized by a light - weight build, a compact design that conserves space, and an ergonomic arrangement to guarantee a comfortable hold. It is fitted with a safety catch and a touch - sensitive indicator lamp. Its user - friendly design imposes few demands on the operator. The quality of the weld seam is excellent, the welding speed is fast, and there are no welding marks or color changes, thus eliminating the need for post - welding grinding. It shows strong anti - interference ability and is equipped with an in - house developed control system.

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Packing:

  • One User Manual
  • A set of Connection Cables and Line
  • One Wire feeding device
  • One Fiber Laser Welding Head
  • One 15v Power Supply
  • Two Protective Lens
  • One Touch Screen Monitor
  • One Controller
  • Seven kinds of nozzles
  • One Safety Switch Clip

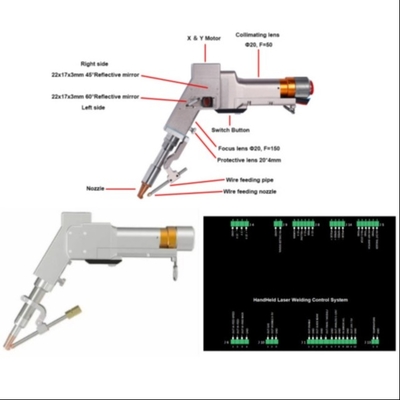

​Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. provides a diverse range of laser set - ups, including both desktop and handheld types. These systems incorporate state - of - the - art fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, carefully meeting the distinct requirements of their customers. Moreover, they offer customized solutions for specific uses and provide training and assistance to enable customers to make full use of the capabilities of their laser systems. With branches and affiliated companies scattered across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the world.

Hanwei Laser centers its core business on the field of laser welding. The firm is committed to offering first - rate laser welding technology to international laser integration enterprises. It strives to provide high - quality welding technology to all integrators. As one of the few global national high - tech specialized and innovative enterprises, it specializes in the research, development, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.

Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses 3Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses 4Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses 5Handheld Double Wobble Laser Welding Head with 60° and 45° Reflective Lenses 6
