1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-QXJ-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

20m Cable Laser Cleaning Head

10m Cable Laser Cleaning Head

Laser Cleaning Head 300mm
Specifications
Adopt Laser Source: 1064~1080nm Fiber Laser Source Laser Power: 1500W
Handheld Laser Gun Weight: 0.7 Kg Cleaning Laser Beam Size: 0-300mm Adjustable
Cleaning Materials: Steel / Stainless Steel Collimation Focal Length: 50mm
Focusing Focal Length: 500mm Laser Output Mode: CW
High Light:

1500W Laser Cleaning Machine

,

Single Motor Laser Cleaning Machine

,

Handheld Laser Cleaning Machine
Product Description

1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode





1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode Description:



The Compact Single - Motor Cleaning Device presents a highly functional cleaning solution. Essentially, it employs a single motor as the power source, driving the internal pump and other components of the cleaning apparatus. This cleaning implement is particularly effective in cleaning materials such as steel and stainless steel. It extracts water from the water supply and increases its pressure. Through the spray gun and other auxiliary parts, a high - pressure water stream is produced to remove dirt from the surfaces of diverse objects.

The cleaning gun is lightweight, small in size, and designed following ergonomic concepts for user - friendly operation. It can effortlessly adjust to a broad spectrum of cleaning tasks under various working conditions. Be it in industrial large - scale production settings or during outdoor on - site repair operations, it yields outstanding results.

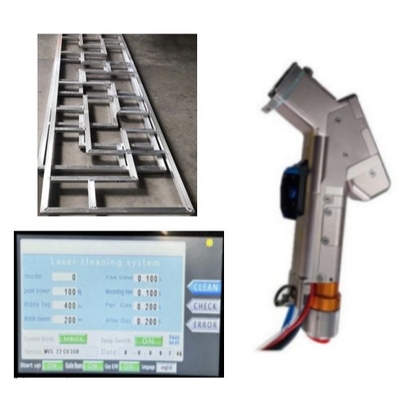

1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode 0

1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode Features:

  • Product Name: Fiber Laser Cleaning Machine
  • Laser Power: 1500W
  • Handheld Laser Gun Weight: 0.7kg
  • Cleaning Laser Beam Form: Line “一”
  • Cleaning Materials: Steel / Stainless Steel
  • Standard Focus length: 50 & 500mm standard Focus length adjustable
  • Wavelength: 1064nm~1080nm
  • Laser Head Connection: QBH
  • Cleaning Laser Beam Size: 0-300mm Adjustable
  • Positioning: Red Guide Beam
  • Gas: Nitrogen / No Gas



The Fiber Laser Cleaning Nozzle, a high - performance Fiber Laser Tool equipped with a QBH fiber interface, showcases remarkable abilities. This Fiber - optic Laser Cleaning Device is not merely light in weight but also highly convenient for users. All in all, it has a weight of only 0.7 kg. The size of its cleaning beam can be regulated within the range of 0 to 300 mm, and a red positioning beam is incorporated to ensure precise placement.



1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode Technical Parameters:



Product Name

Handheld Single Motor Laser Cleaning Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Handheld Laser Gun Weight

0.7 KG

Laser Power

1500W

Laser Output Mode

CW

Red Guide Light

50 & 500mm standard Focus length adjustable

Cleaning Beam Form

Line " 一 "

Fiber Connector

QBH

Fiber Cable

10m Standard. (15 / 20m Option)

Cleaning Beam Size

0-300mm Adjustable

Position Guide

Red Guide Light

Cleaning Parameter Save

10 kinds of different welding parameter save

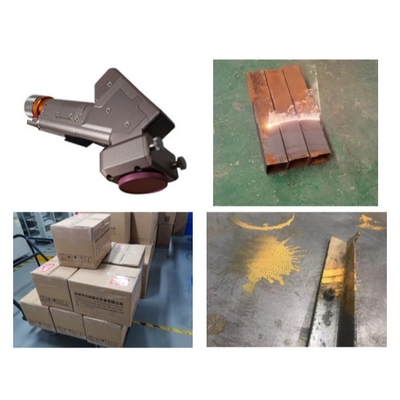

1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode 1



1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode Application Advantages:


The HanWei HW - QXJ - 1500 handheld cleaning apparatus demonstrates outstanding application advantages. It is highly portable. Due to its compact and lightweight design, it can be easily carried and operated, making it particularly appropriate for confined spaces and mobile cleaning tasks. It doesn't require intricate machinery or a large labor force, thereby enhancing operational flexibility.

The handheld single - oscillating cleaning nozzle also shows excellent adaptability. It can skillfully handle a diverse range of surface materials, various object shapes, and different levels of dirt. Whether it's for vehicle cleaning, household cleaning, or industrial equipment maintenance, its performance is reliable. Moreover, it is energy - saving and cost - effective. The single - motor setup conserves energy while providing sufficient cleaning power. It simplifies the cleaning process and cuts down on both time and energy consumption. Thanks to its simple structure, it has lower production and maintenance costs. It is user - friendly, not demanding specialized training, which makes it accessible to all users and minimizes operational errors and training expenses.


1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode Packing:


  • One Handheld Laser Gun
  • A set of Connection Cables and Line
  • One Safety Switch Clip
  • One Controller
  • One Touch Screen Monitor
  • One 15v Power Supply
  • Two Protective Lens
  • One Dust Cover
  • One User Manual

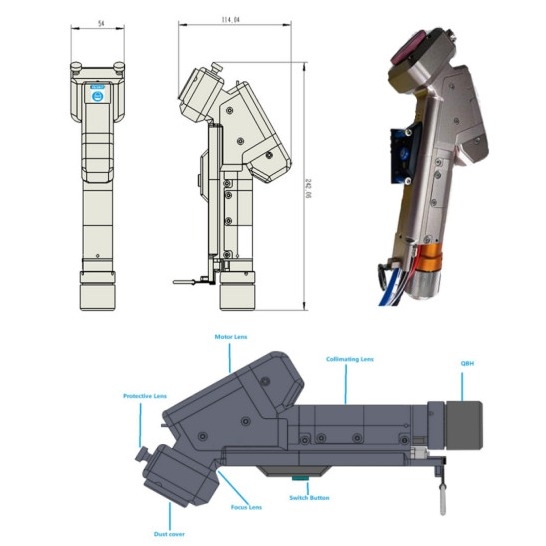

1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to offering all integrators the world - class welding technology across the globe. The company is one of the few in the world that can concentrate intensively on the research, development, production, and promotion of various lasers for welding applications, laser control systems, laser optical components, and laser welding technologies. It is a national high - tech and specialized new enterprise with a complete industrial chain.

Hanwei Laser has successfully developed a series of welding laser products that meet international advanced standards. For instance, the AMB spot - ring spot welding machine has unique technical methods that are not found in other companies globally. Moreover, the "AMB spot - ring spot + blue light composite swing welding machine" not only fills the domestic technological void but also takes the lead in this field worldwide. It effectively overcomes problems such as inconsistent welding quality, rough welding surfaces, and spatter during the laser welding of highly reflective materials like copper and gold. Additionally, the "AMB spot - ring spot + semiconductor composite welding machine" addresses the issues of uneven fusion depth and inconsistent welding speed in the aluminum material welding of power batteries. Besides, the "semiconductor + single - lamp single - rod 600W composite laser welding machine" solves the challenges of low production yields, inferior welding quality, and slow processing speeds in the sealing nail welding of power batteries.



1500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode 31500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode 41500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode 51500W Handheld Single Motor Laser Cleaning Machine with CW Laser Output Mode 6
