2000W Handheld Single Motor Laser Welding Machine With 10m Standard Fiber Cable

Name: 2000W Handheld Single Motor Laser Welding Machine With 10m Standard Fiber Cable
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-DZJS-2000
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-DZJS-2000
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

2000W

Welding Materials:

Steel / Stainless Steel / Aluminium

Electrical Input Voltage:

220v 50Hz / 60Hz

Welding Thickness:

4mm Stainless Steel Full Penetration

Collimation Focal Length:

60mm

Focusing Focal Length:

150mm

Welding Beam Size:

0-5mm Adjustable ( 0-10mm Option )

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Laser Output Mode:

4 Mode ( CW, PWM, QCW, Argon )

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Single Motor Handheld Laser Welding Machine

2000W Handheld Laser Welding Machine

Product Description

2000W Handheld Single Motor Laser Welding Machine with 10m Standard Fiber Cable

2000W Handheld Laser Welding Machine with 10m Standard Fiber Cable Description:

The Portable Single Wobble Welding Head embodies a state - of - the - art and ground - breaking welding tool. Employing user - centered design concepts, it skillfully caters to complex welding demands by carefully considering both the practical aspects of the welding process and the comfort during extended use. It offers a more efficient and accurate operational method for welding projects.

This welding head is marked by a light - weight, compact, and ergonomically engineered structure, guaranteeing a comfortable and firm hold. It can be easily adjusted to various welding tasks in a broad spectrum of working conditions. Whether it's large - scale factory production or outdoor on - site repair operations, it is entirely able to yield excellent results.

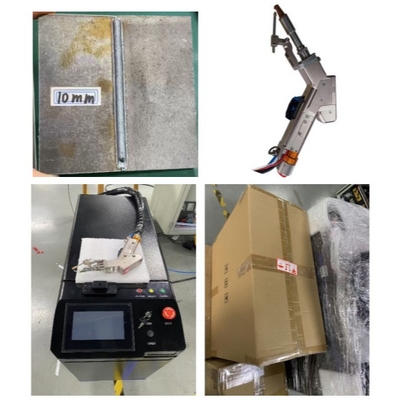

2000W Handheld Single Motor Laser Welding Machine With 10m Standard Fiber Cable 0

2000W Handheld Laser Welding Machine with 10m Standard Fiber Cable Features:

Handheld Laser Welding Machine
Product Name: Fiber Laser Welding Head
Handheld Laser Gun Weight: 0.7kg
Fiber Connector: QBH
Laser Beam Size: 0~5mm Adjustable
Positioning: Red Guide Beam
Fiber Cable: 10m Standard. (15 / 20m Option)
Gas: Argon / Nitrogen

The Fiber Laser Welding Head is a top - notch Fiber Laser Apparatus featuring a QBH fiber coupler. The diameter of its laser beam is adjustable between 0 - 5mm. Additionally, it comes equipped with a red alignment beam to ensure precise positioning. This Fiber Optic Laser Welding Nozzle is of light weight, weighing only 0.7kg in total, and is engineered with great attention to the end - user's comfort.

2000W Handheld Laser Welding Machine with 10m Standard Fiber Cable Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	2000W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

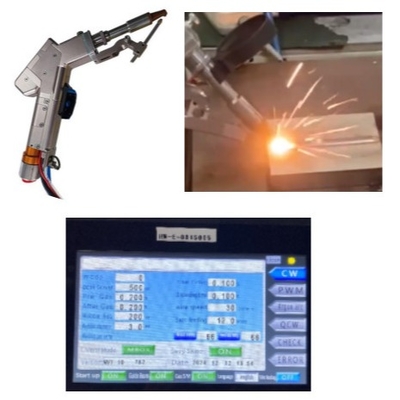

2000W Handheld Single Motor Laser Welding Machine With 10m Standard Fiber Cable 1

2000W Handheld Laser Welding Machine with 10m Standard Fiber Cable Application Advantages:

The HanWei HW - DZJS - 2000 portable welding equipment exhibits outstanding performance in a wide variety of scenarios. Its mobility offers unrivaled convenience for on - site welding operations, making it applicable nearly anywhere. The cordless welding function simplifies the process, facilitating the swift accomplishment of welding assignments. This product holds great significance in the construction, manufacturing, and repair sectors, emerging as an essential tool for those seeking a dependable and efficient welding device.

The handheld single oscillating welding unit serves as an outstanding substitute for traditional argon arc welding and electric welding methods when dealing with thin metal sheets like stainless steel, steel, and aluminum. The welding gun is light - weight, compact, and ergonomically designed to ensure a comfortable hold. It is fitted with a safety lock and a touch - sensitive indicator lamp. Its user - friendly layout imposes minimal demands on the operator. The weld seam is of high - grade quality, the welding speed is rapid, and there are no welding marks or color changes, thereby eliminating the necessity for post - welding polishing. It demonstrates strong anti - interference abilities and is equipped with an in - house developed control system.

2000W Handheld Laser Welding Machine with 10m Standard Fiber Cable Packing:

One Fiber Laser Welding Head
Two Protective Lens
One Controller
One User Manual
One 15v Power Supply
A set of Connection Cables and Line
Seven kinds of nozzles
One Wire feeding device
One Touch Screen Monitor
One Safety Switch Clip

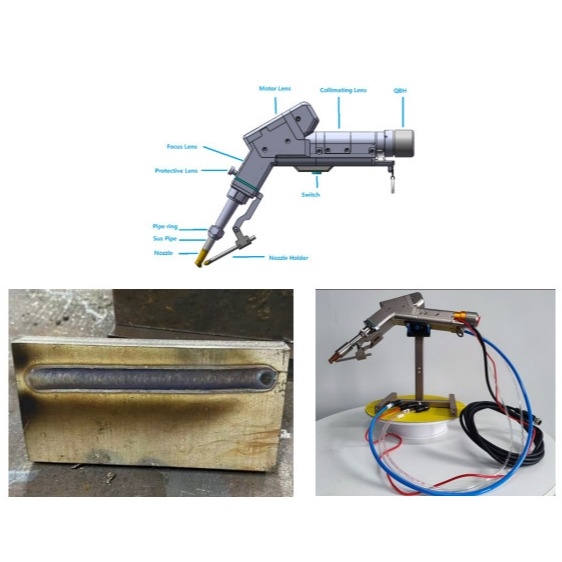

2000W Handheld Single Motor Laser Welding Machine With 10m Standard Fiber Cable 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive array of laser equipment, covering both desktop and handheld models. These configurations integrate cutting - edge fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, meticulously engineered to satisfy the unique demands of customers. Moreover, they supply tailor - made solutions for specific applications and furnish training and support to empower customers to maximize the utilization of their laser systems. Boasting branches and subsidiaries across Europe, North America, Asia, and the Middle East, Hanwei Laser has achieved a global footprint, catering to clients worldwide.

Hanwei Laser focuses its core business on the domain of laser welding. The company is dedicated to providing international laser integration enterprises with world - class laser welding technology. Its objective is to deliver premium - grade welding technology to all integrators. As one of the few global national high - tech specialized and emerging enterprises, it specializes in the research, development, production, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
