Handheld Double Wobble Laser Welding Head with Diverse Welding Beam Patterns

Name: Handheld Double Wobble Laser Welding Head with Diverse Welding Beam Patterns
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-60150
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-20-60150
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

Up To 2000w

Electrical Input Voltage:

220v 50Hz / 60Hz

Welding Beam Form:

—、o、◎、◎、△、8

Welding Materials:

Steel / Stainless Steel / Aluminium

Welding Beam Size:

0-5mm Adjustable According To Welding Requirements

Reflective Lens:

60° Reflective & 45° Reflective

Collimation Focal Length:

60mm

Focusing Focal Length:

150mm

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Double Wobble Laser Welding Head

Handheld Wobble Laser Welding Head

Product Description

Handheld Laser Welding Head with Diverse Welding Beam Patterns

Handheld Laser Welding Head with Diverse Welding Beam Patterns Description:

The Handheld Double Motor Welding Head stands as an advanced and innovative welding device. Adopting user - centered design concepts, it skillfully caters to complex welding demands. It carefully considers not only the practical aspects of the welding process but also the convenience during extended - use operations, thereby offering a more efficient and accurate way of operating for welding projects.

This welding head features a lightweight, sleek, and ergonomically engineered structure, guaranteeing a comfortable and firm hold. It can be easily adapted to various welding tasks across a broad spectrum of working conditions. Be it mass production in factories or outdoor on - site maintenance jobs, it is fully able to achieve remarkable results.

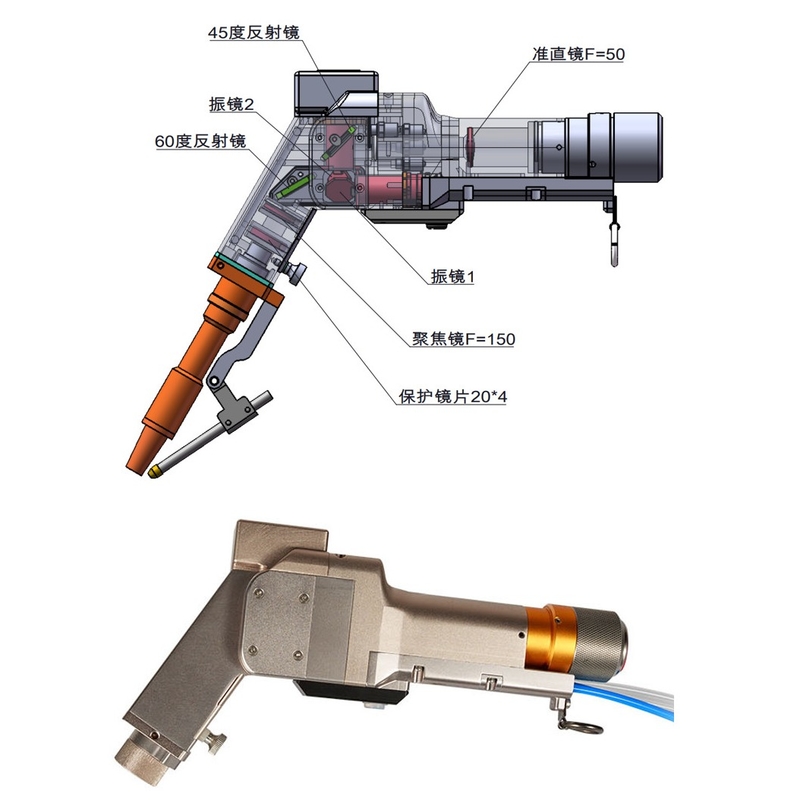

Handheld Double Wobble Laser Welding Head with Diverse Welding Beam Patterns 0

Handheld Laser Welding Head with Diverse Welding Beam Patterns Features:

Product Name: Fiber Laser Welding Head
Handheld Laser Gun Weight: 0.7kg
Fiber Connector: QBH
Welding Beam Form: —,o,◎,◎,△,8
Reflective Lens: 60° Reflective & 45° Reflective
Positioning: Red Guide Beam
Laser Beam Size: 0~5mm Adjustable
Gas: Argon / Nitrogen

The Fibre Laser Welding Head is a top - notch Fibre Laser Equipment furnished with a QBH fibre coupler. The diameter of its laser beam is adjustable from 0 to 5mm. Moreover, it comes with a red alignment beam to ensure precise positioning. This Fiber Optic Laser Welding Tip is incredibly lightweight, crafted with great care to enhance the end - user's comfort, and weighs only 0.7kg in total.

Handheld Laser Welding Head with Diverse Welding Beam Patterns Technical Parameters:

Product Name	Handheld Double Wobble Laser Welding Head
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	Up to 2000W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	—,o,◎,◎,△,8
Welding Beam Size	0-5mm Adjustable
Fiber Connector	QBH
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Reflective Lens	60° Reflective & 45° Reflective
Position Guide	Red Guide Light
Welding Parameter Save	30 kinds of different welding parameter save

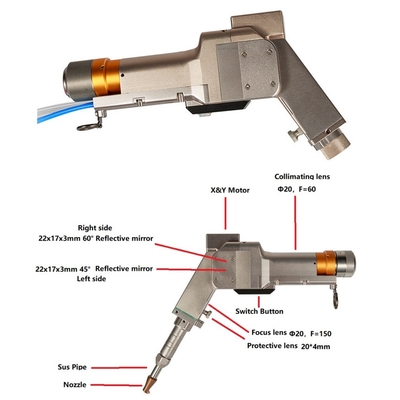

Handheld Double Wobble Laser Welding Head with Diverse Welding Beam Patterns 1

Handheld Laser Welding Head with Diverse Welding Beam Patterns Application Advantages:

The HanWei HW - 20 - 60150 handheld welding apparatus, featuring Reflective Lenses of 60° and 45° reflection angles, exhibits extraordinary performance in various scenarios. Its mobility offers unmatched convenience for on - site welding operations, allowing it to be utilized almost anywhere. The wireless welding function simplifies the operating process, facilitating the rapid accomplishment of welding jobs. This product holds great significance in the construction, manufacturing, and repair sectors, emerging as an essential tool for those seeking a dependable and efficient welding solution.

The handheld dual - oscillating welding machine serves as a superb substitute for conventional argon arc welding and electric welding methods when dealing with thin metal sheets like stainless steel, regular steel, and aluminum. The welding head is characterized by a light - weight build, a compact design that conserves space, and an ergonomic arrangement to guarantee a comfortable hold. It is fitted with a safety catch and a touch - sensitive indicator lamp. Its user - friendly design imposes few demands on the operator. The quality of the weld seam is excellent, the welding speed is fast, and there are no welding marks or color changes, thus eliminating the need for post - welding grinding. It shows strong anti - interference ability and is equipped with an in - house developed control system.

Handheld Laser Welding Head with Diverse Welding Beam Patterns Packing:

One User Manual
One Wire feeding device
One Fiber Laser Welding Head
One 15v Power Supply
Two Protective Lens
A set of Connection Cables and Line
Seven kinds of nozzles
One Controller
One Touch Screen Monitor
One Safety Switch Clip

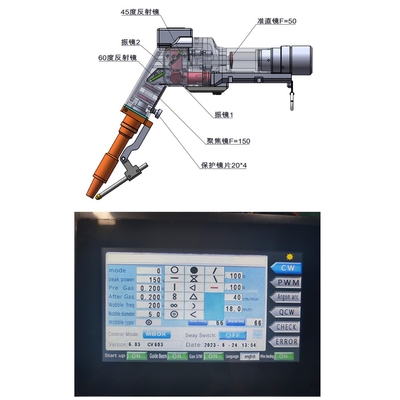

Handheld Double Wobble Laser Welding Head with Diverse Welding Beam Patterns 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. offers a wide array of laser configurations, covering both desktop and handheld models. These systems integrate cutting - edge fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, meticulously catering to the unique needs of their clients. Additionally, they present tailored solutions for specific applications and supply training and support to help customers fully leverage the capabilities of their laser systems. With branches and subsidiaries spread throughout Europe, North America, Asia, and the Middle East, Hanwei Laser has achieved a global footprint, serving clients worldwide.

Hanwei Laser focuses its core business on the laser welding domain. The company is dedicated to providing top - notch laser welding technology to international laser integration enterprises. It endeavors to offer high - quality welding technology to all integrators. As one of the rare global national high - tech specialized emerging enterprises, it specializes in the research, development, manufacturing, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.
