2000W Handheld Double Motor Laser Welding Machine with 60° and 45° Reflective Lens

Name: 2000W Handheld Double Motor Laser Welding Machine with 60° and 45° Reflective Lens
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-60150
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-20-60150
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

Up To 2000w

Welding Beam Form:

—、o、◎、◎、△、8

Welding Materials:

Steel / Stainless Steel / Aluminium

Electrical Input Voltage:

220v 50Hz / 60Hz

Reflective Lens:

60° Reflective & 45° Reflective

Welding Beam Size:

0-5mm Adjustable According To Welding Requirements

Collimation Focal Length:

60mm

Focusing Focal Length:

150mm

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

2000W Handheld Laser Welding Machine

60° Handheld Laser Welding Machine

45° Handheld Laser Welding Machine

Product Description

2000W Handheld Laser Welding Machine with 60° and 45° Reflective Lens

2000W Handheld Laser Welding Machine with 60° and 45° Reflective Lens Description:

The Handheld Double Wobble Welding Head represents a cutting - edge and inventive welding instrument. Incorporating user - oriented design principles, it adeptly addresses intricate welding requirements by meticulously taking into account both the practical elements of the welding procedure and the ease of use during long - term operation. It provides a more productive and precise mode of operation for welding undertakings.

This welding head is characterized by a lightweight, streamlined, and ergonomically designed structure, ensuring a comfortable and secure grip. It can be readily adjusted to different welding tasks under a wide range of working circumstances. Whether it's large - scale production in factories or outdoor on - site maintenance work, it is fully capable of delivering outstanding outcomes.

2000W Handheld Double Motor Laser Welding Machine with 60° and 45° Reflective Lens 0

2000W Handheld Laser Welding Machine with 60° and 45° Reflective Lens Features:

Handheld Laser Welding Machine
Handheld Laser Gun Weight: 0.7kg
Product Name: Fiber Laser Welding Head
Reflective Lens: 60° Reflective & 45° Reflective
Fiber Connector: QBH
Positioning: Red Guide Beam
Laser Beam Size: 0~5mm Adjustable
Gas: Argon / Nitrogen

The Fibre Laser Welding Head is a high - performing Fibre Laser Device equipped with a QBH fibre coupler. The diameter of its laser beam can be adjusted within the range of 0 - 5mm, and it is equipped with a red alignment beam for accurate positioning. This Fiber Optic Laser Welding Tip is lightweight, designed with the utmost consideration for the end - user's comfort, and has an overall weight of merely 0.7kg.

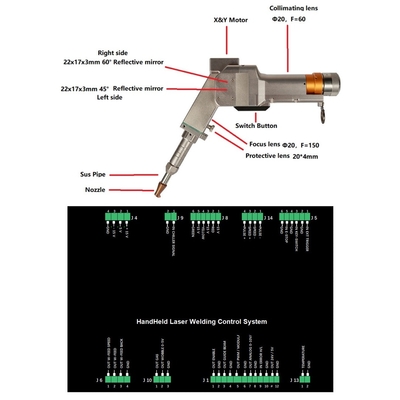

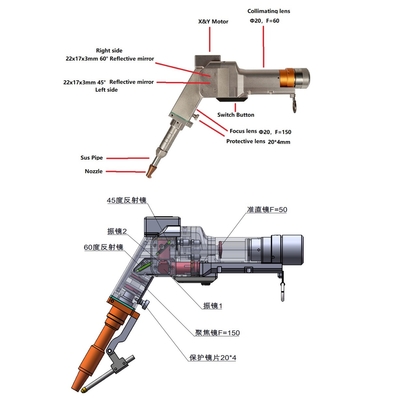

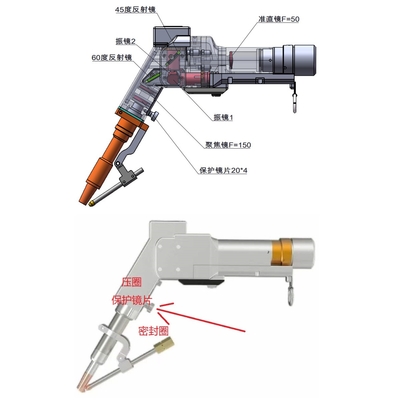

2000W Handheld Laser Welding Machine with 60° and 45° Reflective Lens Technical Parameters:

Product Name	Handheld Double Motor Laser Welding Head
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	Up to 2000W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	—,o,◎,◎,△,8
Welding Beam Size	0-5mm Adjustable
Reflective Lens	60° Reflective & 45° Reflective
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Welding Parameter Save	30 kinds of different welding parameter save

2000W Handheld Double Motor Laser Welding Machine with 60° and 45° Reflective Lens 1

2000W Handheld Laser Welding Machine with 60° and 45° Reflective Lens Application Advantages:

The HanWei HW - 20 - 60150 handheld welding device, with Reflective Lens: 60° Reflective & 45° Reflective, showcases remarkable capabilities in diverse situations. Its portability provides unparalleled convenience for on - site welding, enabling its application in nearly every location. The wireless welding feature streamlines the operation process, accelerating the swift completion of welding tasks. This product is of utmost value in the construction, manufacturing, and repair industries, emerging as an indispensable tool for those in pursuit of a reliable and efficient welding instrument.

The handheld double oscillating welding machine serves as an excellent alternative to traditional argon arc welding and electric welding techniques when handling thin metal sheets such as stainless steel, steel, and aluminum. The welding tip features a lightweight construction, compact design that saves space, and an ergonomic layout to ensure a comfortable grip. It is equipped with a safety latch and a touch - sensitive indicator light. Its user - friendly design places minimal requirements on the operator. The weld seam quality is outstanding, the welding speed is rapid, and there are no welding marks or color alterations, thus eliminating the necessity for post - welding grinding. It demonstrates robust anti - interference capabilities and comes with an in - house developed control system.

2000W Handheld Laser Welding Machine with 60° and 45° Reflective Lens Packing:

One User Manual
One Wire feeding device
One Fiber Laser Welding Head
One 15v Power Supply
Two Protective Lens
A set of Connection Cables and Line
Seven kinds of nozzles
One Controller
One Touch Screen Monitor
One Safety Switch Clip

2000W Handheld Double Motor Laser Welding Machine with 60° and 45° Reflective Lens 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. provides an extensive range of laser setups, including both desktop and handheld types. These systems incorporate state - of - the - art fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies, carefully addressing the distinct requirements of their customers. Moreover, they offer customized solutions for particular applications and furnish training and support to assist customers in maximizing the potential of their laser systems. With branches and subsidiaries distributed across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the globe.

Hanwei Laser centers its core business on the laser welding field. The company is committed to providing world - class laser welding technology to international laser integration enterprises. It strives to offer premium - quality welding technology to all integrators. As one of the scarce global national high - tech specialized emerging enterprises, it specializes in the research, development, manufacturing, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.
