Lightweight and Portable Handheld Single Motor Laser Welding Machine

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: Up To 3000W Welding Materials: Steel / Stainless Steel / Aluminium
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Electrical Input Voltage: 220v 50Hz / 60Hz
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon ) Cooling water: Purified Water
Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option ) Double Route Wire Feeder: Option (Same Time Double Route Feeding)
High Light:

Single Motor Handheld Laser Welding Machine

,

Portable Handheld Laser Welding Machine

,

Lightweight Handheld Laser Welding Machine
Product Description

Lightweight and Portable Handheld Single Motor Laser Welding Machine





Lightweight and Portable Handheld Laser Welding Machine Description:



The Handheld Single Wobble Welding Head constitutes a remarkable advancement in welding technology, especially when it comes to the welding of steel, stainless steel, and aluminum. This state-of-the-art apparatus is furnished with four laser output modalities: CW, PWM, QCW, and Argon.

The CW mode provides a continual and steady laser emission, which is indispensable for fabricating accurate and dependable welds on steel, stainless steel, and aluminum. It guarantees a flawless welding operation, presenting a constant energy stream for the best possible outcomes. The PWM mode, featuring adjustable pulse width modulation, permits the meticulous adjustment of weld attributes to fulfill the particular prerequisites of these three metals, irrespective of their varying thicknesses. The QCW mode combines high peak power with a reasonable average power, rendering it extremely efficient in managing diverse welding tasks on steel, stainless steel, and aluminum, ranging from thin aluminum foils to thick steel and stainless steel components, while diminishing heat-affected zones. The Argon mode, devised to function in conjunction with argon gas, is vital for attaining top-notch welds on stainless steel and aluminum, curtailing oxidation and impurities and augmenting the aesthetic appeal of the welds.

In the process of welding steel, stainless steel, and aluminum, this welding head distinguishes itself. It generates neat, precise, and robust weld seams with negligible spatter and distortion. The welding arc is steady, facilitating smooth and uninterrupted welding. Whether handling slender or thick portions of these materials, it accomplishes outstanding fusion, guaranteeing the sturdiness and soundness of the welded joints. Consequently, it can readily satisfy the stringent quality requirements of a broad spectrum of welding undertakings, from assembling fragile aluminum electronic constituents to fabricating heavy-duty steel and stainless steel industrial frameworks.


Lightweight and Portable Handheld Single Motor Laser Welding Machine 0

Lightweight and Portable Handheld Laser Welding Machine Features:

  • Product Name: Fiber Laser Welding Gun
  • Handheld Laser Gun Weight: 0.7kg
  • Laser Power: Up to 3000w
  • Welding Materials: Steel / Stainless Steel / Aluminium
  • Welding Beam Form: Line “一”
  • Laser Beam Size: 0~5mm Adjustable
  • Positioning: Red Guide Beam
  • Handheld Laser Gun Materials: Aluminium alloy & Stainless Steel
  • Fiber Connector: QBH
  • Cooling method: Water Cooling

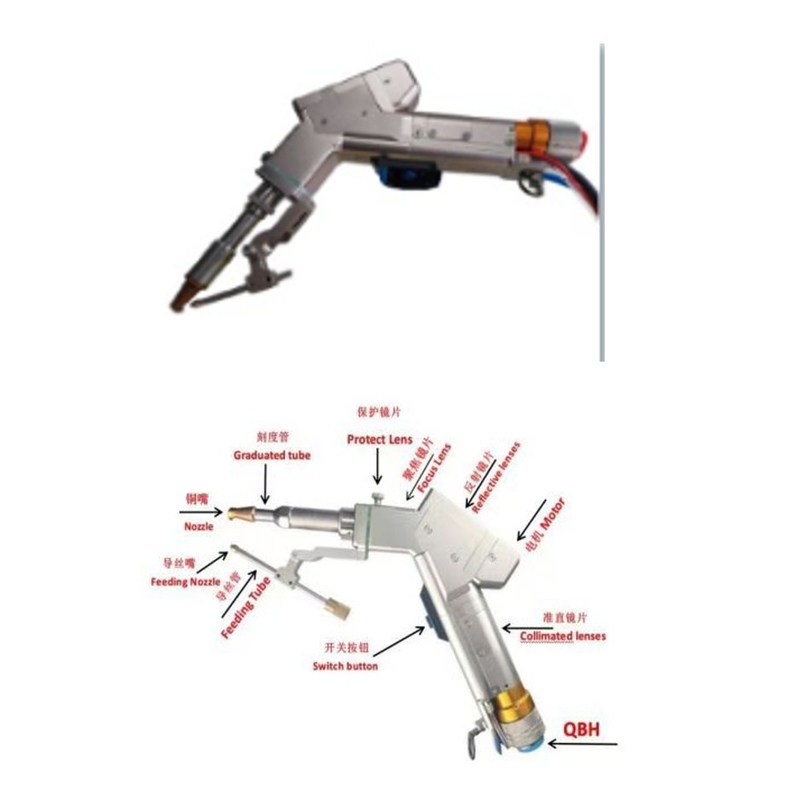

The Fiber Laser Welding Head, which serves as a crucial element within the handheld single wobble welding setup, comes in the form of a high-power Fiber Laser Gun integrated with a QBH fiber connector. The dimension of the laser beam can be modulated within the range of 0 to 5mm, and it is complemented by a red pilot beam for precise alignment. With a weight of just 0.7kg, it offers outstanding convenience and remarkable portability. The handheld single wobble configuration bestows upon it extraordinary versatility, allowing it to smoothly handle various welding angles and complex procedures. Its human-centered design further augments the operator's ease and comfort during extended periods of use.

Boasting an ergonomic layout, it not only meets sophisticated welding requirements but also balances the welding functionality and the comfort level during prolonged utilization. Its lightweight and compact architecture guarantees a cozy grip and can readily adapt to diverse welding assignments in assorted work scenarios, whether it's large-scale production in industrial plants or outdoor on-site repair and maintenance work. Hence, it stands as an optimal selection for both refined and demanding welding operations.


Lightweight and Portable Handheld Laser Welding Machine Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Welding Power

Up to 3000W

Welding Beam Size

0-5mm Adjustable ( 0-10mm option )

Feeding Wires

Standard type : 0.8&1.0&1.2&1.6mm wire ( Option: 2mm wire )

Double Route Wire Feeder

Option ( Same time double route feeding )

Welding Beam Form

Line " 一 "

Fiber Connector

QBH

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Handheld Laser Gun Weight

0.7kg

Welding Parameter Save

30 kinds of different welding parameter save

Gas

Argon / Nitrogen



Lightweight and Portable Handheld Single Motor Laser Welding Machine 1





Lightweight and Portable Handheld Laser Welding Machine Application Advantages:



The HanWei HW-20-60150 handheld welding apparatus, driven by CW, PWM, QCW, and Argon laser modalities, ushers in a new level of welding expertise.

CW emits a steady laser, generating highly accurate and stable welds that are essential for delicate operations. The adjustable pulse width modulation of PWM allows for easy adaptation to various metal thicknesses and complex structures. QCW, by combining high peak and moderate average power, efficiently handles everything from thin foils to thick slabs. The Argon mode takes advantage of argon's inert characteristics to reduce oxidation, resulting in flawless and durable welds.

This machine's portability offers on-site convenience, and its wireless feature boosts productivity, making it a fundamental tool in construction, manufacturing, and repair projects.

The handheld single wobble variant, enhanced by these modes, surpasses traditional welding methods when dealing with thin metals like stainless steel, steel, and aluminum. Its ergonomically designed, lightweight welding head ensures a comfortable and secure grip. Equipped with a safety latch and touch-out light, it is both user-friendly and safe, even for beginners. It quickly produces top-notch welds without flaws or discoloration, and its anti-interference and self-developed control system ensure reliable operation across a wide range of applications, from electronics to heavy industry sectors.

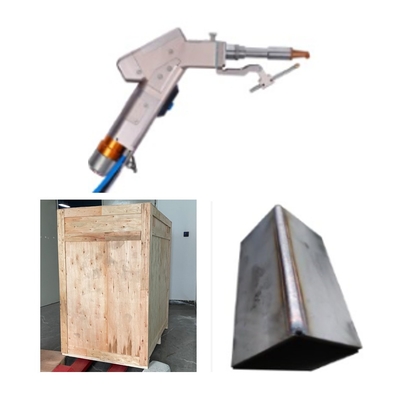

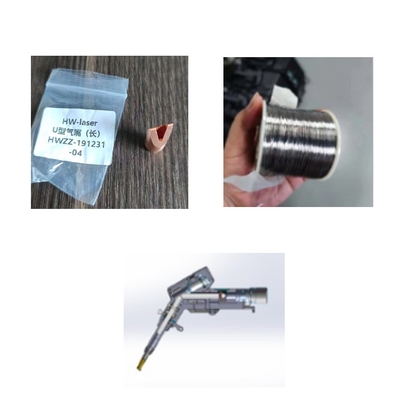

Lightweight and Portable Handheld Laser Welding Machine Packing:

  • One User Manual
  • One Safety Switch Clip
  • One Fiber Laser Welding Head​
  • One Controller
  • Two Protective Lens
  • One 15v Power Supply
  • One Touch Screen Monitor
  • A set of Connection Cables and Line
  • Seven kinds of nozzles
  • One Wire feeding device



Lightweight and Portable Handheld Single Motor Laser Welding Machine 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. has successfully developed a series of welding laser products that meet international advanced standards. For example, the AMB spot ring spot welding machine has a technical solution that is unparalleled among global enterprises. The 'AMB spot ring spot + blue light composite swing welding machine' not only fills the domestic gap but also leads the world. It addresses the problems of inconsistent laser welding, rough welding surfaces, and spattering when processing highly resistant materials like copper and gold. The 'AMB spot ring spot + semiconductor composite welding machine' solves the challenges of welding speed and the uniformity of fusion depth for aluminum materials in power batteries. The'semiconductor + single lamp single rod 600W composite laser welding machine' overcomes the difficulties of low productivity, poor welding quality, and slow processing speed in power battery sealing nail welding.





Hanwei Laser's products have extensive applications in various fields such as new energy batteries, automotive, automotive parts, electronic circuits, fiber optic communication equipment, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments, medical devices, solar energy, the eyewear industry, and the motor industry. In many of these industries, a large number of products exhibit an unmatched welding performance.


Lightweight and Portable Handheld Single Motor Laser Welding Machine 3Lightweight and Portable Handheld Single Motor Laser Welding Machine 4Lightweight and Portable Handheld Single Motor Laser Welding Machine 5Lightweight and Portable Handheld Single Motor Laser Welding Machine 6
