1500W Handheld Single Motor Cleaning Machine with Water Cooling Method

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-QXJ-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

20m Cable Laser Cleaning Head

10m Cable Laser Cleaning Head

Laser Cleaning Head 300mm
Specifications
Cleaning Materials: Steel / Stainless Steel Laser Power: 1500W
Handheld Laser Gun Weight: 0.7 Kg Cleaning Laser Beam Size: 0-300mm Adjustable
Handheld Laser Gun Materials: Aluminium Alloy & Stainless Steel Adopt Laser Source: 1064~1080nm Fiber Laser Source
Laser Output Mode: CW Collimation Focal Length: 50mm
Focusing Focal Length: 500mm CLeaning Parameter Input: Touch Screen Monitor
High Light:

Single Motor Handheld Cleaning Machine

,

1500W Handheld Cleaning Machine

,

Water Cooling Handheld Cleaning Machine
Product Description

Handheld Single Motor Cleaning Machine with Water Cooling Method





Handheld Single Motor Cleaning Machine with Water Cooling Method Description:



The Handheld Single Motor Cleaning Machine, equipped with an advanced water-cooling function, emerges as an extremely user-friendly and technologically advanced cleaning solution. It predominantly relies on a single, powerful motor as the driving force, which not only energizes the internal pump but also other integral constituents of the cleaning device. This apparatus exhibits remarkable proficiency in cleansing materials like steel and stainless steel. It draws water from the water source and escalates the pressure to a significant level. Through the spray gun and other attachments, a forceful high-pressure water jet is generated, effectively eliminating the dirt and contaminants on the surfaces of a wide variety of objects.

The incorporated water-cooling system plays a crucial role in maintaining the optimal operating temperature of the machine. By continuously circulating cooling water, it dissipates the heat generated during the high-intensity cleaning process, ensuring the long-term stability and durability of the equipment. This feature is especially beneficial when the machine is used for extended periods or in demanding cleaning tasks.

One of the standout features is the incorporation of a Touch Screen Digital Parameter Setting Monitor. This intuitive interface allows users to precisely adjust and monitor crucial cleaning parameters with ease. It empowers operators to customize the cleaning process according to specific requirements, enhancing both efficiency and accuracy.

The cleaning nozzle, being lightweight and compact in size, is ergonomically designed to offer a pleasant and convenient grip. It can seamlessly adapt to an extensive range of cleaning operations across diverse working scenarios. Whether in the hustle and bustle of industrial mass production environments or during the challenges of outdoor on-site maintenance work, it consistently achieves remarkable and reliable outcomes, making it an indispensable tool for any cleaning task.

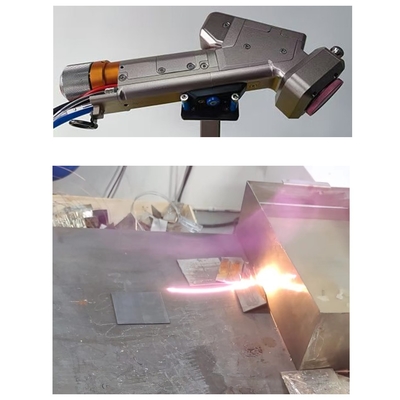

1500W Handheld Single Motor Cleaning Machine with Water Cooling Method 0

Handheld Single Motor  Cleaning Machine with Water Cooling Method  Features:

  • Product Name: Fiber Laser Cleaning Head
  • Handheld Laser Gun Weight: 0.7kg
  • Wavelength: 1064nm~1080nm
  • Cleaning Laser Beam Size: 0-300mm Adjustable
  • Cleaning Materials: Steel / Stainless Steel
  • Laser Head Connection: QBH
  • CLeaning Parameter Input: Touch Screen Monitor
  • Positioning: Red Guide Beam
  • Cleaning Laser Beam Form: Line “一”
  • Cooling method: Water Cooling
  • Standard Focus length: 50 and 500mm standard Focus length adjustable
  • Gas: Nitrogen / No Gas



The Fibre Laser Cleaning Head, representing the pinnacle of modern cleaning technology, is essentially a high-power Fibre Laser Gun equipped with a state-of-the-art QBH fibre connector. This unique combination endows it with remarkably outstanding capabilities. The cleaning beam size, a crucial factor in its effectiveness, can be adjusted within a wide range spanning from 0 to 300mm. Such flexibility enables it to handle a diverse variety of cleaning tasks with accuracy and proficiency. Additionally, a red guiding beam has been ingeniously incorporated into its design. This serves as an invaluable aid for achieving precise positioning, ensuring that the cleaning operation is not only effective but also highly accurate. What sets this Fiber Optic Laser Cleaning Nozzle even further apart is its superior ergonomic qualities. It is not only extremely lightweight, which considerably simplifies handling and movement during use, but also highly user-friendly. With a total weight of just 0.7kg, it achieves an ideal balance between power and portability, making it a top choice for numerous industrial and professional cleaning projects.


Handheld Single Motor Cleaning Machine with Water Cooling Method Technical Parameters:



Product Name

Handheld Single Motor Laser Cleaning Head

Handheld Laser Gun Weight

0.7Kg

Laser Power

1500W

Adopt Laser Source

1064~1080nm Fiber laser source

Standard Focus length

50 & 500mm standard Focus length adjustable

Fiber Connector

QBH

Cleaning Beam Size

0-300mm Adjustable

Cooling Method

Water Cooling

Laser Output Mode

CW

CLeaning Beam Form

Line " 一 "

Cleaning Parameter Save

10 kinds of different welding parameter save

Fiber Cable

10m Standard (15 / 20m Option)

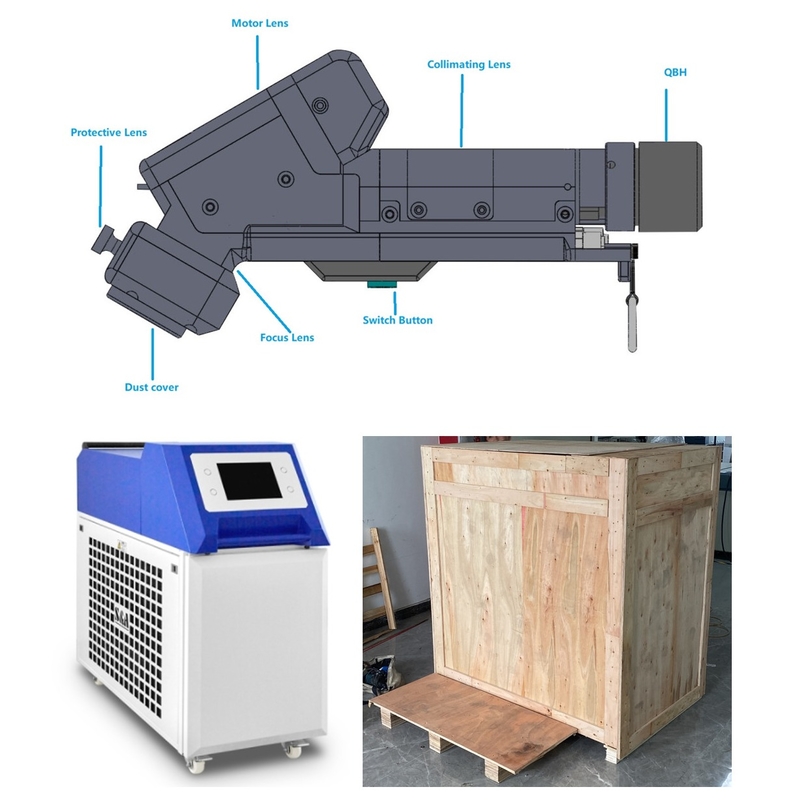

1500W Handheld Single Motor Cleaning Machine with Water Cooling Method 1



Handheld Single Motor Cleaning Machine with Water Cooling Method Application Advantages:


The HanWei HW - QXJ - 1500 handheld cleaning machine exhibits extraordinary application merits. It is highly convenient for transportation. Owing to its compact and lightweight design, it can be effortlessly carried and maneuvered, being ideally suited for cramped areas and mobile cleaning operations. It does not necessitate elaborate apparatus or a substantial workforce, augmenting work flexibility.

The handheld single oscillating cleaning head also showcases outstanding compatibility. It can adeptly manage a broad spectrum of surface materials, diverse object shapes, and varying degrees of dirt. Whether in vehicle cleaning, domestic cleaning, or industrial equipment maintenance, it functions dependably. Additionally, it is energy-efficient and economical. The single-motor configuration conserves energy while furnishing adequate cleaning power. It streamlines the cleaning procedure and diminishes both time and energy expenditure. Due to its uncomplicated structure, it has reduced manufacturing and upkeep costs. It is user-oriented, not requiring specialized instruction, making it available to all users and curtailing operational mistakes and training outlays.



Handheld Single Motor Cleaning Machine with Water Cooling Method Packing:


  • One Touch Screen Monitor
  • One User Manual
  • One Handheld Laser Gun
  • One Safety Switch Clip
  • One Controller
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One 15v Power Supply
  • One Dust Cover

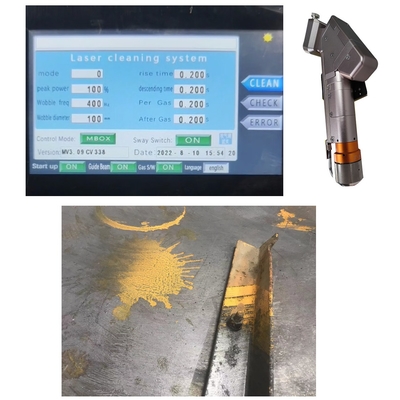

1500W Handheld Single Motor Cleaning Machine with Water Cooling Method 2

​

Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. distinguishes itself as one of the few global enterprises possessing the ability and concentration on the comprehensive industrial chain encompassing the research, development, production, and marketing of various lasers, laser control systems, laser optical systems, and laser welding techniques. It holds the title of a national high-tech and "specialized, sophisticated, unique, and innovative" enterprise. Hanwei persists in the continual R&D of laser welding products. In each phase, from component sourcing, R&D and manufacturing, assembly and inspection to sales and after-sales support, it unfailingly provides integrators with cutting-edge welding products and technical services that are at the vanguard of the international level.

Hanwei Laser has assembled a significant number of outstanding individuals from across the nation. It prides itself on a team of technical specialists committed to laser welding and advancement over an extended period. Their proficiency is especially notable in the design domains of lasers, laser systems, laser power supplies, laser control, and laser optical systems, as well as in welding process exploration, where they have accumulated substantial theoretical understanding and practical know-how. Its products find extensive applications in a multitude of sectors such as new energy batteries, automobiles, automotive components, electronic circuits, fiber-optic communication devices, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments and meters, gold and silver ornaments, medical devices, solar energy, the eyewear industry, and the motor industry. Many products exhibit unrivaled welding performance in a plethora of industries.

1500W Handheld Single Motor Cleaning Machine with Water Cooling Method 31500W Handheld Single Motor Cleaning Machine with Water Cooling Method 41500W Handheld Single Motor Cleaning Machine with Water Cooling Method 51500W Handheld Single Motor Cleaning Machine with Water Cooling Method 6
