3 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-2000
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Stainless Steel Laser Welding Machine

3-in-1 Laser Welding Machine

Aluminium Alloy Laser Welding Machine
Specifications
Handheld Laser Gun Weight: 0.7 Kg Laser Power: 2000W
Handheld Laser Gun Materials: Aluminium Alloy And Stainless Steel Welding Laser Beam Size: 0-5mm Adjustable
Cleaning Laser Beam Size: 0-50mm Adjustable Welding Materials: Steel / Stainless Steel / Aluminium
Wire Feeding Device: Standard Type : 0.8&1.0&1.2&1.6mm Wire Double Route Wire Feeder: Option ( Same Time Double Route Feeding )
Welding parameter storage: 30 Kinds Of Different Welding Parameter Save
High Light:

5mm Welding Laser Machine

,

3 in 1 handheld laser welding machine

,

10mm Cleaning Laser Machine
Product Description

Handheld 3-in-1 Machine with 0-5mm Welding Laser and 0-10mm Cleaning Laser Beam Size





Handheld 3-in-1 Machine with 0-5mm Welding Laser and 0-10mm Cleaning Laser Beam Size Description:



The Handheld 3-in-1 Appliance stands as a notable breakthrough in the portable multi-functional tool realm. Powered by a single yet forceful motor, this diminutive device combines the might of welding, the accuracy of slicing, and the comprehensiveness of purging, all housed within an ergonomically contoured and streamlined handheld enclosure.

In the welding sphere, it shrewdly regulates the electrical current and voltage to generate a steady and dependable arc, thus guaranteeing sturdy and precise welds on a multiplicity of steel, stainless steel, and aluminum workpieces. During the cutting process, a highly concentrated and potent beam cleaves through different thicknesses of materials with adjustable velocity and depth parameters, producing neat and accurate divisions. For the purging function, it draws in suitable cleaning fluids or water and converts them into a forceful, adjustable high-pressure spray through a pliable nozzle, efficiently eliminating rust, grease, and other contaminants. This handheld three-in-one machine exhibits unparalleled versatility and proves useful in a host of scenarios like busy workshops, vast construction yards, and rigorous industrial upkeep tasks, perpetually furnishing excellent performance in each of its welding, cutting, and purging faculties.

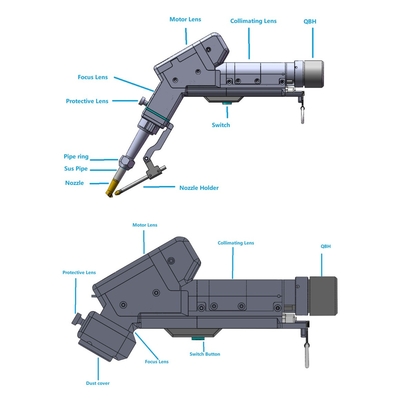

3 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes 0

Handheld 3-in-1 Machine with 0-5mm Welding Laser and 0-10mm Cleaning Laser Beam Size Features:

  • Product Name: Fiber Laser 3-in-1 Machine
  • Welding Laser Beam Size: 0-5mm Adjustable
  • Cleaning Laser Beam Size: 0-50mm Adjustable
  • Handheld Laser Gun Weight: 0.7kg
  • Welding Materials: Steel / Stainless Steel / Aluminum
  • Laser Beam Form: Line “一”
  • Laser Head Connection: QBH
  • Standard Focus length: 60 and 150mm standard Focus length adjustable
  • Laser Power: 2000W
  • Cooling method: Water Cooling
  • Gas: Argon / Nitrogen



The Handheld 3-in-1 Device surfaces as an outstanding substitute for metal processing, machinery refurbishment, and surface preparation in workshops and production plants. Its laser power is 2000W, empowering it to deal with steel, stainless steel, and aluminum materials. The laser emission takes a linear form and is connected via QBH, with argon or nitrogen gas being essential. The 0.7 - kilogram handheld laser tool is outfitted with an adjustable standard focal length spanning from 60 to 150mm. Notably, it offers adjustable laser beam widths with the distinctive feature of a welding beam width adjustable precisely from 0 to 5mm and a cleaning beam width from 0 to 10mm. This machine employs a Water Cooling system to ensure efficient heat dissipation during operation, thereby maintaining its stable functionality and prolonging its service life.


Handheld 3-in-1 Machine with 0-5mm Welding Laser and 0-10mm Cleaning Laser Beam Size Technical Parameters:



Product Name

Handheld Single Motor 3-in-1 Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Laser Power

2000W

Handheld Laser Gun Weight

0.7 KG

Standard Focus length

60 and 150mm standard Focus length adjustable

Laser Head Connection

QBH

Laser Beam Form

Line " 一 "

Wire Feeding Device

Standard type : 0.8&1.0&1.2&1.6mm wire

Double Route Wire Feeder

Option (Same time double route feeding)

Welding Laser Beam Size

0-5mm Adjustable

Cleaning Laser Beam Size

0-50mm Adjustable

Welding Parameter Input

Touch Screen Monitor

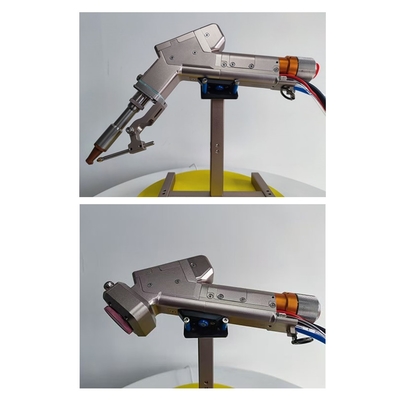

3 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes 1



Handheld 3-in-1 Machine with 0-5mm Welding Laser and 0-10mm Cleaning Laser Beam Size Application Advantages:


The HanWei HW-DZJS-2000 Handheld Tri-functional Machine demonstrates extraordinary application potentials. Its highly appealing portability derives from its compact and light-weighted design, rendering it extremely suitable for narrow and restricted areas as well as on-the-go applications. This augments operational adaptability without the requirement of elaborate machinery or a substantial labor team.

This equipment amalgamates the capabilities of welding, cutting, and cleaning. In the aspect of welding, it exhibits a high level of proficiency in fusing steel, stainless steel, and aluminum. The welding beam, which can be adjusted within the scope of 0 - 5mm, is capable of satisfying a wide array of welding needs. When it comes to the cutting function, the laser beam is proficient in dissecting materials with adjustable cutting velocity and depth. In the cleaning function, with a power of 2000W, the 0 - 50mm adjustable beam is highly effective in cleansing a diverse range of surfaces and is applicable in automotive, household, and industrial equipment cleansing.

It is energy-efficient and cost-efficient. The single-motor arrangement conserves energy, simplifies work procedures, and curtails both time and energy expenditures. Its uncomplicated structure gives rise to decreases in manufacturing and maintenance costs. It is also user-convenient, as it does not necessitate professional training, is available to a wide spectrum of users, and helps to reduce mistakes and training-associated costs.



Handheld 3-in-1 Machine with 0-5mm Welding Laser and 0-10mm Cleaning Laser Beam Size Packing:


  • One Touch Screen Monitor
  • One Focus Lens for cleaning
  • One Handheld Laser Head
  • One Wire feeding device
  • One Controller
  • One 15v Power Supply
  • Seven kinds of nozzles
  • One Safety Switch Clip
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One User Manual



3 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. is dedicated to equipping all global integrators with outstanding welding technologies. As a national high-tech and newly-designated specialized enterprise, it centers on the R&D, manufacturing, and marketing of the comprehensive industrial chain encompassing welding lasers, laser control systems, laser optical systems, and laser welding processes. The company's product portfolio consists of nine main series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine, Blue Light Welding Machine, and their associated accessory products.



Hanwei Laser adheres to the business principle of "emphasizing R&D, supported by technology, and safeguarded by service" to serve B-end customers. It has a competent team with in-depth expertise and abundant experience in laser welding and related fields. The products find wide-ranging applications in diverse industries including new energy batteries, automotive, electronics, and household appliances, demonstrating unique welding capabilities. Notably, the company has achieved remarkable technological progress. The AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine represents a globally-leading innovation, overcoming the challenges in welding highly reflective materials. Other models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and the Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have also effectively tackled specific welding issues in the power battery sector.



3 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes 33 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes 43 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes 53 in 1 handheld laser welding machine with 0 - 5mm Welding Laser and 0 - 10mm Cleaning Laser Beam Sizes 6
