Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: 1500W Electrical Input Voltage: 220v 50Hz / 60Hz
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Welding Materials: Steel / Stainless Steel / Aluminium
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option ) Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon )
Welding Thickness: 4mm Stainless Steel Full Penetration Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save
High Light:

Fiber Handheld Laser Welding Machine

,

Single Motor Handheld Laser Welding Machine

,

220v Handheld Laser Welding Machine
Product Description

With Wind Cooling Method for Fiber Handheld Welding Machine





With Wind Cooling Method for Handheld Laser Welding Machine Description:



The Handheld Single Wobble Welding Head represents a cutting-edge welding implement. Incorporating human-centered design principles, it adeptly addresses intricate welding requirements by meticulously factoring in the practicality of the welding operation and the convenience during prolonged utilization. It presents a more proficient and precise operational approach for welding endeavors.

The welding head is characterized by its featherweight, space-efficient, and ergonomically crafted construction, ensuring a pleasant and snug grip. It can be effortlessly adjusted to diverse welding assignments within a wide range of working scenarios. Be it high-volume manufacturing within industrial facilities or exterior on-site maintenance undertakings, it is capable of attaining satisfactory outcomes.


Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag 0

With Wind Cooling Method for Handheld Laser Welding Machine Features:

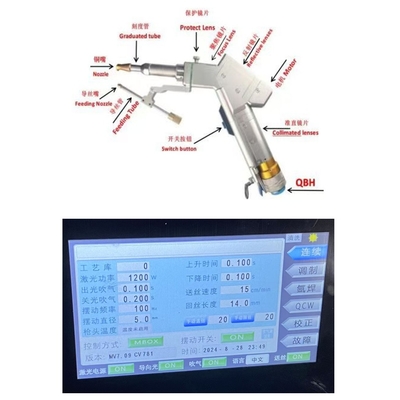

  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Welding Machine
  • Handheld Laser Gun Weight: 0.7kg
  • Fiber Connector: QBH
  • Laser Beam Size: 0~5mm Adjustable
  • Positioning: Red Guide Beam
  • Gas: Argon / Nitrogen
  • Fiber Cable: 10m Standard. (15 / 20m Option)

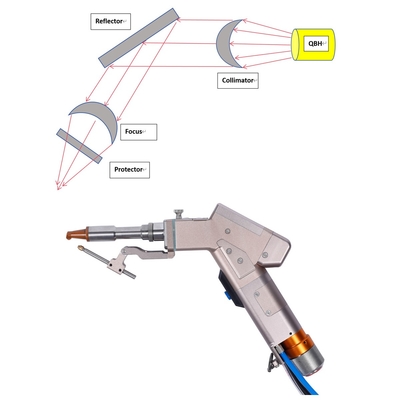

The Fibre Laser Welding Head is a high-powered Fibre Laser Gun furnished with a QBH fibre connector. The magnitude of its laser beam is adjustable within the range of 0 - 5mm, and it is equipped with a red guiding beam for positioning purposes. This Fiber Optic Laser Welding Nozzle is lightweight and designed with user convenience in mind, having a total weight of merely 0.7kg.


With Wind Cooling Method for Handheld Laser Welding Machine Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Welding Power

1500W

Adopt Laser Source

1064~1080nm Fiber laser source

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Position Guide

Red Guide Light

Cooling method in Winter

Add Antifreeze

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Welding Beam Size

0-5mm Adjustable

Welding Parameter Save

30 kinds of different welding parameter save



Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag 1



With Wind Cooling Method for Handheld Laser Welding Machine Application Advantages:



The HanWei HW-DZJS-1500 handheld welding machine exhibits outstanding performance in diverse situations. Its portability endows it with remarkable convenience for on-site welding, enabling its application in any location. The wireless welding function streamlines the process, facilitating the swift completion of welding tasks. This product proves highly valuable in construction, manufacturing, and repair fields, serving as an indispensable asset for those in need of a reliable and efficient welding apparatus.

The handheld single oscillating welding machine constitutes an excellent alternative to conventional argon arc welding and electric welding when handling thin metal plates such as stainless steel, steel, and aluminium. The welding head is lightweight, compact, and ergonomically engineered to ensure a comfortable grasping experience. It features a safety lock accompanied by a touch-activated indicator light. Its user-friendly nature imposes minimal requirements on the operator. The welding seam is of high quality, the welding speed is rapid, and there are no welding traces, no color alterations, and no necessity for subsequent grinding. It possesses robust anti-interference capabilities and is equipped with a self-developed control system.

With Wind Cooling Method for Handheld Laser Welding Machine Packing:

  • One Wire feeding device
  • One Fiber Laser Welding Head
  • A set of Connection Cables and Line
  • One 15v Power Supply
  • Two Protective Lens
  • Seven kinds of nozzles
  • One Controller
  • One Touch Screen Monitor
  • One Safety Switch Clip
  • One User Manual



​Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. presents a diverse selection of laser systems, encompassing desktop and handheld variants. These systems incorporate state-of-the-art fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies to precisely fulfill the specific requirements of their clientele. Additionally, they furnish customized solutions for particular applications and deliver training and assistance to enable customers to maximize the potential of their laser systems. With branches and distributors spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a worldwide presence, serving customers across the globe.

Hanwei Laser centers its efforts on the laser welding sector. The firm is committed to providing world-class laser welding technology to international laser integration enterprises. It strives to offer superior welding technology to all integrators. As one of the scarce national high-tech professional emerging enterprises on a global scale, it specializes in the research and development, manufacturing, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding procedures throughout the industrial chain.


Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag 3Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag 4Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag 5Wind Cooling Method Fiber Handheld Single Motor Laser Welding Machine with 220v 50Hz / 60Hz Electrical Input Voltag 6
