1500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-QXJ-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

20m Cable Laser Cleaning Head

10m Cable Laser Cleaning Head

Laser Cleaning Head 300mm
Specifications
Laser Power: 1500W Adopt Laser Source: 1064~1080nm Fiber Laser Source
Handheld Laser Gun Weight: 0.7 Kg Cleaning Materials: Steel / Stainless Steel
Cleaning Laser Beam Size: 0-300mm Adjustable Laser Output Mode: CW
Collimation Focal Length: 50mm Focusing Focal Length: 500mm
Machine Electric Consumption: 8Kw/h About Welding parameter storage: 10 Kinds Of Different Welding Parameter Save
High Light:

1500W Laser Cleaning Machine

,

Handheld Laser Cleaning Machine

,

Single Motor Laser Cleaning Machine
Product Description

Handheld Single Motor Cleaning Machine for Steel / Stainless Steel





Handheld Single Motor Cleaning Machine Description:



The Handheld Single Motor Cleaning Apparatus is a convenient and easy-to-use cleaning implement. It mainly employs a single motor as the motive power, which drives the internal pump and other components of the cleaning device. This apparatus is proficient in cleaning substances such as steel and stainless steel. It extracts water from the water supply and boosts the pressure. Through the spray gun and other accessories, a high-pressure water stream is produced to remove the grime on the surfaces of diverse objects.

The cleaning gun is of light weight and small in size, and is ergonomically designed for a comfortable and handy hold. It can smoothly adapt to a broad range of cleaning tasks in different working circumstances. Whether in industrial large-scale production settings or in outdoor site maintenance work, it attains excellent results.

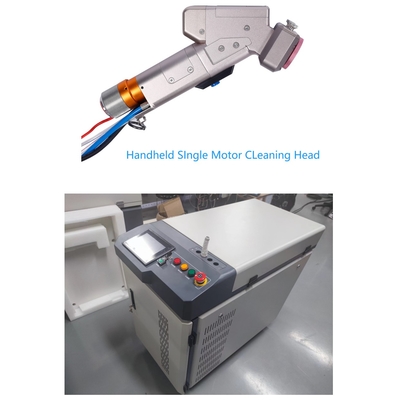

1500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel 0

Handheld Single Motor  Cleaning Machine Features:

  • Product Name: Fiber Laser Cleaning Head
  • Cleaning Materials: Steel / Stainless Steel
  • Cleaning Laser Beam Size: 0-300mm Adjustable
  • Handheld Laser Gun Weight: 0.7kg
  • Wavelength: 1064nm~1080nm
  • Cleaning Laser Beam Form: Line “一”
  • Laser Head Connection: QBH
  • Positioning: Red Guide Beam
  • Gas: Nitrogen / No Gas
  • Standard Focus length: 50 and 500mm standard Focus length adjustable



The Fibre Laser Cleaning Head, a remarkable innovation in modern cleaning technology, resembles a high-power Fibre Laser Gun and is furnished with an advanced QBH fibre connector. This combination empowers it with extraordinary capabilities. The cleaning beam size, a vital determinant of its performance, can be adjusted across a wide spectrum from 0 to 300mm, enabling it to adeptly manage a rich variety of cleaning tasks with both accuracy and efficiency. Notably, a red guide beam has been cleverly integrated into its design, providing crucial assistance for precise positioning and guaranteeing that the cleaning process is not only highly effective but also extremely precise.

In contrast to other cleaning tools, the Handheld Single Motor Cleaning Apparatus, which is also a significant player in the cleaning field, specializes in cleaning materials such as steel and stainless steel. It operates by using a single motor as the driving force to power the internal pump and other parts of the device. It draws water from the water source and elevates the pressure, generating a high-pressure water jet through the spray gun and other attachments to eliminate dirt from the surfaces of different objects.

The Fiber Optic Laser Cleaning Gun further distinguishes itself with its excellent ergonomic attributes. It is exceptionally lightweight, weighing only 0.7kg in total, which substantially simplifies handling and maneuverability during operation and is highly user-friendly. This optimal balance between power and portability makes it a preferred option for numerous industrial and professional cleaning applications.


Handheld Single Motor Cleaning Machine Technical Parameters:



Product Name

Handheld Single Motor Laser Cleaning Head

Laser Power

1500W

CLeaning Beam Form

Line " 一 "

Fiber Connector

QBH

Handheld Laser Gun Weight

0.7Kg

Cleaning Materials

Steel / Stainless Steel

Cleaning Beam Size

0-300mm Adjustable

Cooling method

Water Cooling

Laser Output Mode

CW

Cooling method in Winter

Add Antifreeze

Standard Focus length

50 & 500mm standard Focus length adjustable

Cleaning Parameter Save

10 kinds of different welding parameter save

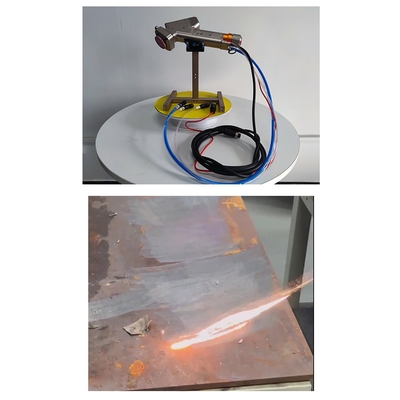

1500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel 1



Handheld Single Motor Cleaning Machine Application Advantages:


The HanWei HW - QXJ - 1500 handheld cleaning device presents remarkable application advantages. It is highly portable. Thanks to its compact and lightweight construction, it can be easily carried and operated, being perfectly suitable for confined spaces and mobile cleaning tasks. It doesn't require elaborate equipment or a large workforce, enhancing work flexibility.

The handheld single oscillating cleaning head also demonstrates excellent adaptability. It can proficiently handle a vast range of surface materials, including steel and stainless steel, various object shapes, and different levels of dirt. Whether in vehicle washing, household cleaning, or industrial equipment maintenance, it performs reliably. Moreover, it is energy-saving and cost-effective. The single-motor setup conserves energy while providing sufficient cleaning power. It simplifies the cleaning process and cuts down on both time and energy consumption. Due to its straightforward structure, it has lower manufacturing and maintenance costs. It is user-friendly, not requiring any specialized training, making it accessible to all users and reducing operational errors and training expenses.



Handheld Single Motor Cleaning Machine Packing:


  • One Handheld Laser Gun
  • One Controller
  • One Touch Screen Monitor
  • One Safety Switch Clip
  • One 15v Power Supply
  • One User Manual
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One Dust Cover

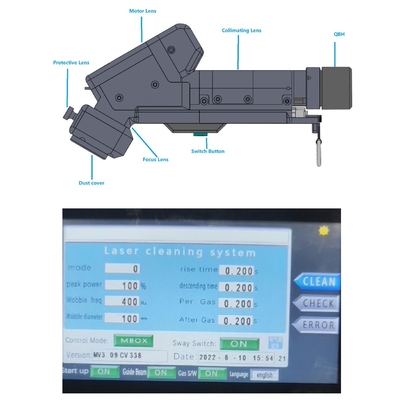

1500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel 2

​



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. stands as a distinguished national high-tech and specialized enterprise. It is committed to the research, development, production, and sales of a diverse range of lasers, including AMB point-ring lasers, blue lasers, semiconductor lasers, and their combinations. Alongside, it specializes in corresponding laser control systems, optical systems, and the comprehensive industrial chain of laser welding processes. Its product lineup features nine prominent series of laser welding machines, such as the advanced AMB point-ring welding machines, which are complemented by sophisticated control and optical systems, as well as a suite of peripheral accessories.

Hanwei Laser adheres to a customer-centric business ideology, with R&D as the core, technology as the safeguard, and service as the support, mainly serving B-end clients. It aims for quality and innovation in laser welding products, covering the whole process from component procurement to after-sales. It has a proficient team with rich experience in laser and welding. Its products are widely used in multiple industries. Notably, it has made remarkable R&D achievements. The AMB point-ring welding machine has a unique technology. The "AMB point-ring + blue light composite oscillating welding machine" is a global first, solving welding problems of high-reflective materials. The "AMB point-ring + semiconductor composite welding machine" addresses issues in aluminum welding of power batteries, and the "Semiconductor + single lamp single rod 600W composite laser welding machine" overcomes difficulties in sealing nail welding for power batteries.

1500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel 31500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel 41500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel 51500W Handheld Single Motor Laser Cleaning Machine for Cleaning Steel and Stainless Steel 6
