Versatile Handheld Single Motor Three-in-One Machine with Welding Cutting and Cleaning

Name: Versatile Handheld Single Motor Three-in-One Machine with Welding Cutting and Cleaning
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-60150
Price: 1.00 USD
Availability: InStock

Basic Properties

Place of Origin: Shenzhen. China

Brand Name: HanWei

Certification: CE

Model Number: HW-20-60150

Trading Properties

Minimum Order Quantity: 1 Set

Price: USD / Set

Payment Terms: T/T

Supply Ability: 2000 Sets / year

Stainless Steel Laser Welding Machine

3-in-1 Laser Welding Machine

Aluminium Alloy Laser Welding Machine

Specifications

Laser Power:	Up To 3000W For Welding And 2000W For Cleaning	Welding Materials:	Steel / Stainless Steel / Aluminium
Handheld Laser Gun Weight:	0.7 Kg	Welding Laser Beam Size:	0-5mm Adjustable
Cleaning Laser Beam Size:	0-50mm Adjustable	Wire Feeding Device:	Standard Type : 0.8&1.0&1.2&1.6mm Wire
Double Route Wire Feeder:	Option ( Same Time Double Route Feeding )	Cooling method:	Water Cooling
High Light:	3in1 Welding Cutting and Cleaning Machine , Single Motor Handheld Welding Machine , Three-in-One Handheld Welding Machine

Product Description

Versatile Handheld Single Motor Three-in-One Machine

Versatile Handheld Single Motor Three-in-One Machine Description:

The Handheld Single Motor Three-in-One Machine represents a significant leap forward in the realm of portable multi-functional equipment. Driven by a single, powerful motor, this device combines three essential operations: welding, cutting, and cleaning, all housed within a stylish and ergonomic handheld enclosure.

When engaged in the welding procedure, it precisely controls the electric current and voltage to generate a stable arc, enabling strong and accurate welds on various steel, stainless steel, and aluminum substrates. For cutting duties, a focused high-intensity beam penetrates different material thicknesses at adjustable speeds and depths, ensuring clean and efficient incisions. In the cleaning function, it draws in cleaning agents or water and transforms them into a forceful adjustable high-pressure stream via a flexible nozzle, successfully eliminating rust, grease, and contaminants. This machine exhibits high versatility and is suitable for a wide range of scenarios such as workshops, construction sites, and industrial maintenance, providing outstanding performance in all three core functions.

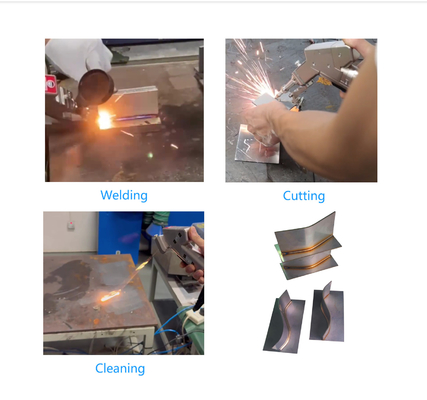

Versatile Handheld Single Motor Three-in-One Machine with Welding Cutting and Cleaning 0

Versatile Handheld Single Motor Three-in-One Machine Features:

Product Name: Fiber Laser Three-in-One Machine
Laser Power: Up to 3000W for welding and 2000W for cleaning
Handheld Laser Gun Weight: 0.7kg
Standard Focus length: 60 and 150mm standard Focus length adjustable
Welding Laser Beam Size: 0-5mm Adjustable
Cleaning Laser Beam Size: 0-50mm Adjustable
Laser Beam Form: Line “一”
Laser Head Connection: QBH
Welding Materials: Steel / Stainless Steel / Aluminum
Cooling method: Water Cooling
Welding Parameter Save: 30 kinds of different welding parameter save

The Handheld Single Motor Three-in-One Machine stands out as an optimal alternative for metal production, machinery renovation, and surface conditioning in workshops and manufacturing facilities. It employs a peak power of 3000W for welding and 2000W for cleaning, empowering it to work on steel, stainless steel, and aluminum substances. The laser beam assumes a linear pattern and is connected by means of QBH, with a need for argon or nitrogen gas. The 0.7 - kilogram handheld laser instrument is outfitted with an adjustable standard focal length varying from 60 to 150mm. Additionally, it offers adjustable laser beam magnitudes for welding and cutting, where the welding beam magnitude can be adjusted between 0 and 5mm and the cleaning beam magnitude from 0 to 50mm. This machine adopts a Water Cooling method to ensure efficient heat dissipation during operation, thereby maintaining its stable performance and prolonging its service life.

Versatile Handheld Single Motor Three-in-One Machine Technical Parameters:

Product Name	Handheld Single Motor Three-in-One Machine
Laser Power	Up to 3000W for welding and 2000W for cleaning
Adopt Laser Source	1064~1080nm Fiber laser source
Handheld Laser Gun Weight	0.7 KG
Standard Focus length	60 and 150mm standard Focus length adjustable
Welding Laser Beam Size	0-5mm Adjustable
Cleaning Laser Beam Size	0-50mm Adjustable
Fiber Connector	QBH
Cleaning Beam Form	Line " 一 "
Wire Feeding Device	Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Welding Parameter Save	30 kinds of different welding parameter save

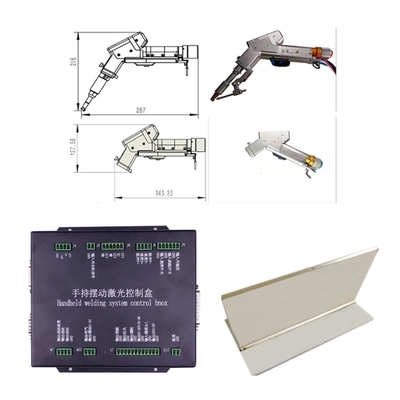

Versatile Handheld Single Motor Three-in-One Machine with Welding Cutting and Cleaning 1

Versatile Handheld Single Motor Three-in-One Machine Application Advantages:

The HanWei HW - 20 - 60150 Handheld Single Wobble Three-in-One Machine showcases outstanding application advantages. Its highly convenient portability derives from its compact and lightweight design, rendering it suitable for restricted areas and mobile operations. This enhances operational adaptability without the need for complex apparatus or a substantial workforce.

This equipment integrates welding, cutting, and cleaning functions. In the welding aspect, with a power of 3000W, it is capable of welding steel, stainless steel, and aluminum. The welding beam, which can be adjusted within the 0 - 5mm range, can accommodate various welding demands. Concerning the cutting function, the laser beam can sever materials with adjustable cutting rate and depth. In the cleaning function, having a power of 2000W, the 0 - 50mm adjustable beam is effective in purifying a wide range of surfaces and is applicable in automotive, household, and industrial equipment cleaning.

It is energy-efficient and cost-effective. The single-motor layout conserves energy, simplifies work procedures, reduces both time and energy consumption. Its straightforward structure results in decreases in manufacturing and upkeep costs. It is also user-friendly, as it requires no specialized instruction, is approachable for a broad spectrum of users, and helps to diminish errors and training-associated costs.

Versatile Handheld Single Motor Three-in-One Machine Packing:

One Handheld Laser Head
One Touch Screen Monitor
One Controller
A set of Connection Cables and Line
One 15v Power Supply
One Focus Lens for cleaning
Two Protective Lens
One Safety Switch Clip
One Wire feeding device
Seven kinds of nozzles
One User Manual

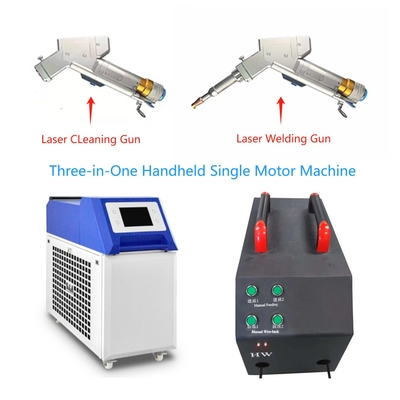

Versatile Handheld Single Motor Three-in-One Machine with Welding Cutting and Cleaning 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to endowing all integrators across the globe with excellent welding technology. As a national high-tech and newly-recognized specialized enterprise, it focuses on the R&D, production, and marketing of the comprehensive industrial chain covering welding lasers, laser control systems, laser optical systems, and laser welding procedures. The company's product range includes nine principal series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine, Blue Light Welding Machine, along with their corresponding supplementary products.

Hanwei Laser adheres to the business tenet of "prioritizing R&D, underpinned by technology, and backed by service" to serve B-end customers. It possesses a proficient team with profound knowledge and experience in laser welding and related domains. The products enjoy extensive applications in various industries such as new energy batteries, automotive, electronics, and household appliances, exhibiting distinctive welding capabilities. Remarkably, the company has attained significant technological advancements. The AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine is a global pioneer, resolving the difficulties in welding highly reflective materials. Other models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and the Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have also effectively addressed specific welding problems in the power battery field.
