Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-50500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

20m Cable Laser Cleaning Head

10m Cable Laser Cleaning Head

Laser Cleaning Head 300mm
Specifications
Laser Power: Up To 2000w Handheld Laser Gun Weight: 0.7 Kg
Cleaning Laser Beam Size: 0-300mm Adjustable Adopt Laser Source: 1064~1080nm Fiber Laser Source
Cleaning Materials: Steel / Stainless Steel Collimation Focal Length: 50mm
Focusing Focal Length: 500mm Laser Output Mode: CW
Handheld Laser Gun Materials: Aluminium Alloy & Stainless Steel Welding parameter storage: 10 Kinds Of Different Welding Parameter Save
High Light:

Handheld Fiber Laser Cleaning Machine

,

Single Motor Fiber Laser Cleaning Machine

,

Adjustable Fiber Laser Cleaning Machine
Product Description

Handheld Single Motor Cleaning Machine 50 and 500mm focus length





Handheld Single Motor Cleaning Machine Description:



The Handheld Single Motor Cleaning Apparatus is a user-friendly cleaning tool. It primarily utilizes a single motor as the driving force, which powers the internal pump and other constituents of the cleaning device. The apparatus is capable of cleansing materials like steel and stainless steel. It draws water from the water source and increases the pressure. Via the spray gun and other attachments, a high-pressure water jet is generated to eliminate the dirt on the surfaces of different objects.



The cleaning nozzle is light in weight, compact in size, and designed with ergonomics in mind for a pleasant and convenient grip. It can seamlessly adjust to a wide variety of cleaning operations within various working scenarios. Whether in industrial mass production environments or during outdoor on-site maintenance work, it achieves remarkable outcomes.

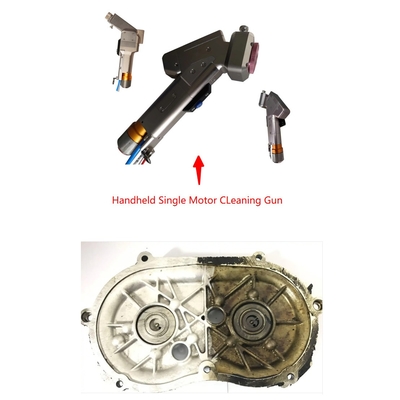

Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable 0

Handheld Single Motor  Cleaning Machine Features:

  • Product Name: Fiber Laser Cleaning Head
  • Cleaning Laser Beam Size: 0-300mm Adjustable
  • Handheld Laser Gun Weight: 0.7kg
  • Cleaning Laser Beam Form: Line “一”
  • Laser Head Connection: QBH
  • Wavelength: 1064nm~1080nm
  • Cleaning Materials: Steel / Stainless Steel
  • Standard Focus length: 50 and 500mm standard Focus length adjustable
  • Positioning: Red Guide Beam
  • Gas: Nitrogen / No Gas



The Fibre Laser Cleaning Head, which represents a pinnacle of modern cleaning technology, is essentially a high-power Fibre Laser Gun that comes equipped with a state-of-the-art QBH fibre connector. This unique combination endows it with truly remarkable functionality. The cleaning beam size, a crucial aspect of its performance, is adjustable within an extensive range spanning from 0 to 300mm. This flexibility allows it to handle a diverse array of cleaning tasks with precision and efficiency. Additionally, a red guide beam has been ingeniously incorporated into its design. This serves as an invaluable aid for achieving precise positioning, ensuring that the cleaning process is not only effective but also highly accurate. What sets this Fiber Optic Laser Cleaning Nozzle apart further is its outstanding ergonomic features. It is not only remarkably lightweight, which greatly facilitates handling and maneuverability during operation, but also highly user-friendly. With a total weight of merely 0.7kg, it offers an ideal balance between power and portability, making it a top choice for various industrial and professional cleaning applications.


Handheld Single Motor Cleaning Machine Technical Parameters:



Product Name

Handheld Single Motor Laser Cleaning Head

Laser Power

Up to 2000W

Handheld Laser Gun Weight

0.7Kg

Fiber Connector

QBH

CLeaning Beam Form

Line " 一 "

Standard Focus length

50 & 500mm standard Focus length adjustable

Cleaning Beam Size

0-300mm Adjustable

Position Guide

Red Guide Light

Laser Output Mode

CW

Adopt Laser Source

1064~1080nm Fiber laser source

Fiber Cable

10m Standard. (15 / 20m Option)

Cleaning Parameter Save

10 kinds of different welding parameter save

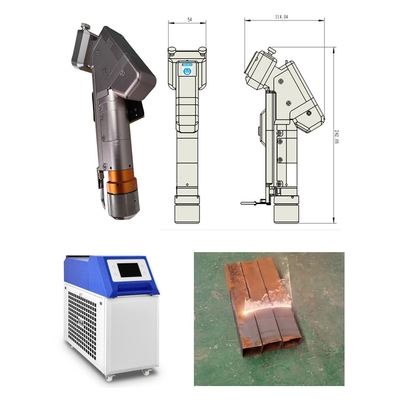

Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable 1

Handheld Single Motor Cleaning Machine Application Advantages:


The HanWei HW - 20 - 50500 handheld cleaning machine exhibits significant application merits. It is extremely portable. Owing to its compact and lightweight design, it can be effortlessly transported and manipulated, making it ideal for restricted areas and on-the-go cleaning operations. It does not necessitate complex apparatus or a large number of personnel, augmenting work flexibility.

The handheld single oscillating cleaning head also showcases outstanding adaptability. It can skillfully manage a wide variety of surface materials, diverse object configurations, and different degrees of dirt. Whether in vehicle washing, domestic cleaning, or industrial equipment maintenance, it functions dependably. Additionally, it is energy-conserving and cost-efficient. The single-motor configuration saves energy while delivering adequate cleaning power. It streamlines the cleaning procedure and reduces both time and energy expenditures. Due to its uncomplicated structure, it has reduced manufacturing and upkeep costs. It is user-friendly, demanding no specialized training, rendering it available to all users and diminishing operational mistakes and training costs.



Handheld Single Motor Cleaning Machine Packing:


  • One Handheld Laser Gun
  • One Touch Screen Monitor
  • One Controller
  • One 15v Power Supply
  • Two Protective Lens
  • A set of Connection Cables and Line
  • One Safety Switch Clip
  • One Dust Cover
  • One User Manual

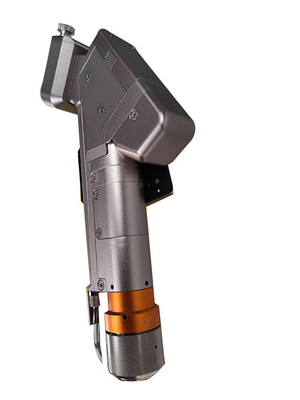

Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable 2

​



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. distinguishes itself as one of the rare global enterprises possessing the competence and concentration on the comprehensive industrial chain involving research and development, manufacturing, and marketing of all kinds of lasers, laser control systems, laser optical systems, and laser welding procedures. It enjoys the standing of a national high-tech and "specialized, sophisticated, unique, and innovative" enterprise. Hanwei perseveres in the ceaseless R&D of laser welding products. Throughout each phase, starting from component sourcing, R&D and fabrication, assembly and inspection to sales and after-sales service, it invariably presents integrators with cutting-edge welding products and technical services at the vanguard of the international level.



Hanwei Laser has assembled a copious amount of outstanding personnel within the nation. It prides itself on a team of technical authorities committed to laser welding and advancement over an extended period. Their proficiency is particularly prominent in the design domains of lasers, laser systems, laser power sources, laser control, and laser optical systems, as well as in welding process exploration, where they have accumulated substantial theoretical understanding and hands-on experience. Its products enjoy wide-ranging applications in various sectors such as new energy batteries, automobiles, automotive components, electronic circuits, fiber-optic communication apparatuses, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments, meters and gauges, gold and silver ornaments, medical devices, solar energy, the eyewear industry, and the motor industry. Multiple products exhibit unbeatable welding performance across a multitude of industries.


Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable 3Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable 4Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable 5Handheld Single Motor Fiber Laser Cleaning Machine 50 - 500mm Standard Focus Length Adjustable 6
