150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: Up To 3000W Electrical Input Voltage: 220v 50Hz / 60Hz
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Welding Materials: Steel / Stainless Steel / Aluminium
Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon ) Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
Double Route Wire Feeder: Option (Same Time Double Route Feeding) Gas: Argon / Nitrogen
High Light:

Single Motor Handheld Laser Welding Machine

,

150mm Handheld Laser Welding Machine

,

Multiple Thicknesses Handheld Laser Welding Machine
Product Description

Fiber Handheld Single Motor Laser Welding Machine





Handheld Laser Welding Machine Description:



The Handheld Single Wobble Welding Head is a remarkable welding tool. With an ergonomic design, it can fulfill complex welding needs. It takes into account both the functionality in welding and the comfort during long-term use, presenting a more efficient and accurate welding mode.

This welding head is light and compact. Its design ensures a comfortable grip and can easily adapt to diverse welding tasks in various workplaces, be it mass production in factories or outdoor on-site repair work.

When it comes to welding effects, it truly shines. It produces clean, precise, and robust weld seams, accompanied by minimal spatter and distortion. The welding arc is stable and well-regulated, facilitating smooth and continuous welding. Whether dealing with thin or thick materials, it achieves excellent fusion, guaranteeing the integrity and durability of the welded joints. Thus, it can meet the stringent quality demands of a wide range of welding projects, spanning from the assembly of delicate electronic components to heavy-duty industrial fabrications.

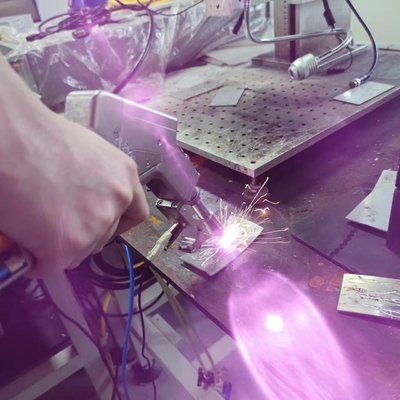

150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses 0

Handheld Laser Welding Machine Features:

  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Welding Machine
  • Handheld Laser Gun Materials: Aluminium alloy & Stainless Steel
  • Fiber Connector: QBH
  • Laser Beam Size: 0~5mm Adjustable
  • Handheld Laser Gun Weight: 0.7kg
  • Cooling method: Water Cooling
  • Positioning: Red Guide Beam



The Fiber Laser Welding Head, integral to the handheld single wobble welding system, presents a QBH fiber connector-equipped, high-power Fiber Laser Gun. Boasting a laser beam size adjustable from 0 to 5mm and a red guide beam for accurate positioning, it weighs a mere 0.7kg, ensuring user-friendliness and portability. The handheld single wobble design endows it with remarkable adaptability, effortlessly accommodating diverse welding angles and intricate tasks. Its ergonomic build further enhances operator comfort during prolonged use, making it an ideal choice for both precision and heavy-duty welding applications.


Handheld Laser Welding Machine Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Welding Beam Size

0-5mm Adjustable ( 0-10mm option )

Adopt Laser Source

1064~1080nm Fiber laser source

Fiber Connector

QBH

Welding Beam Form

Line " 一 "

Welding Power

Up to 3000W

Handheld Laser Gun Weight

0.7kg

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Laser Output Mode

4 mode ( CW, PWM, QCW, Argon)

Cooling water

Purified water

Welding Parameter Save

30 kinds of different welding parameter save

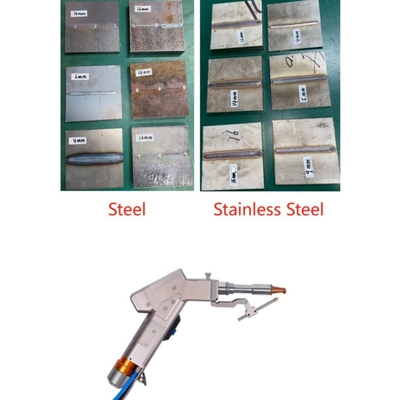

150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses 1





Handheld Laser Welding Machine Application Advantages:



The HanWei HW - 20 - 60150 handheld welding machine exhibits outstanding performance across a wide range of scenarios. Its portability renders it highly convenient for on - site welding operations, enabling its utilization in virtually any location. The wireless welding functionality streamlines the process, enhancing efficiency and facilitating rapid completion of welding tasks. This product proves invaluable in construction, manufacturing, and repair domains, serving as an indispensable asset for those in need of a reliable and efficient welding solution.

The handheld single wobble welding machine emerges as an excellent alternative to conventional argon arc welding and electric welding when it comes to handling thin metal plates such as stainless steel, steel, and aluminium. The welding head is both lightweight and compact, with an ergonomic design that ensures a comfortable and secure grip. It features a safety lock accompanied by a touch - out light, enhancing operational safety. Its user - friendly nature imposes minimal requirements on the operator. The resultant weld seams are of high quality, with a rapid welding speed and no weld marks, discolouration, or the need for post - welding grinding. It possesses robust anti - interference capabilities and is outfitted with a self - developed control system, further augmenting its reliability and performance in various welding applications.

Handheld Laser Welding Machine Packing:

  • One Touch Screen Monitor
  • One Controller
  • One Fiber Laser Welding Head
  • One 15v Power Supply
  • One Safety Switch Clip
  • Seven kinds of nozzle
  • One User Manual
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One Wire feeding device

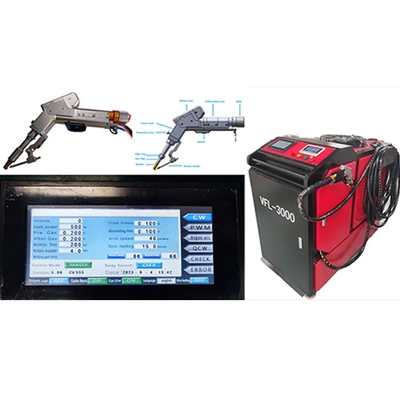

​150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. has successfully developed a series of welding laser products with international advanced level, such as AMB spot ring spot welding machine with other companies around the world do not have the same technical solutions, there are ‘AMB spot ring spot + blue light composite swing welding machine’ not only to fill the gaps in the domestic and is the world's first, to solve the problem of laser welding of copper, gold and other high anti-materials such as welding consistency is poor, the welding surface is not smooth, spatter and so on. Not smooth, spatter and other issues, AMB spot ring spot + semiconductor composite welding machine ‘to solve the power battery aluminium material welding speed and trachoma depth of fusion consistency, there is a’ semiconductor + single lamp single rod 600W composite laser welding machine ‘to solve the power battery sealing nails yield is not high, poor welding quality, slow processing speed of the problem. poor quality, slow processing speed and other difficult problems.

Hanwei Laser's products are widely used in new energy batteries, automobiles, automotive parts, electronic circuits, fiber optic communication devices, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments, instruments, gold and silver jewellery, medical devices, solar energy, eyeglasses industry, motor industry, etc., and a number of products in a number of industries with irreplaceable welding effect.

150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses 3150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses 4150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses 5150mm Focusing Fiber Handheld Single Motor Laser Welding Machine for Multiple Thicknesses 6
