1500W Fiber Handheld Single Motor Three-in-One Machine
Handheld Single Motor Three-in-One Machine Description:
The Handheld Single Motor Three-in-One Machine represents a significant leap forward in portable multifunctional equipment. Driven by a single, high-performance motor, this device combines three crucial functions: welding, cutting, and cleaning, all within a compact and ergonomically designed handheld unit.
In welding, it precisely controls current and voltage to generate a stable arc for creating strong and accurate welds on diverse steel,stainless steel ,aluminum. For cutting, a focused high-intensity beam slices through various materials thicknesses with adjustable speed and depth, ensuring clean and efficient cuts. When it comes to cleaning, it draws in cleaning agents or water and transforms them into a powerful adjustable high-pressure spray via a flexible-angle nozzle to effectively remove rust, grease, and contaminants. This machine is highly versatile and suitable for various scenarios such as workshops, construction sites, and industrial maintenance, providing outstanding performance in all three essential functions.
Handheld Single Motor Three-in-One Machine Features:
Product Name: Fiber Laser Three-in-One Machine
Laser Power: 1500W

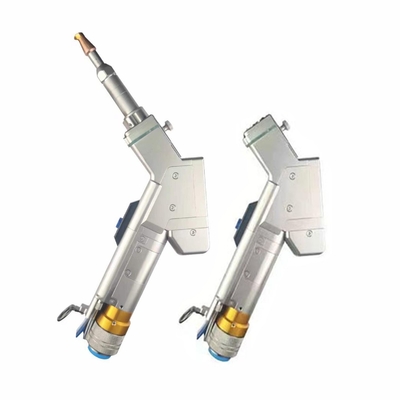

Handheld Laser Gun Weight: 0.7kg
Standard Focus length: 60 & 150mm standard Focus length adjustable
Welding Thickness: 4mm Stainless steel Full Penetration
Machine Electric Consumption: 8Kw/h about
Gas: Argon / Nitrogen
The Handheld Single Motor Three-in-One Machine: With 1500W laser power and around 8Kw/h consumption, it can weld steel, stainless steel and aluminum, reaching full penetration for 4mm stainless steel. The 0.7kg handheld laser gun has an adjustable standard focus length from 60 to 150mm and adjustable welding/cutting laser beam size (0 - 5mm for welding, 0 - 50mm for cleaning). The laser beam is in a line form. It adopts QBH connection and demands argon or nitrogen gas. Suited well for metal fabrication, machinery repair and surface treatment in workshops and factories.
Handheld Single Motor Three-in-One MachineTechnical Parameters:
Product Name
Handheld Single Motor Three-in-One Machine
Laser Power
1500W
Adopt Laser Source
1064~1080nm Fiber laser source
Handheld Laser Gun Weight
0.7 KG
Welding Laser Beam Size
0-5mm Adjustable
Cleaning Laser Beam Size
0-50mm Adjustable
Cleaning Beam Form
Line " 一 "
Fiber Connector
QBH
Standard Focus length
60 & 150mm standard Focus length adjustable
Wire Feeding Device
Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder
Option (Same time double route feeding)
Welding Parameter Save
30 kinds of different welding parameter save
Handheld Single Motor Three-in-One MachineApplication Advantages:
The HanWei HW - DZJS - 1500 Handheld Single Wobble Three-in-One Machine has notable application advantages. It's highly portable due to its compact and light design, suitable for tight spaces and mobile work, enhancing flexibility without complex equipment or many operators.
It integrates welding, cutting, and cleaning. In welding, with 1500W power, it welds steel, stainless steel, and aluminum, achieving 4mm stainless steel full penetration. The 0 - 5mm adjustable welding beam suits different tasks. For cutting, the laser beam cuts materials with adjustable speed and depth. In cleaning, the 0 - 50mm adjustable beam cleans various surfaces, useful in automotive, household, and industrial equipment cleaning.
It's energy-efficient and cost-effective. The single-motor saves energy, simplifies work, reduces time and energy use. Its simple structure cuts manufacturing and maintenance costs. It's user-friendly, needing no special training, accessible to all, and reducing errors and training expenses.
Handheld Single Motor Three-in-One Machine Packing:
One Handheld Laser Gun
One Controller
One Touch Screen Monitor
One Safety Switch Clip
A set of Connection Cables and Line
Two Protective Lens
One Focus Lens for cleaning
Seven kinds of nozzles
One 15v Power Supply
One Wire feeding device
One User Manual
Shen Zhen HanWei Laser Enterprise and Feature:
Shenzhen Hanwei Laser Equipment Co., Ltd. aspires to endow all integrators with top-notch welding technology on a global scale. The firm is one of the rare entities across the globe that can center on the research, development, manufacture, and marketing of the comprehensive industrial chain of welding lasers, laser control mechanisms, laser optical components, and laser welding procedures. It is a national high-tech and novel specialty enterprise.
Hanwei Laser has triumphantly devised a suite of welding laser products possessing international leading-edge qualities. Take the AMB spot ring spot welding apparatus, for instance, which has distinct technical blueprints not paralleled by other corporations worldwide. The "AMB spot ring spot + blue light compound oscillating welding device" not only plugs the domestic void but also pioneers globally. It overcomes quandaries like erratic welding uniformity, rough welding surfaces, and splattering during the welding of highly reflective substances such as copper and gold. The "AMB spot ring spot + semiconductor compound welding machine" remedies the issues of inconsistent fusion depth and welding velocity in the welding of aluminum materials for power batteries. The "Semiconductor + single lamp single rod 600W composite laser welding machine" conquers the thorny problems of low production yield, inferior welding quality, and sluggish processing pace in the welding of power battery sealing nails.
