| Brand Name: | HanWei |
| Model Number: | HW-PT-36/50 |
| MOQ: | 1 |
| Price: | Negotiatle |
| Payment Terms: | T/T |
| Supply Ability: | 2000 set /month |

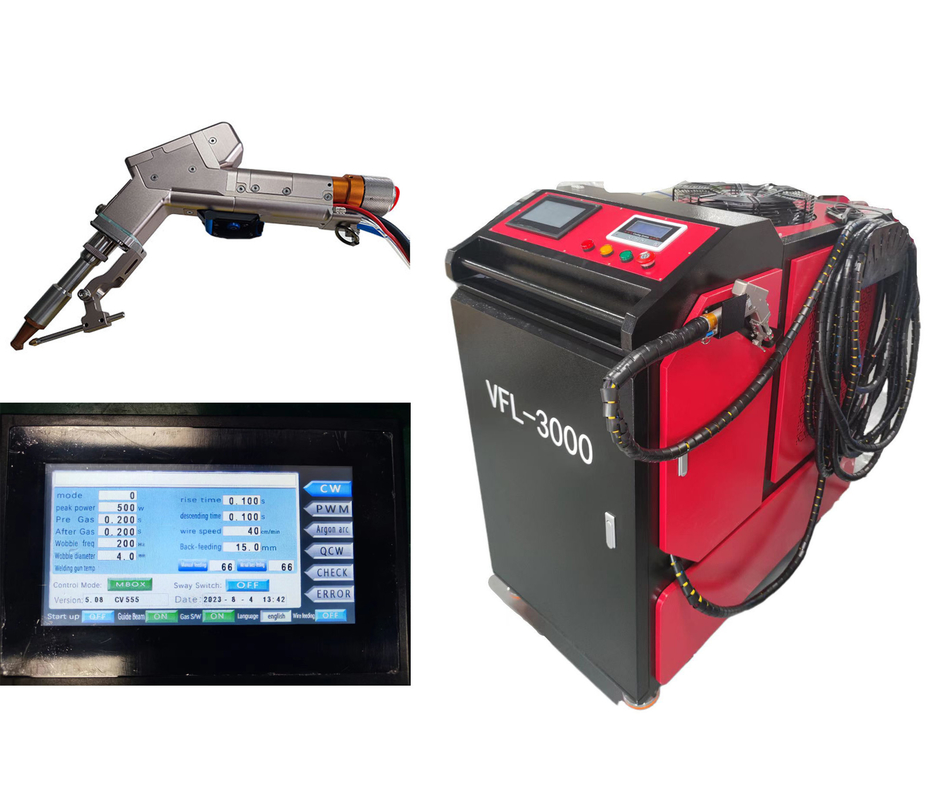

The Fiber Laser Welding Head features a Red Guide Beam that provides accurate positioning for the welding process. This ensures that the welding is done exactly where it is needed, reducing the risk of errors and inaccuracies. With its high precision and accuracy, this device is perfect for welding even the most complex shapes and designs.
The Fiber Laser Welding Head is a reliable and long-lasting device that is designed to provide years of trouble-free operation. It is built to withstand the rigors of industrial use, and it is backed by a comprehensive warranty for your peace of mind.
In summary, the Fiber Laser Welding Head is a versatile and efficient device that is perfect for a wide range of welding applications. Whether you are in the manufacturing, automotive, or any other industry, this Fiber Beam Welding Unit is an ideal choice for all your welding needs. With its high-quality beam, adjustable laser beam size, and accurate positioning, the Fiber Optic Laser Welder is a must-have tool for any serious welder.
Mechanical Specification:
| Model | HW-DZJS-3000 |
| Machine Size | 1600*850*1400mm |
| Net Weight | 280 Kg |
| Wire Feeder Size | 570*220*520 mm |
| Wire Feeder Weight | 16 Kg |
| Machine Packing Size | 1700*950*1500 mm |
| Machine Gross Weight | 300 Kg |
| Wire Feeder Packing Size | 680*340*615 mm |
| Wire Feeder Packing Weight | 20 Kg |
| Whole-One-Set Packing Size | 1700*1400*1400 mm. |
| Electrical Input Voltage | 380v 50Hz/60Hz |
| Machine Electric Consumption | 10Kw/h about |
| Phase | Three Phase. |
| Environment temperature | 5-40 ℃ |
| Machine Moving | Wheels under the machine |
| Guarantee | One year |
Laser Specification:
| Laser Source | Fiber Laser Source |
| Laser Power | 3000w |
| Wavelength | 1064nm~1080nm |
| Fiber Cable | 10m Standard. (15 / 20m Option) |
| Handheld Laser Gun Weight | 0.7 kg |
| Handheld Laser Gun Size | 216*287 mm |
| Safety Switch | Laser Button & Clip & Emergency Stop |
| Welding Beam Size | 0-5mm Adjustable |
| Welding Beam Form | Line “一” |
| Welding Materials | Steel / Stainless Steel / Aluminium |
| Welding Thickness | 8mm Stainless steel Full Penetration |
| Welding Speed | Handheld welding operator control |
| Wire Feeding Device | Standard type : 0.8&1.0&1.2&1.6mm wire |
| Double Route Wire Feeder | Option (Same time double route feeding) |
| Wire Feeding Parameter | Digital Data Input |
| Control System | Touch Screen Monitor |
| Language | English (Support Customized) |
| Welding Parameter Save | 30 kinds of different welding parameter save |
| Laser Output Mode | 4 mode ( CW, PWM, QCW, Argon) |
| Cooling method | Water Cooling |
| Cooling water | Purified water |
| Gas | Argon / Nitrogen |
Our brand, HanWei, is known for its high-quality products and our Laser Fiber Weld Head Model Number HW-PT-36/50 is no different. Made in Shenzhen, China, it has a certification of CE and a minimum order quantity of 1. Our prices are negotiable and we offer packaging details such as size, weight, and packing methods for your convenience.
With a delivery time of just 10 working days, we offer payment terms of T/T and a supply ability of 2000 set/month. Our Laser Wobble Method uses Laser Beam Swing, and we provide a Red Guide Light for Position Guide. It is compatible with various fiber lasers, and our System Language is Customized. However, the Beam Diameter is not specified.
In addition, our technical support team is available to troubleshoot any issues that may arise with the welding head. We can provide remote assistance or dispatch a technician to your location if necessary. We also offer maintenance and repair services to keep your welding head running smoothly and efficiently.
Our goal is to provide you with the support and services you need to ensure that your Fiber Laser Welding Head product delivers optimal performance and productivity for years to come.
