3000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

2000w wobble laser welding head

Handheld Fiber Laser Welding Head

handheld welding head Metal
Specifications
Laser Power: Up To 3000W Handheld Laser Gun Materials: Aluminium Alloy / Stainless Steel
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Handheld Laser Gun Weight: 0.7 Kg
Laser Head Connection: QBH Adopt Laser Source: 1064~1080nm Fiber Laser Source
Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon ) Collimation Focal Length: 60mm
Focusing Focal Length: 150mm Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
High Light:

Single Motor Fiber Laser Welding Head

,

Precision Instruments Fiber Laser Welding Head

,

3000W Fiber Laser Welding Head
Product Description

3000W Fiber Handheld Single Motor Laser Welding Head





Handheld Single Motor Laser Welding Head Description:



The Handheld Single Wobble Welding Head is an advanced welding tool. Adopting ergonomic design concepts, it can handle complex welding needs by giving full consideration to the applicability of the welding process as well as the comfort of long-term use. It provides a more efficient and accurate mode of operation for welding.
The welding head is lightweight, compact and ergonomically designed for a comfortable grip. It can be easily adapted to different welding tasks in various working environments. Whether it is mass production in factories or outdoor on-site repair work, it can achieve good results.

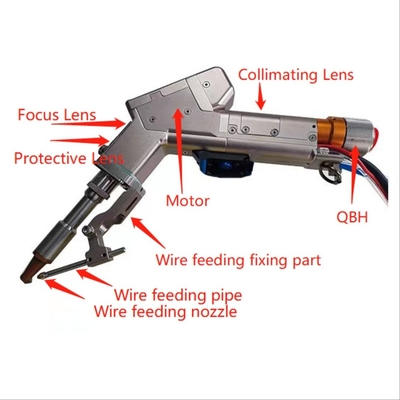

3000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 0

Handheld Single Motor Laser Welding Head  Features:

  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Gun Weight: 0.7kg
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam
  • Feeding Wires: Standard type : 0.8&1.0&1.2&1.6mm wire ( Option : 2mm wire )



The Fibre Laser Welding Head is a high power Fibre Laser Gun equipped with a QBH fibre connector. Its laser beam size can be adjusted within 0 - 5mm, and there is a red guide beam for positioning. This Fiber Optic Laser Welding Nozzle is of light weight and user - friendly, with a total weight of 0.7kg.



Handheld Single Motor Laser Welding Head Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Head

Laser Power

Up to 3000W

Adopt Laser Source

1064~1080nm Fiber laser source

Fiber Connector

QBH

Welding Beam Form

Line " 一 "

Position Guide

Red Guide Light

Welding Beam Size

0-5mm Adjustable

Standard Focus length

60 &150mm standard Focus length adjustable

Laser Output Mode

4 mode ( CW, PWM, QCW, Argon)

Handheld Laser Gun Weight

0.7kg

Fiber Cable

10m Standard. (15 / 20m Option)

Welding Parameter Save

30 kinds of different welding parameter save



3000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 1







Handheld Single Motor Laser Welding Head Application Advantages:


The HanWei HW - 20 - 60150 handheld welding head performs outstandingly in a multitude of situations. It is highly convenient for field welding due to its portability and versatility in application. The wireless welding capability renders it straightforward and productive, enabling you to swiftly finish welding tasks. This product is highly suitable for construction, manufacturing, and repair operations. It is indispensable for those in need of a reliable and efficient welding device.

The handheld single wobble welding head serves as an excellent alternative to conventional argon arc welding and electric welding when working with thin metal sheets such as stainless steel, steel, and aluminum. The welding head is compact, lightweight, and ergonomically engineered for a pleasant handling experience. It features a safety lock accompanied by a touch-activated indicator light. It is user-friendly and imposes minimal requirements on the operator. The welding seam is of high quality, the welding speed is rapid, and there are no welding traces, no color alteration, and no necessity for subsequent grinding. It exhibits robust anti-interference capabilities and is furnished with a self-developed control system.

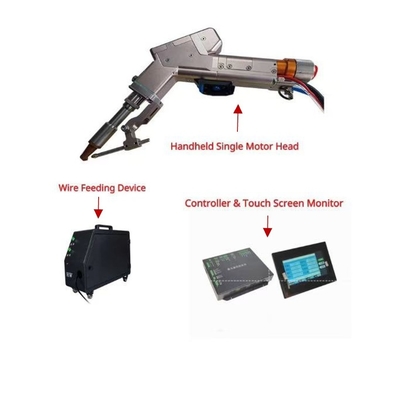

Handheld Single Motor Laser Welding Head Packing:


  • One Fiber Laser Welding Head
  • One Touch Screen Monitor
  • One User Manual
  • One Controller
  • A set of Connection Cables and Line
  • One Wire feeding device
  • Seven kinds of nozzles
  • Two Protective Lens
  • One 15v Power Supply
  • One Safety Switch Clip

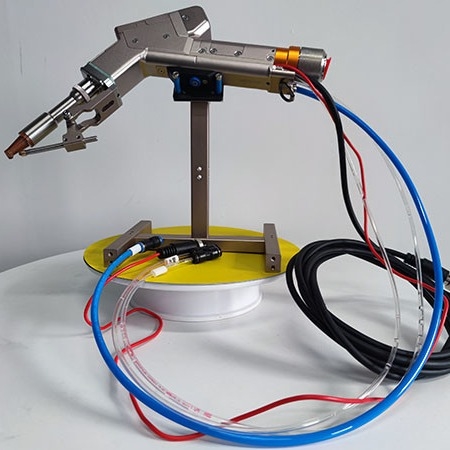

3000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 2



​3000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 3



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. presents a variety of laser systems, such as desktop and handheld laser system variants. These systems employ state-of-the-art fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies to precisely fulfill the specific requirements of their clientele. Additionally, customized solutions for particular applications are furnished, and training and support are provided to assist their customers in maximizing the utilization of their laser systems. Having offices and distributors spread over Europe, North America, Asia, and the Middle East, Hanwell Laser enjoys a worldwide presence, serving customers globally.

Hanwei Laser concentrates on the laser welding field. The enterprise is committed to providing world-leading laser welding technology to international laser integration enterprises. It endeavors to present excellent welding technology to all integrators. Being among the scarce national high-tech professional emerging enterprises around the world, it is proficient in the research and development, manufacturing, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding procedures within the entire industrial chain.

3000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 43000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 53000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 63000W Fiber Handheld Single Motor Laser Welding Head for Precision Instruments 7
