| Brand Name: | HanWei |
| Model Number: | HW-20-50150 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 2000 set /month. |

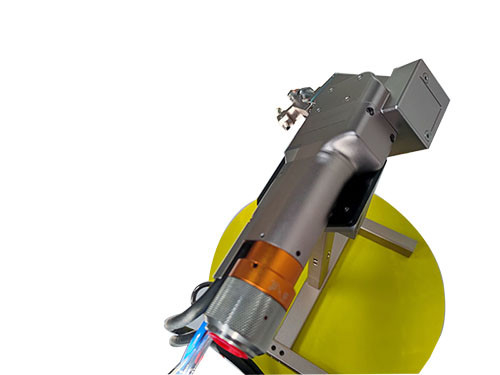

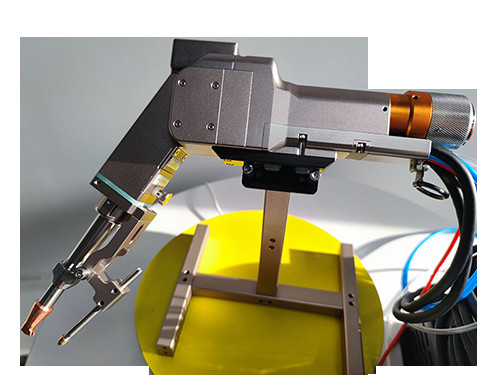

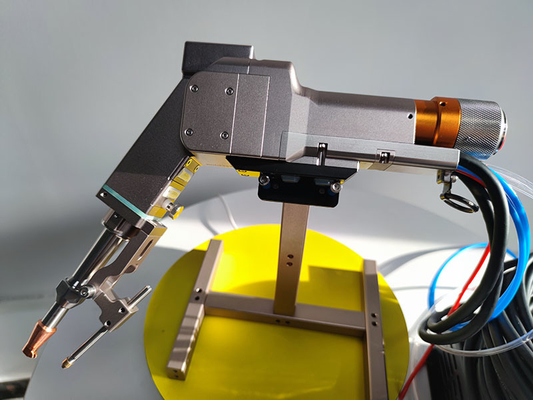

Handheld Double Motor- Laser Welding Head for 2000W Laser Cutting Aluminium Steel
The welding beam form of this handheld welding gun can be adjusted to suit the needs of the user. The welding beam can take on different shapes including ―,○,◎,⊙,△, and 8, making it a versatile tool that can handle a wide range of welding tasks.
The lens material of this portable welding head is made of high-quality aluminum alloy and stainless steel, which ensures durability and longevity. Additionally, the collimating length of the welding head is 50, which helps to focus the welding beam and improve accuracy.
Powered by electricity, this portable welding gun is easy to use and requires minimal setup. Simply plug it in and start welding. The handheld design of this welding gun makes it easy to maneuver and control, allowing for precise and accurate welding.
Whether you are a professional welder or a DIY enthusiast, the Handheld Welding Head is a versatile and reliable tool that can help you get the job done. With its adjustable welding beam form, high-quality lens material, and convenient handheld design, this portable welding gun is a must-have for anyone who needs to weld on the go.
This product is a versatile portable welding gun also known as a handheld welding gun or handheld welder . It is powered by electricity and can save up to 30 kinds of welding parameters. The head type is a portable handheld laser gun, and it uses either Argon or Nitrogen gas. The welding width can be adjusted from 0 to 5mm.
Laser Gun Specification:
| Handheld Laser Gun Size | 216*287 mm |
| Handheld Laser Gun Weight | 0.7 Kg |
| Handheld Laser Gun Materials | Aluminium alloy & Stainless Steel |
| Laser Head Connection | QBH |
| Adopt Laser Source | 1064~1080nm Fiber laser source |
| Laser Power | Up to 2000w |
| Safety Switch | Laser Button & Clip & Emergency Stop |
| Position | Red point guide beam |
| Welding Laser Beam Size | 0-5mm Welding |
| Welding Beam Form | ―,○,◎,⊙,△,8 . |
| Welding Materials | Steel / Stainless Steel / Aluminium |
| Welding Thickness | Depend on Laser source |
| Welding Speed | Depend on operator control |
| Welding Parameter Input | Touch Screen Monitor |
| Language in control system | English (Support Customized) |
| Welding parameter storage | 30 kinds of different welding parameter save |
| Wire Feeding Parameter | Digital Data Input in monitor |
| Feeding Wires | Standard type : 0.8&1.0&1.2&1.6mm wire |
| Option : 2mm wire | |
| Double Route Wire Feeder | Option (Same time double route feeding) |
| Cooling method | Water Cooling |
| Cooling water | Purified water |
| Gas | Argon / Nitrogen |
The Handheld Welding Head is a compact and lightweight welding solution designed for easy handling and precise welding performance. Our product technical support and services include:
Our team of experienced technicians and engineers are dedicated to providing timely and effective solutions to any technical issues that may arise with your Handheld Welding Head. We are committed to ensuring the highest level of customer satisfaction and product performance.
