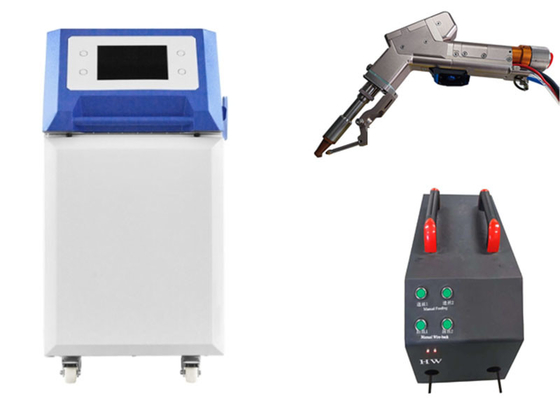

3000w Laser High Power Handheld Laser Welding Machine Adopt Double Route Wire Feeder Same Time Feeding
Mechanical Specification
| Model | HW-DZJS-3000 |
| Machine Size | 1600*850*1400mm |
| Net Weight | 280 Kg |
| Wire Feeder Size | 570*220*520 mm |
| Wire Feeder Weight | 16 Kg |
| Machine Packing Size | 1700*950*1500 mm |
| Machine Gross Weight | 300 Kg |
| Wire Feeder Packing Size | 680*340*615 mm |
| Wire Feeder Packing Weight | 20 Kg |
| Whole-One-Set Packing Size | 1700*1400*1400 mm. |
| Electrical Input Voltage | 380v 50Hz/60Hz |
| Machine Electric Consumption | 10Kw/h about |
| Phase | Three Phase. |
| Environment temperature | 5-40 ℃ |
| Machine Moving | Wheels under the machine |
| Guarantee | One year |
Laser Specification
| Laser Source | Fiber Laser Source |
| Laser Power | 3000w |
| Wavelength | 1064nm~1080nm |
| Fiber Cable | 10m Standard. (15 / 20m Option) |
| Handheld Laser Gun Weight | 0.7 kg |
| Handheld Laser Gun Size | 216*287 mm |
| Safety Switch | Laser Button & Clip & Emergency Stop |
| Welding Beam Size | 0-5mm Adjustable |
| Welding Beam Form | Line “一” |
| Welding Materials | Steel / Stainless Steel / Aluminium |
| Welding Thickness | 8mm Stainless steel Full Penetration |
| Welding Speed | Handheld welding operator control |
| Wire Feeding Device | Standard type : 0.8&1.0&1.2&1.6mm wire |

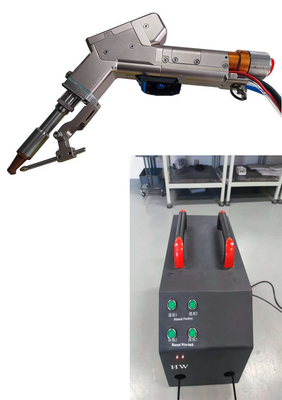

| Double Route Wire Feeder | Option (Same time double route feeding) |
| Wire Feeding Parameter | Digital Data Input |
| Control System | Touch Screen Monitor |
| Language | English (Support Customized) |
| Welding Parameter Save | 30 kinds of different welding parameter save |
| Laser Output Mode | 4 mode ( CW, PWM, QCW, Argon) |
| Cooling method | Water Cooling |
| Cooling water | Purified water |
| Gas | Argon / Nitrogen |
Function Switching Mode

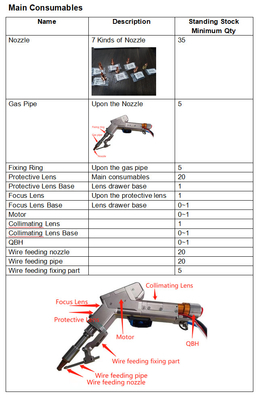

Main Consumables
Sample Show
Company Profile
Hanwei Laser Equipment Co.,Ltd is a leading corporation of laser welding systems for a variety of industries, is the worldwide innovation leader in the development of components and system solutions in the field of laser welding technology, including automobile battery, new energy resources, energy storages, aerospace, jewelry, metal processing, medical, plastic, and more.
Hanwei laser Founded in 2016, the company has over two decades of experience in the industry and utilizes the latest technology to provide innovative, reliable, and high-quality laser solutions.
Great changes are driven by technology. And technologies change the world.
The company offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.
Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.
The company has a reputation for excellent customer service, quality products, and innovative solutions, which have made it a trusted name in the laser welding industry.
We can do more than just first-class products.
We develop individual solutions.
