Handheld laser welding head of Fiber laser welding machine Hanwei Laser welding head
Q : What is the structure of this handheld laser welding machine ?
A : Fiber laser source, Water cooling chiller, Handheld welding head, Monitor screen, Laser box, Machine case, Wire feeding device.
Q : How to use this handheld laser welding machine ?
A : Turn on the machine, Input welding parameter according to welding material and thickness. Use handheld welding head positioning welding area, then check safety switch state and press button of welding head to make laser output. Start weld manually.
Q : How to use handheld welding head, is it heavy and hard to weld ?
A : The handheld laser welding head weight is 0.7kg only, 21.6*28.7cm size of overview. Easy to learn and start to work.
Q : Is it dangerous during operating ?
A : The laser welding head adopt safety switch to ensure safety.
Q : How to purchase and get technical support ?
A : Purchasing from local agent around the world or directly on line. Technical support and service from local agent around the world and on line.
Handheld Laser Welding Head Specification

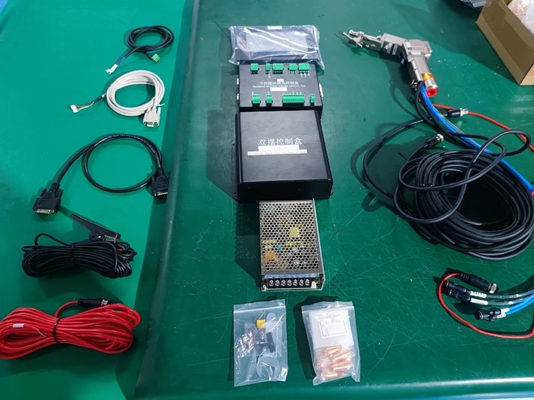

| Model | HW-BDH-20-60150 |
| Handheld Laser Gun | 1 ea |
| Laser Gun’ Motor Driver Box | 1 ea |
| Controller | 1 ea |
| Touch Screen Monitor | 1 ea |
| 15v Power Supply | 1 ea |
| Safety Switch Clip | 1 ea |
| Connection Cables and Line | 1 set |
| Protective Lens | 2 ea |
| Nozzle (7 kinds of nozzle) | 7 ea |
| Wire feeding device | 1 ea |
| Laser Head Set Packing Size | 460*330*320 mm |
| Laser Head Set Gross Weight | 10 Kg |
| Wire Feeder Packing Size | 680*340*615 mm |
| Wire Feeder Packing Weight | 20 Kg |
| Guarantee | One year |
| Handheld Laser Gun Size | 216*287 mm |
| Handheld Laser Gun Weight | 0.7 Kg |
| Handheld Laser Gun Materials | Aluminium alloy & Stainless Steel |
| Laser Head Connection | QBH |
| Adopt Laser Source | 1064~1080nm Fiber laser source |
| Laser Power | Up to 2000w |
| Safety Switch | Laser Button & Clip & Emergency Stop |
| Position | Red point guide beam |
| Welding Laser Beam Size | 0-5mm Welding |
| Welding Beam Form | ―,○,◎,⊙,△,8 . |
| Welding Materials | Steel / Stainless Steel / Aluminium |
| Welding Thickness | Depend on Laser source |
| Welding Speed | Depend on operator control |
| Welding Parameter Input | Touch Screen Monitor |
| Language in control system | English (Support Customized) |
| Welding parameter storage | 30 kinds of different welding parameter save |
| Wire Feeding Parameter | Digital Data Input in monitor |
| Feeding Wires | Standard type : 0.8&1.0&1.2&1.6mm wire |
| Option : 2mm wire | |
| Double Route Wire Feeder | Option (Same time double route feeding) |
| Cooling method | Water Cooling |
| Cooling water | Purified water |
| Gas | Argon / Nitrogen |
Handheld Laser Welding Head Features and Advantages

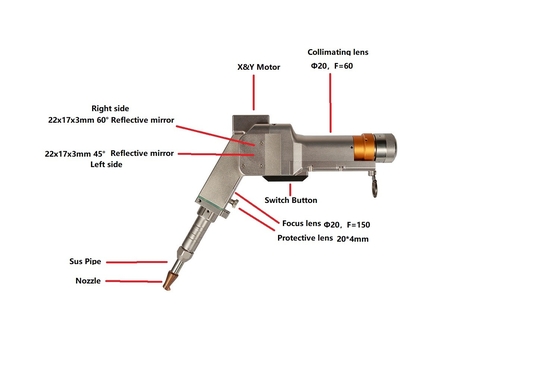

| 1 | Laser gun Size small & Light weight. |
| 2 | Unique non-slip grip design for manipulating ease and comfort grip. |
| 3 | Multiple security measures . |
| 4 | Various laser beam forms for different working requirements use. |
| 5 | Drawer type mirror holder - High sealing performance and Easy to replace. |
| 6 | 20*4mm Protective window. Extremely durable. |
| 7 | 50&150mm standard Focus length adjustable. Output high strong laser power. |
| 8 | High performance wobble motor and motor lens set. |
| 9 | High performance QBH connection port support various laser source. |

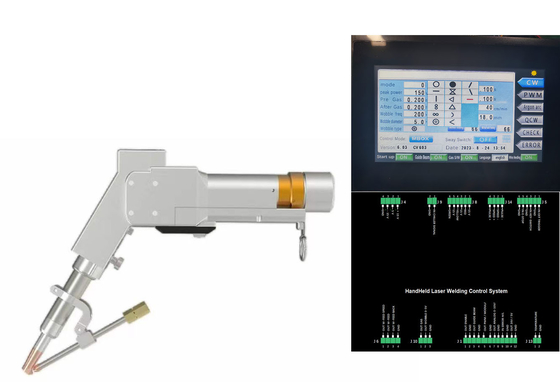

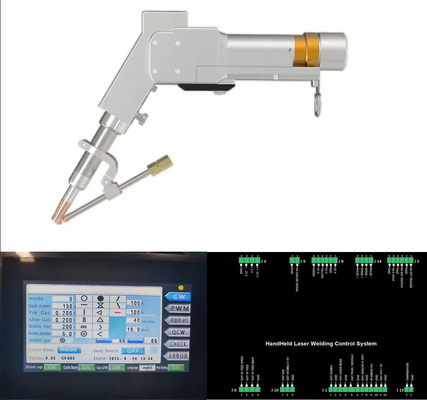

| 10 | Touch screen digital parameter setting monitor. |
| 11 | Language in English as standard. (Support Customized Language in Controller) |
| 12 | Laser beam size adjustable 0~5mm. |
| 13 | Option: Laser beam size adjustable 0~10mm. |
| 14 | 0.8&1.0&1.2&1.6mm wire feeding. (2mm wire feeding as Option). |
| 15 | Option: Double route wire feeding (Same time double route feeding). |
Product Overview

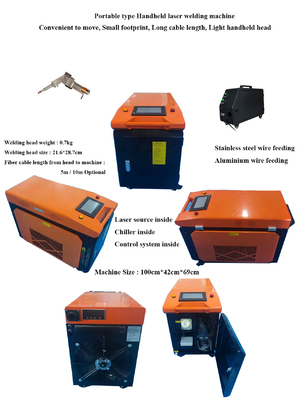

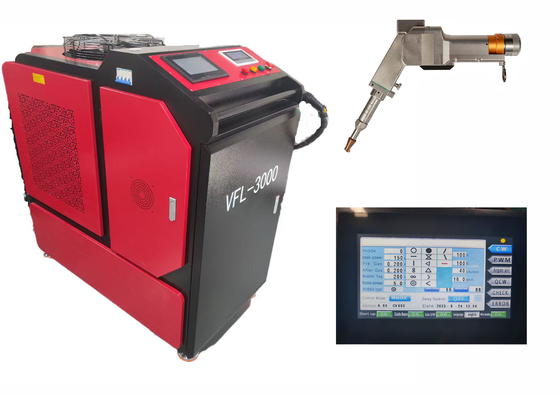

Handheld laser Welding Machine Overview
