Adjustable Mode Beam 6000w Laser Power Full Version ALuminium Laser Welding Machine High Speed Weld
Currently, aluminum alloy battery shells account for over 90% of the entire power battery. The difficulty of its welding lies in the extremely high reflectivity of aluminum alloy to laser, high sensitivity of gas pores during the welding process, and inevitable occurrence of some problems and defects during welding, the most important of which are gas pores, hot cracks, and explosion fire.

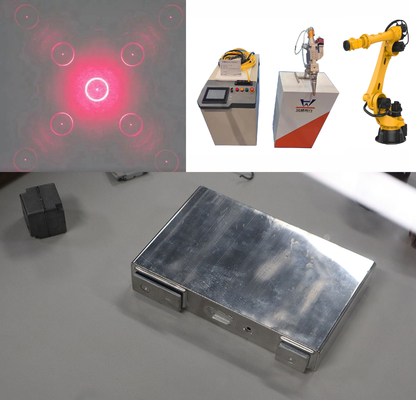

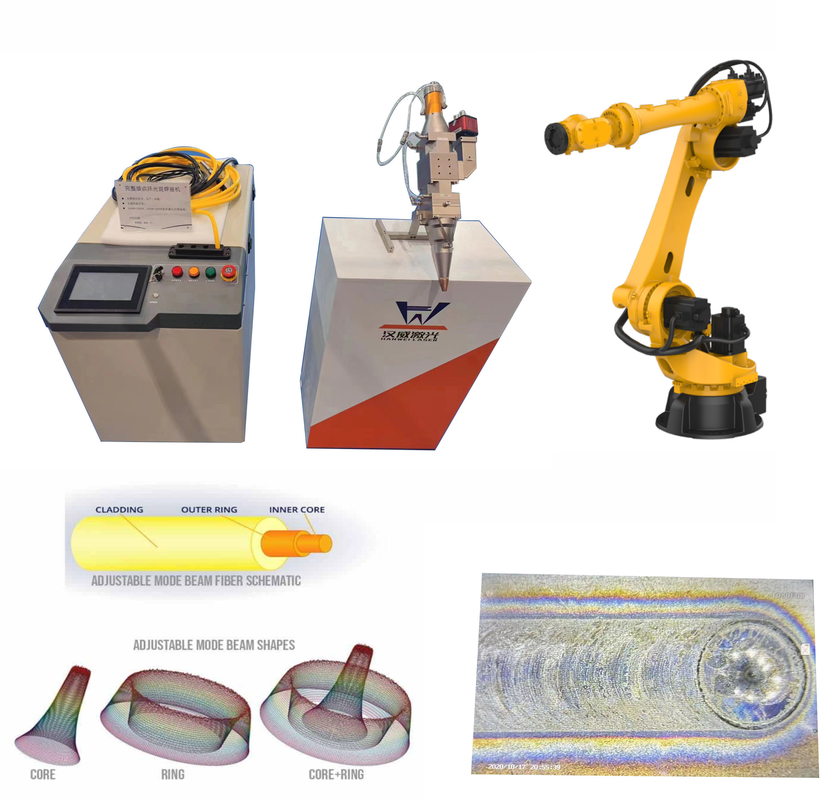

AMB - Adjustable Mode Beam Laser Source, HanWei Laser have devoted itself to Research and Development for many years. AMB welding with Less-spatter, High speed welding, high plumpness welding features. And also, with HanWei independent developed laser control system.
The AMB welding technology specially used to copper, brass, aluminum welding industries. It is worth noting that these materials have strong reflectivity towards lasers, we called it high reflective materials in laser processing field.
AMB Benefits Welding in Automotive Applications Providing Spatter-free Welds with Improved Weld Aesthetics and Formability.
The stabilization of the weld pool virtually eliminates spatter, maximizes uptime and significantly reduces rework of welded parts.
2.Independent research and development, produce and sale.
3.High reflective materials welding like copper, brass and aluminum with low-spatter, achieve better welding seam.
4.High quality welding, the welding surface achieve stable quality.
5.High speed welding.
6.Low welding part pollution.
| Attention | Technical Parameters |
|---|---|
| 1 | Aluminum alloy surfaces have a high reflectivity towards lasers, requiring higher laser power during welding |
| 2 | The diameter of the laser spot is small, and the precision requirements for welding fixtures are high |
| 3 | Low tolerance for part clearances, usually requiring part clearances below 0.2mm. |
| 4 | Good and Stable Quality Cooling system. |
| Attribute | Value |
|---|---|
| Model | HW-F-6000 Full Version |
| Laser Source | Full Version AMB Laser Source |
| Laser Power | 6000W |
| Water Chiller | Integrated Inside Machine |
| Control System | HanWei Touch Screen Digital Parameter Setting Control System |
| Handheld Welding Head | AMB Laser Welding Head |
| Handheld Head Weight | 2.5 Kg |
| Handheld Head Cable Length | 10m |
| Laser Beam Shape | Center Point and Circle |
| Laser Output Mode | CW. QCW. PWM. Argon. |
| Welding Materials | Sus, Aluminum. |
| Wire Feeding | Support |
| Machine Size | Customized |
| Machine Weight | Customized |
HanWei Aluminium Laser Welding Machine HW-F-3000w is a perfect choice for welding aluminium alloy and other metals. With HanWei Fiber Laser Source, it offers low laser spark and high laser beam quality. The water chiller cooling system ensures stability and accuracy of welding process. It is widely used for welding aluminium alloy, power battery, automotive components and exterior parts. It is excellent in automating the welding process to ensure fast welding speed and high precision. It is an ideal choice for efficiently welding aluminium alloys in various industries.
