QCW Laser Thin Metal Precision Welding Industrial Laser Welding Machine Laser Pulser Peak Power
Industrial Laser Welding Machine HW-D Diode Laser
Collimation continuous (QCW) fiber laser source is a reasonable choice for long pulse and high peak power’s industrial application. For example: spot welding, seam welding. The design is used for replacing some YAG laser source’s welding application. Get minimum maintenance cost and reduce service fee. QCW can easy to reform available most systems.

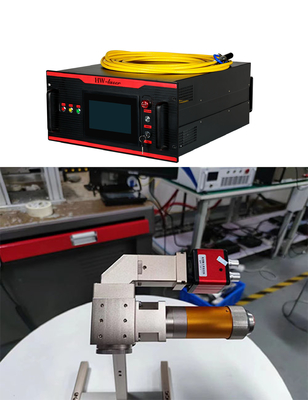

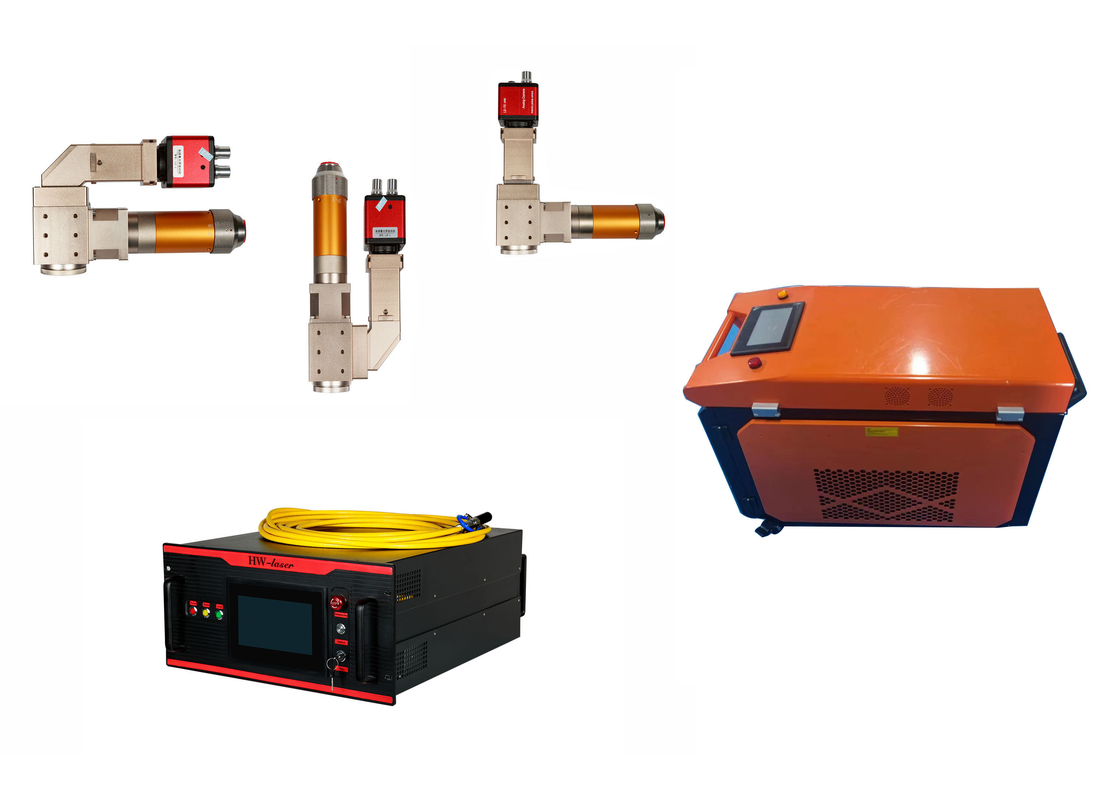

QCW laser welding head matching to Hanwei QCW laser source or low power of fiber laser source used to high precision welding, like thin metal welding, computer, communication, consumer parts welding. It is a low cost and high effective products. There are three types in total: F / Y / T. Suitable for many occasions and meet different need.
1.Unique QCW (Can be set any wavelength of spot welding), PWM(Adjust), CW (continue), Laser output mode, with Up slow and Down slow function.
2.Excellent output power / energy stability.
3.High peak power, can working brass, aluminum and other high reflection materials.
4.Up to 30% power conversion efficiency. Economic and environmental protection. Compact structure and forced air-cooling type.
QCW Laser Source
| Laser source | Model | HW-Q-50 | HW-Q-75 | HW-Q-150 | HW-Q-300 | HW-Q-450 | HW-Q-600 |
| Wavelength nm | 1070± 10% | 1070± 10% | 1070± 10% | 1070± 10% | 1070± 10% | 1070± 10% | |
| Output Power | 50W | 75W | 150W | 300W | 450W | 600W | |
| Max peak power | 0.5kw | 0.75kw | 1.5kw | 3kw | 4.5kw | 6kw | |
| (m s) Pulse width | 0.5-10 | 0.5-10 | 0.5-50 | 0.5-50 | 0.5-50 | 0.5-50 | |
| Max pulse energy | 5 J | 7.5 J | 15 J | 30 J | 45 J | 60 J | |
| Repeat frequency | 100Hz | 100Hz | 100Hz | 2KHz | 2KHz | 2KHz | |
| Power stability | ≤ ± 1% | ≤ ± 1% | ≤ ± 1% | ≤ ± 1% | ≤ ± 1% | ≤ ± 1% | |
Power supply |
Working mode | Pulse | Pulse | Pulse / Continue | Pulse / Continue | Pulse / Continue | Pulse / Continue |
| Input voltage | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz | |
| Power consumption | 1.6Kw | 1.8Kw | 2Kw | 2.5Kw | 3Kw | 4Kw | |
| Cooling | Cooling method | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | External cooling |
|
Controller |
Mode | Max saves 20 kinds | Max saves 32 kinds mode | ||||
| Counter | 9999 bits output laser total count | ||||||
| Error alarm | All of false alarms displayed, and can query. | ||||||
| Structure | Dimension mm | 555*430*250 | 665*450*300 | 665*450*450 | |||
| Weight | 17Kg | 22Kg | 28Kg | 34Kg | 42Kg | ||
QCW Laser Head
| Model | HW-QCW-36-QBH |
| Usable Power | 600 W maximum |
| Collimating length | 80 / 100 / 120 / 150 / 200 |
| Focus length | 150 / 200 / 250 / 350 |
| Interface type | QBH |
| Accessible wave range | 1064 |
| Head Type | Customized |
| Net weight | 1.1 kg |
| Usable laser source | QCW laser source |
The QCW laser welding machine is used in welding situations with high welding process requirements and convenient optical path movement. It can weld fine microelectronic components, aerospace, automotive industry, medical equipment, hardware, watches, precision motors for mobile phones, battery electrodes, and other thin films
Our industrial laser welding machine, HanWei HW-Q, is a superior product for your laser welding needs. With its origin from Shenzhen, China, this machine is highly automated and provides fast welding speed. It is highly portable and of moderate cost, making it a great choice for industrial welding needs.
This machine is ideal for 18650 battery laser welding needs. Its advanced features make it suitable for fast, reliable, and efficient welding.
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.
Hanwei Laser Equipment Co.,Ltd is a leading corporation of laser welding systems for a variety of industries, is the worldwide innovation leader in the development of components and system solutions in the field of laser welding technology, including automobile battery, new energy resources, energy storages, aerospace, jewelry, metal processing, medical, plastic, and more.
Hanwei laser Founded in 2016, the company has over two decades of experience in the industry and utilizes the latest technology to provide innovative, reliable, and high-quality laser solutions.
Great changes are driven by technology. And technologies change the world.
The company offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.
Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.
The company has a reputation for excellent customer service, quality products, and innovative solutions, which have made it a trusted name in the laser welding industry.
