Soldering Semiconductor Laser Diode Laser Industrial Laser Welding Machine For Soldering
Industrial Laser Welding Machine HW-D Diode Laser
Laser soldering technology uses a precisely focused laser beam spot to irradiate the solder pad area. After absorbing laser energy, the solder pad area rapidly heats up to melt the solder, and then stops laser irradiation to cool and solidify the solder, forming solder joints. Due to only local heating of the solder pad area, the rest of the entire component is almost unaffected by heat, and the laser irradiation time during welding is usually only a few hundred milliseconds. Non contact welding has no mechanical stress effect on the welding pad, resulting in higher space utilization.
Laser soldering uses a semiconductor laser, which operates through an excitation method. The semiconductor material (i.e., electrons) is used to transition between energy bands and emit light. Two parallel reflective mirrors are formed using the cleavage surface of the semiconductor crystal as reflecting mirrors, forming a resonant cavity to oscillate and feedback light, generating radiation amplification of light and outputting laser. The stability of laser output energy and the algorithm of power control have a direct impact on welding quality.
1.Fast heating speed, can achieve local rapid heating, and has little thermal impact on the solder pad and component body.
2.Non contact welding, does not damage the circuit board, does not generate static electricity, and does not generate stress due to contact.
3.Controllable welding energy and precise temperature control.
4.High energy density and high heat transfer efficiency.
5.Suitable for situations where traditional welding techniques are difficult to apply, such as high temperature sensitivity, miniaturization, and narrow spaces.
6.The laser spot range is 0.2-3mm, with higher welding accuracy.

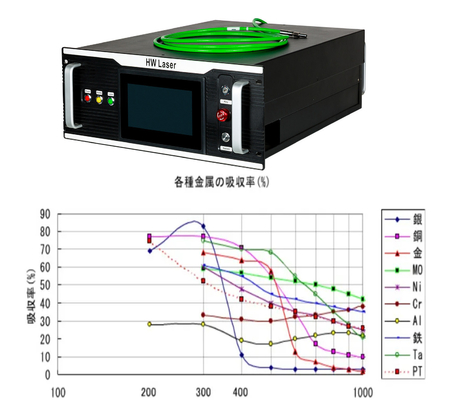

Diode Laser Source
| Lasser Source | Model | HW – D - 60 | HW – D - 100 | HW – D - 200 | |
| Laser wavelength | 808 / 915 / 945 / 980 (Option). 915 as standard | ||||
| Wavelength range | ±5nm | ||||
| Max output power | 60W | 100W | 200W | ||
| Optical spectrum width (F WHM) | ±3 | ||||
| Fiber core | 100 um / 200 um | ||||
| Valve pore diameter | 0.22 | ||||
| Fiber connector | SM 90 5/D80 | ||||
| Pulse width | PWM / 0nm ~ + ∞ | ||||
| Pulse repeat frequency | 100 pps | ||||
| Adjust guide beam | Guide beam (Red) | ||||
| Output stability | 3% | ||||
Power supply |
Input power | AC 220V / 50Hz or 60Hz | |||
| Equipment power | 300W | 500W | 1000W | ||
| Working way | Continue / Adjust / QCW | ||||
| Cooling | Cooling way | Air | Water | ||
| Controller | Save | Max 32 kinds of working mode set and save. | |||
| Wave form controller | Can set any wavelength | ||||
| Counter | Laser output count | ||||
| 9999 bits laser output total count | |||||
| Error alarm | Display all of error and alarm and can be select. | ||||
| System Spec | Dimension size | 525*430*225 | |||
| Weight | 18 Kg | ||||

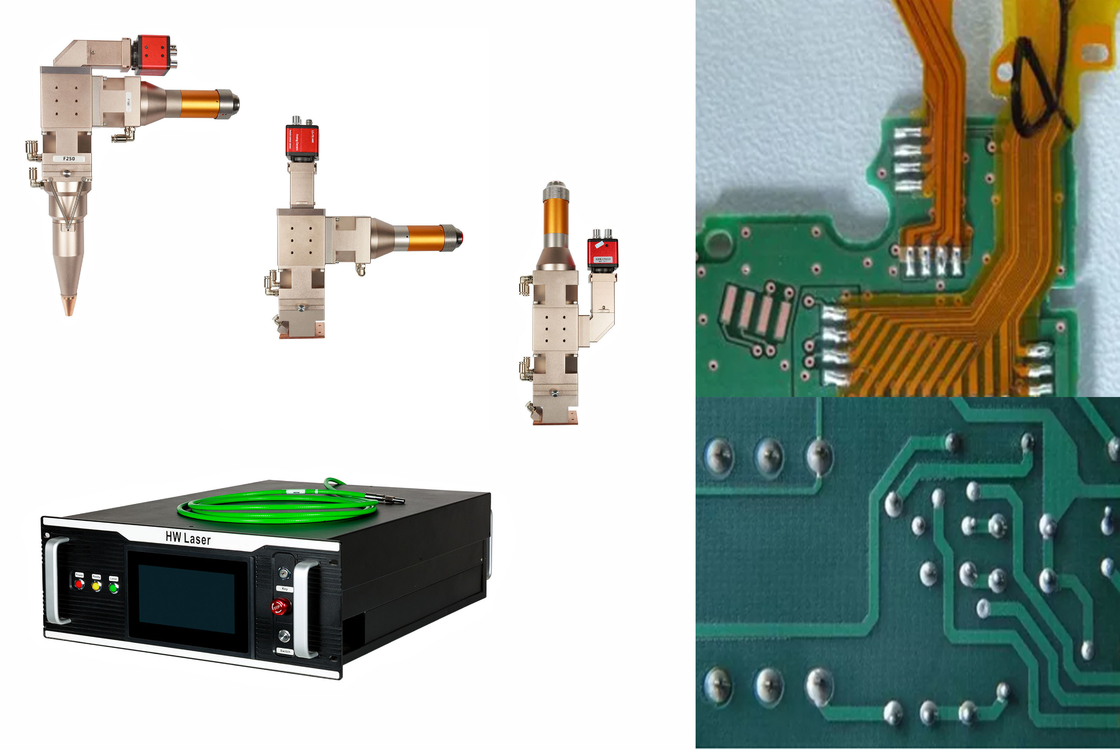

Laser Welding Head
| Diode Laser Head Model | HW-36-XXXXXX – T - QBH | HW-50-XXXXXX – F - QBH |
| Usable Power | 200 W maximum | 500-4000 W maximum |
| Collimating length | 80/100/120/150/200 | 100 / 150 / Customized |
| Focus length | 80/100/120/150/200 | 80/100/120/150/200 |
| Interface type | SMA 905 / D80 | SMA 905 / QBH |
| Accessible wave range | 1064 | 1064 |
| Head Type | F / T / Y | F / T / Y |
| Net weight | 1.1 kg | 2.7 Kg |
| Usable laser source | Diode laser source | Diode laser source |
Tin soldering: Phone 3C (Phone connector, FPCB panel, camera), Auto parts (auto sensor, switch, auto connector, PCB panel), others (Television, coils, sensor, signal antenna).
Our industrial laser welding machine, HanWei HW-D, is a superior product for your laser welding needs. With its origin from Shenzhen, China, this machine is highly automated and provides fast welding speed. It is highly portable and of moderate cost, making it a great choice for industrial welding needs.
This machine is ideal for 18650 battery laser welding needs. Its advanced features make it suitable for fast, reliable, and efficient welding.
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
