The handheld laser welding machine can complete the welding of dissimilar steels and metals. It has the advantages of fast speed, small deformation, small heat affected zone, beautiful and flat welds, no/few pores, and low pollution, making it suitable for fine welding. The handheld laser welding machine has low energy consumption, simple and easy to learn operation, and can be operated by ordinary employees after short-term exercises, saving labor costs. The welding head can be equipped with 10 meters of optical fiber, which is flexible and convenient for outdoor welding. The welding depth is large, firm and fine, and not easy to deform, suitable for complex welding. Moreover, it meets the requirements of multi angle and multi position welding, overcoming the limitations of workspace travel space. At the same time, handheld laser welding machines need to be handheld, so for welding large and medium-sized parts, handheld welding machines can be selected as platform type large laser welding machines due to limitations.
HanWei 1500w Handheld Laser Welding Machine adopt HW double motor wobble laser welding head. The handheld head have various laser beam shapes for selection to different welding requirements. The welding area can adjustable through laser beam diameter control 0.5-5mm size. The Laser output Mode also have different mode for selection such as CW, QCW, PWM, Argon.
1500w laser can weld stainless steel up to 4mm and aluminum up to 3mm by high speed and high efficiency.
The 1500w Handheld laser welding machine HW-ZJS-1500 is a machine really worth owning :
1. Small size Machine. Save space in user factory.
2. The small size machine with wheels, its easy to move to the place where needed welding machine.
3. Handheld Welding gun weight is 0.7kg only, mini size, comfort to hold.
4. Advanced control system : Touch screen parameter setting digital control system.
5. Long cable length from machine body to handheld gun. 10m, 20m, 30m... customized. Usually use 10m/20m cable length.
6. Large and Adjustable welding beam size : 0.5 - 5mm.
7. Laser Beam Shapes have various type. According to welding requirements select.
The Handheld Laser Welding Head double motor wobble type with laser welding range adjustment, light weight, laser beam shape is a Line which width can adjustable up to 5mm maximum, more depth of fusion advantages to adapt to use in different scenes.
HanWei Laser Independent develop the full set and put on the market. Products with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.7 kg). The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.
| Model | HW-DZJS-1500 |
| Laser Source | Fiber Laser Source |
| Laser Power | 1500W |
| Water Chiller | Integrated Inside Machine |
| Control System | HanWei Touch Screen Digital Parameter Setting Control System |
| Handheld Welding Head | Double Motor Wobble Head |
| Handheld Head Weight | 0.7Kg |
| Handheld Head Size | 21.6*28.7cm |
| Handheld Head Cable Length | 10m or Customized up tp 100m |
| Laser Beam Size | 0.5 - 5 mm Adjustable |
| Laser Beam Shape | 6 Kind of Beam Shape |
| Laser Output Mode | CW. QCW. PWM. Argon. |
| Welding Materials | Sus, Aluminum. |
| Wire Feeding | Support |
| Machine Size | 100cm*42cm*69cm |
| Machine Weight | 70Kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |
Handheld Laser Welding Machine Product Show:
Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.
Standard single route wire feeding device
Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.

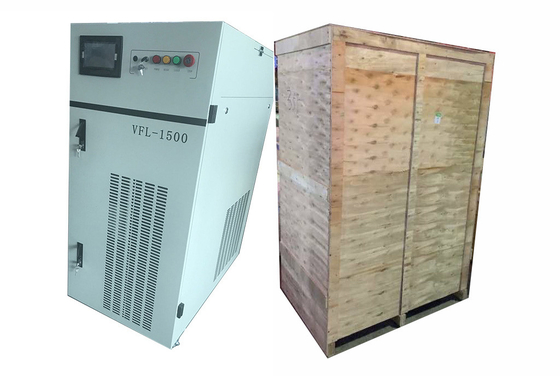

Paper Box Packing

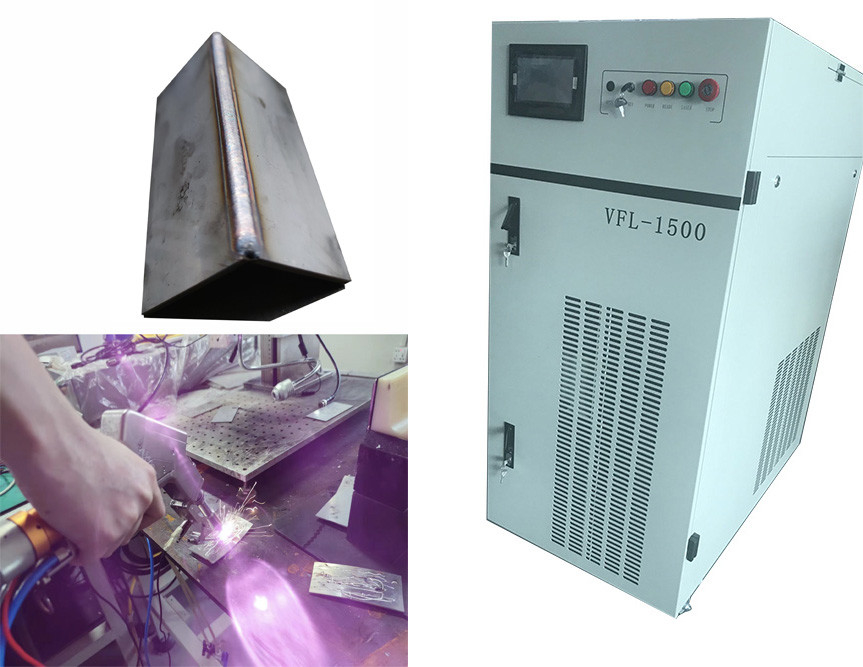

Welding Sample Show
Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
