Three-In-One Function : Laser Welding + Laser Cleaning + Laser Cutting.
The handheld laser cleaning gun of fiber laser cleaning machine is a portable device that uses laser technology to remove contaminants, such as rust, paint, or dirt, from various surfaces.
Laser cleaning is generally considered an environmentally friendly method since it does not involve the use of chemicals or generate hazardous waste. However, it is essential to consider any specific regulations or safety guidelines regarding laser use in your area.
The Handheld Welding Gun Three-In-One Laser Head is a perfect combination of high-tech laser welding,cleaning,cutting technology and adopt advanced touch screen digital control system.
HanWei 2000w Three-In-One Handheld Laser Machine adopt high quality and famous brand laser source, integrated water chiller inside of machine.
The machine with HW single motor wobble laser welding,cleaning,cutting head.
The single motor welding gun working area can adjustable through laser beam diameter control 0.5-5mm size for welding, 0.5-50mm size for cleaning. The Laser output Mode also have different mode for selection such as CW, QCW, PWM, Argon.
2000w laser can weld stainless steel up to 5mm and aluminum up to 4mm by high speed and high efficiency.
The 2000w Three-In-One Handheld laser machine HW-DZJS-2000 is a machine really worth owning :
1. Small size Machine. Save space in user factory.
2. The small size machine with wheels, its easy to move to the place where needed welding machine.
3. Handheld Welding gun weight is 0.7kg only, mini size, comfort to hold.
4. Advanced control system : Touch screen parameter setting digital control system.
5. Long cable length from machine body to handheld gun. 10m, 20m, 30m... customized. Usually use 10m/20m cable length.
6. Large and Adjustable welding beam size : 0.5 - 5mm.
7. High precision cleaning area : 0.5-50 mm Adjustable.
8. Easy to switch the cutting mode.
1.Laser Welding Function :
The Three-In-One Handheld Laser Head welding function is same as special handheld laser welding head. Just in the control system have one more function for switching Laser Cleaning mode.
2.Switching cleaning mode from welding mode just need to click CLEANING button in touch screen monitor. Then tore down the front welding part of handheld welding head, After that replace the special focus lens.
3.Switching cutting mode from welding mode, just need to replace a special cutting nozzle.
All of switching process in Three-In-One Handheld laser head is simple and easy to operate.
Three-In-One Handheld laser machine Features and Advantages:
| Model | HW-DZJS-2000 |
| Laser Source | Fiber Laser Source |
| Laser Power | 2000W |
| Water Chiller | Integrated Inside Machine |
| Control System | HanWei Touch Screen Digital Parameter Setting Control System |
| Handheld Welding Head | Single Motor Wobble Head |
| Handheld Head Weight | 0.7Kg |
| Handheld Head Size | 21.6*28.7cm |
| Handheld Head Cable Length | 10m |
| Laser Beam Size | 0.5 - 5 mm welding / 0.5 - 50 mm cleaing Adjustable |
| Laser Beam Shape | Line"-" |
| Laser Output Mode | CW. QCW. PWM. Argon. |
| Welding Materials | Sus, Aluminum. |
| Wire Feeding | Support |
| Machine Size | 100cm*42cm*69cm |
| Machine Weight | 70Kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |

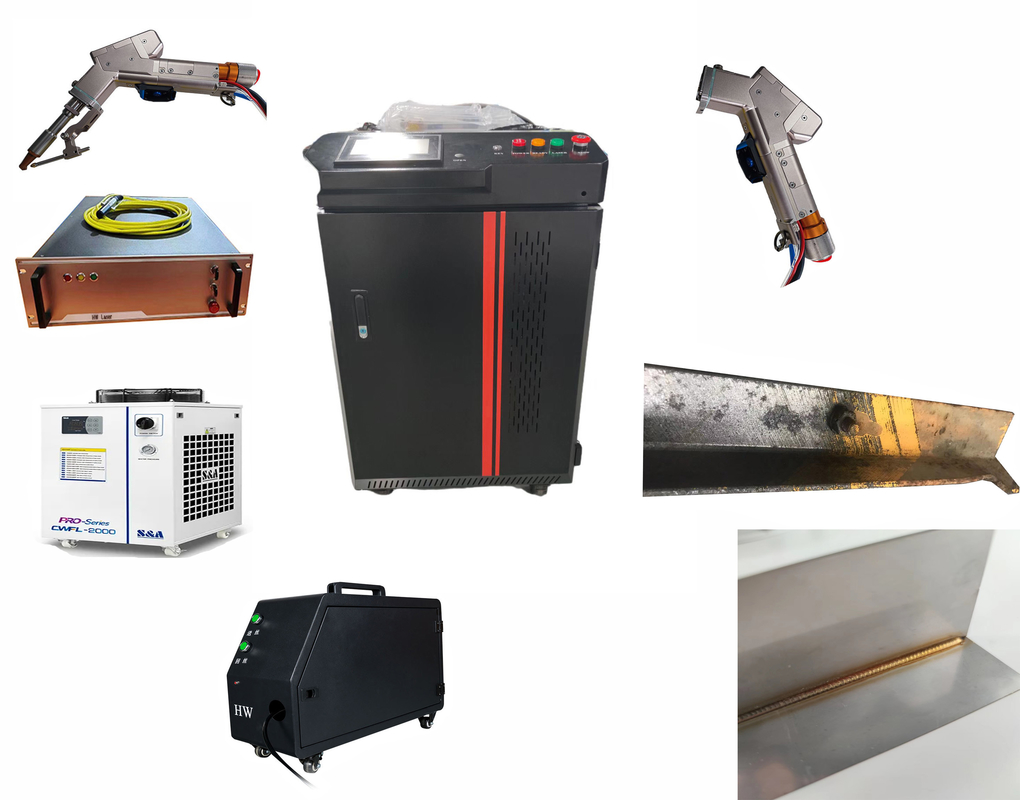

Handheld Laser Welding Machine Product Show:
Handheld Laser Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.
Standard single route wire feeding device
Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.

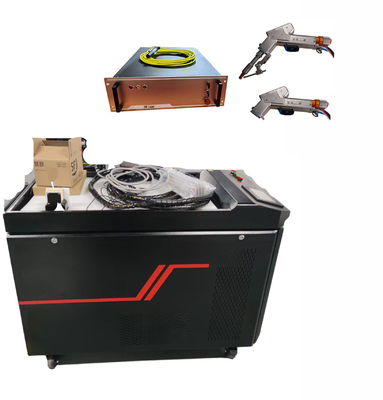

Paper Box Packing
Welding Sample Show
Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
The HanWei HW-20-60150 is a handheld laser welding head with high accuracy and advanced techonology. It is designed to provide a reliable and efficient welding solution for a variety of industrial applications.
This handheld laser gun is suitable for welding wire and can be used with a water-cooled welding head for maximum efficiency. It offers superior performance and accuracy and is ideal for a variety of industrial applications.
We provide technical support and service for Handheld Welding Head.
We offer a range of services to keep your Handheld Welding Head running optimally, including:
If you have any questions about our technical support and service for Handheld Welding Head, please contact us.
Packaging and Shipping of Handheld Welding Head:
The Handheld Welding Head will be securely packaged with sufficient cushioning material to ensure that it does not incur any damage during transportation. The packaging is made of durable and eco-friendly materials that can withstand the harsh conditions of shipping. The product will be shipped using a reliable and insured shipping service such as FedEx, UPS, or DHL to ensure that it reaches the customer safely.
