Handheld welding is mainly aimed at laser welding of long-distance and large workpieces, overcoming the limitations of workbench travel space. During welding, the heat affected area is small, which will not cause deformation, blackening, or traces on the back. Moreover, the welding depth is large, the welding is firm, and the melting is sufficient. It can not only achieve thermal conductivity welding, but also continuous deep penetration welding, spot welding, butt welding, overlap welding, sealing welding, seam welding, etc.
HanWei 1500w Handheld Laser Welding Machine adopt high quality and famous brand laser source, integrated water chiller inside of machine. The machine with HW single motor wobble laser welding head. The single motor welding gun working area can adjustable through laser beam diameter control 0.5-5mm size. The Laser output Mode also have different mode for selection such as CW, QCW, PWM, Argon.
1500w laser can weld stainless steel up to 4mm and aluminum up to 3mm by high speed and high efficiency.
The 1500w Handheld laser welding machine HW-DZJS-1500 is a machine really worth owning :
1. Small size Machine. Save space in user factory.
2. The small size machine with wheels, its easy to move to the place where needed welding machine.
3. Handheld Welding gun weight is 0.7kg only, mini size, comfort to hold.
4. Advanced control system : Touch screen parameter setting digital control system.
5. Long cable length from machine body to handheld gun. 10m, 20m, 30m... customized. Usually use 10m/20m cable length.
6. Large and Adjustable welding beam size : 0.5 - 5mm.
The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.
| Model | HW-DZJS-1500 |
| Laser Source | Fiber Laser Source |
| Laser Power | 1500W |
| Water Chiller | Integrated Inside Machine |
| Control System | HanWei Touch Screen Digital Parameter Setting Control System |
| Handheld Welding Head | Single Motor Wobble Head |
| Handheld Head Weight | 0.7Kg |
| Handheld Head Size | 21.6*28.7cm |
| Handheld Head Cable Length | 10m |
| Laser Beam Size | 0.5 - 5 mm Adjustable |
| Laser Beam Shape | 6 Kind of Beam Shape |
| Laser Output Mode | CW. QCW. PWM. Argon. |
| Welding Materials | Sus, Aluminum. |
| Wire Feeding | Support |
| Machine Size | 100cm*42cm*69cm |
| Machine Weight | 70Kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |

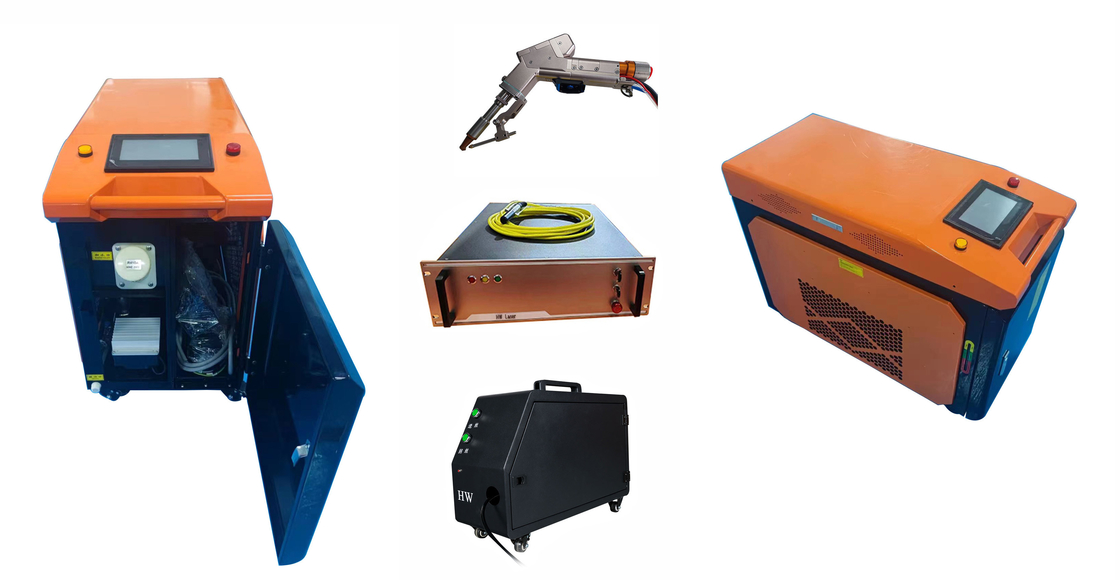

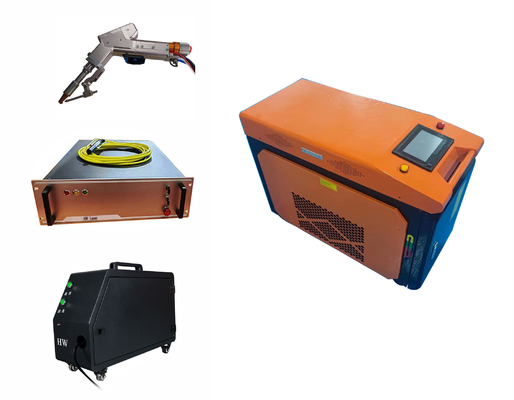

Handheld Laser Welding Machine Product Show:
Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.
Standard single route wire feeding device
Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
Paper Box Packing
Welding Sample Show
Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
