Description
The copper, has a specific gravity of 8.93 g/cm3 and a melting point of 1083 ℃. It has high conductivity, thermal conductivity, plasticity, corrosion resistance, and good low-temperature performance. It is one of the important metal materials in industry.
The Feature of Copper as following :
1.Strong thermal conductivity, copper has high thermal conductivity and requires the use of high-power heat sources; And preheat the welding parts before welding can be carried out.
2.The molten copper liquid has high fluidity and can only be welded in the flat welding position. If one side butt welding is to be carried out in a spatial position, a backing plate must be added to ensure penetration and achieve good formation.
3.The thermal expansion and contraction are large, and the linear expansion coefficient of copper is large. The phenomenon of thermal expansion and contraction during the welding process is particularly obvious, resulting in significant deformation after welding.
4.Oxidation, copper easily oxidizes in liquid form to form cuprous oxide, which dissolves in copper liquid. During crystallization, eutectic crystals with lower melting points are generated, which exist at the grain boundaries of copper, reducing plasticity and easily causing cracks.
5.Porosity, high solubility of hydrogen in liquid copper; After solidification, the solubility decreases again. During welding, the weld cools quickly, and excess hydrogen cannot escape in time, forming hydrogen pores. In addition, at high temperatures, cuprous oxide reacts with hydrogen and carbon monoxide to generate water vapor and carbon dioxide. If all of them cannot escape before solidification, pores are also formed.
Argon arc welding is the best welding method for copper and copper alloys, which can protect the molten pool from oxidation and gas dissolution. Heat concentration can reduce deformation and ensure welding penetration. Gas welding, manual arc welding, etc. can also be used, but suitable process measures should be taken because the resistance value of copper is small and resistance welding is not suitable.
Copper is a relatively difficult material to weld, and fusion welding methods include gas welding, carbon arc welding, manual arc welding, and manual tungsten argon arc welding. Can be selected based on quality requirements, process level, and technical conditions.
AMB - Adjustable Mode Beam Laser Source, HanWei Laser have devoted itself to Research and Development for many years. AMB welding with Less-spatter, High speed welding, high plumpness welding features. And also, with HanWei independent developed laser control system.
The AMB welding technology specially used to copper, brass, aluminum welding industries. It is worth noting that these materials have strong reflectivity towards lasers, we called it high reflective materials in laser processing field.
AMB Benefits Welding in Automotive Applications Providing Spatter-free Welds with Improved Weld Aesthetics and Formability.
The stabilization of the weld pool virtually eliminates spatter, maximizes uptime and significantly reduces rework of welded parts.
Advantage
Independent research and development, produce and sale.
High reflective materials welding like copper, brass and aluminum with low-spatter, achieve better welding seam.
High quality welding, the welding surface achieve stable quality.
High speed welding.
Low welding part pollution.
Specification
| Model | HW-F-1000W | HW-F-1500W | HW-F-2000W | HW-F-3000W | 4000 – 6000 W |
| Laser Power | 1000 W | 1500 W | 2000 W | 3000 W | 6000w |
| Wavelength | 1070 nm | 1070 nm | 1070 nm | 1070 nm | 1070 nm |
| Output power | 1000 W | 1500 W | 2000 W | 3000 W | 6000w |
| Working mode | CW/QCW/PWM | CW/QCW/PWM | CW/QCW/PWM | CW/QCW/PWM | CW/QCW/PWM |
| Cooling way | Water | Water | Water | Water | Water |
| Equipment power | 5 KW | 7 KW | 9 KW | 13 KW | 25 KW |
| Source Dimension | 665*450*450mm | 665*450*450mm | 665*450*450mm | 665*450*450mm | 865*450*450mm |
| Source Weight | 50 Kg | 50 Kg | 50 Kg | 50 Kg | 60 Kg |

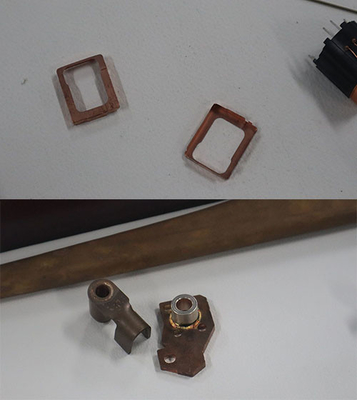

Product Show

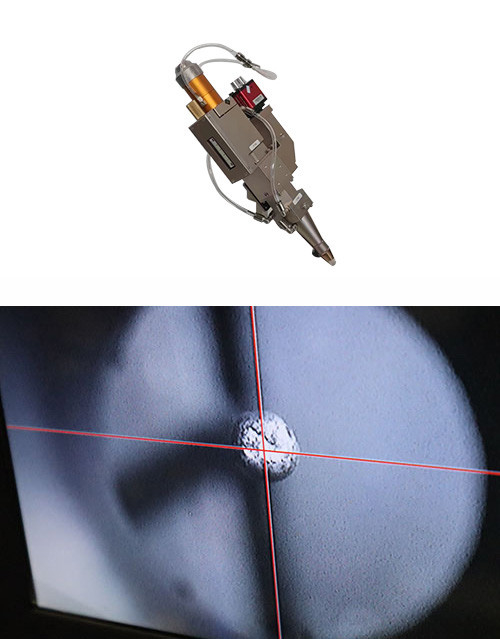

We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
