Wobble Laser For Hybrid Blue laser and Fiber laser beam path recombination laser welding machine
Description

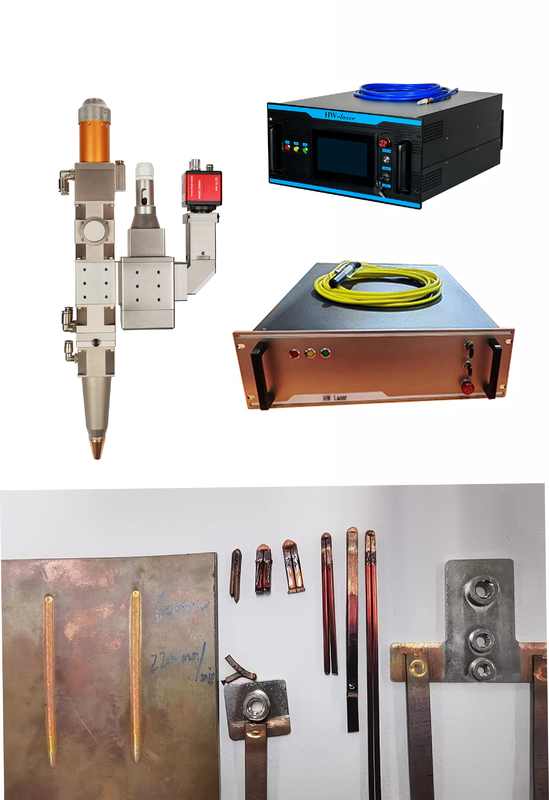

Blue laser (450nm) and fiber laser (1064nm) Hybrid-laser wobble welding can achieve blue laser source and fiber laser source coaxial recombination. It is used in thick and highly reflective metal welding (gold, silver, copper, aluminum). By wobble method make itself used more widely and technical parameter. The reflective materials have more highly absorptivity for blue-fiber hybrid laser make less spark in welding process and achieve quality welding and nice welding surface.
Widely used in new energy industry, semiconductor industry:
1.Independent R&D all software and hardware
2.More than 70% high absorptivity. Reduce much more equipment power than red guide beam laser to reduce cost.Suitable for thick and highly 3.reflective material welding.
4.During welding with low spark, high and stable welding quality. Achieve deep penetration and smooth welding surface.

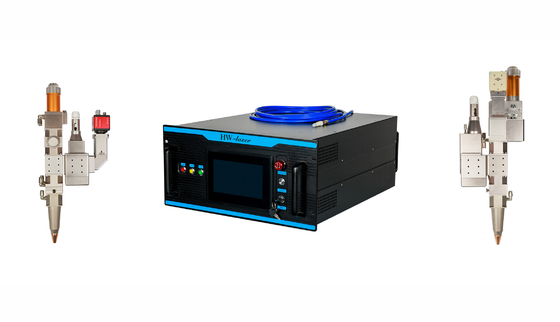

HanWei Wobble Laser Hybrid Diode and Fiber Laser beam welding head, its referring to the use of beam shaping lenses, oscillated lenses,laser control system to achieve uniform effects on the laser beam spot.
During welding, the welding gun swings left and right at a certain frequency, causing the welding joint to form a certain wave shape, thereby increasing the width and depth of the welding head.
Laser Source Specification
| Model | HW-FH-1700W | HW-FH-2200W | HW-FH-3200W |
| Laser Power |
Blue laser 200 W Fiber laser 1500W |
Blue laser 200 W Fiber laser 2000W |
Blue laser 200 W Fiber laser 3000W |
| Wave length | 445nm + 1064nm | 445nm + 1064nm | 445nm + 1064nm |
| Power stability | ± 0.5 % | ± 0.5 % | ± 0.5 % |
| Cooling method | Water | Water | Water |
| Equipment power | 6500 W | 7500 W | 11000 W |
| Pulse width | 0.5 - CW | 0.5 - CW | 0.5 - CW |
| Remark | Blue laser power optional | ||
Single Motor - Wobble Laser Welding Head Specification
| Hybrid Laser Welding Head Model | HW-LFH-70100200-Y-D80 | HW-LFH-70100200-Y-QBH |
| Laser Power |
Blue laser 200 W Fiber laser 2000W |
Blue laser 1000 W Fiber laser 2000W |
| Collimating length | Blue 70 – Fiber 100 | Blue 70 – Fiber 100 |
| Focus length | 200 | 200 |
| Interface type | D80 - QBH | QBH - QBH |
| Accessible wave range | 450nm + 1064nm | 450nm + 1064nm |
| Head Type | Y | Y |
| Net weight | 2.5 kg | 2.5 kg |
| Usable laser source | Blue and Fiber laser source | Blue and Fiber laser source |
Double Motor - Wobble Laser Welding Head Specification
| Dual Motor Welding Head Model | HW-36-70-100200-Y-QBH |
| Laser Power |
Blue laser 1000 W Fiber laser 3000 W |
| Collimating length | Blue 70 – Fiber 100 |
| Focus length | 150 / 200 |
| Interface type | QBH - QBH |
| Accessible wave range | 450nm + 1064nm |
| Laser beam size adjustable | 0.5 – 5mm |
| Laser beam type | ―,○,◎,⊙,△,8 |
| Head Type | Y |
| Net weight | 2.5 kg |
| Usable laser source | Blue and Fiber laser source |
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
