Wobble Laser Head For Diode laser and Fiber laser beam path recombination laser welding machine
Description
HanWei Diode laser (915nm) and fiber laser (1064nm) Hybrid-laser output laser at the same time to weld on aluminum to reduce internal gas hole defection, and also increase welding speed to achieve welding point stability during high-speed welding.
HW-Hybrid Diode&Fiber laser system Widely used in new energy resources industry.
In fiber coupled semiconductor lasers, the laser beam generated by the laser is first modulated by a modulator, which can control the laser and meet different application requirements Then, the laser beam is coupled into the optical fiber through a coupling device The purpose of coupling is to efficiently transmit laser energy into the fiber and maintain high-quality transmission The coupling efficiency directly affects the output power and stability.

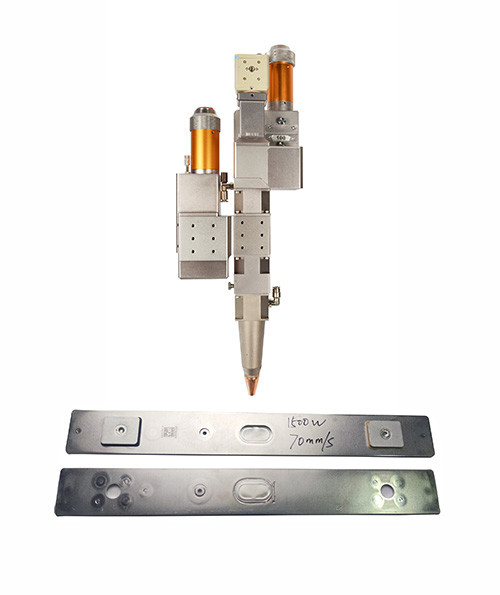

HanWei Wobble Laser Hybrid Diode and Fiber Laser beam welding head, its referring to the use of beam shaping lenses, oscillated lenses,laser control system to achieve uniform effects on the laser beam spot.
During welding, the welding gun swings left and right at a certain frequency, causing the welding joint to form a certain wave shape, thereby increasing the width and depth of the welding joint.
Advantage
1.Independent R&D all software and hardware.
2.Cover of power battery welding.
3.After welding get deep welding penetration and smooth surface.
4.Good sealing performance, high yield.
5.Flexible adaptative to automatic lines and different station work table.
6.Diode and fiber laser welding head with dual motor as optional, could weld more widely welding seam.
Hybrid Diode and Fiber Laser Combined Wobble Laser Welding Head Specification:
| Hybrid Laser Welding Head Model | HW-D-FH-XXXXXX |
| Laser Power |
Diode laser ≤ 30000 W Fiber laser ≤ 4000 W |
| Collimating length | Diode 110 – Fiber 100/120/150 |
| Focus length | 200 |
| Interface type | QBH - QBH |
| Accessible wave range | 915nm + 1064nm |
| Head Type | Y |
| Net weight | 2.5 kg |
| Usable laser source | Diode and Fiber laser source |
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
