1000w 2000w Wobble Laser Welding Head With 300mm Cleaning Area
| Model: | HW-20-50500 | Weight: | 0.7kg |
| Size: | 114*242mm | Cleaning area: | 0.5~300mm Adjustable |
| Laser source: | Fiber Laser Source | Laser power: | 1000w~2000w |
| Control monitor: | Touch Monitor Parameter Setting | Language: | Customized |
| High Light: | Wobble Laser Welding Head 1000w,300mm Wobble Laser Welding Head |
||
Wobble Laser Welding Head Mode Change To Wobble Cleaning With 300mm Cleaning Area
HanWei Laser beam wobble, its referring to the use of beam shaping lenses, oscillated lenses,laser control system to achieve uniform effects on the laser beam spot.

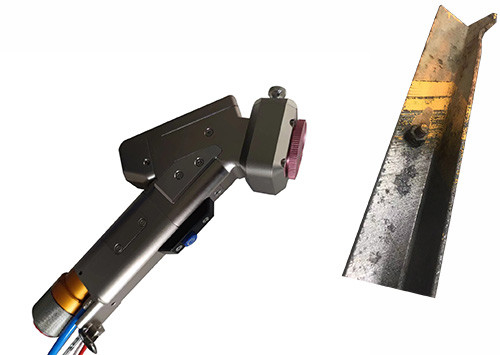

The Handheld Welding Gun Three-In-One Laser Head is a perfect combination of high-tech laser welding,cleaning,cutting technology and adopt advanced touch screen digital control system.
The laser welding gun is equipped with an advanced fiber laser control system and internal structure, and its head weight is only 0.7Kg, making it easy to control and portable.
There are various cleaning methods in the traditional cleaning industry, mostly using chemical agents and mechanical methods for cleaning.
Laser cleaning has the characteristics of no grinding, non-contact, no thermal effect, and is suitable for cleaning objects of various materials, and is considered the most reliable and effective solution. Meanwhile, laser cleaning can solve problems that cannot be solved using traditional cleaning methods.
*The control system is very easy and requires little prior knowledge on the part of the operator.
| Model | HW-20-50500 |
| Usable Power | 1000W-2000W |
| Focal length | 500 |
| Collimate focus | 50 |
| Interface type | QBH |
| Accessible wave range | 1064 |
| Net weight | 0.7 kg |
| Usable laser source | Most of laser source |
