The handheld laser cleaning head of three-in-ine fiber laser machine is exclusively designed and manufactured by HanWei Laser : laser Cleaning, laser Welding, laser Cutting functions integrated in one laser machine unit.
HanWei Fiber Laser Welding Head of Wobble laser welding machine is the perfect solution for laser welding applications, designed to provide high speed and high penetration welding solutions.The welding process is smooth, high welding speed, the device with low failure rate.It also provides excellent reliability with minimal energy consumption and low maintenance cost.
HanWei Laser beam wobble, its referring to the use of beam shaping lenses, oscillated lenses,laser control system to achieve uniform effects on the laser beam spot.
Laser Cleaning Function In Wobble Laser Three-In-One Laser Head.
There are various cleaning methods in the traditional cleaning industry, mostly using chemical agents and mechanical methods for cleaning.

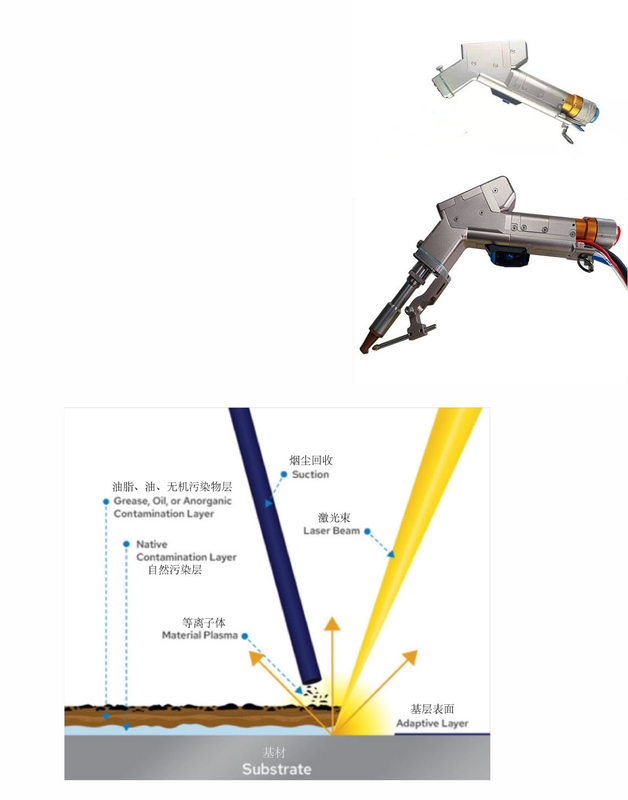

When the surface of the workpiece is coated with submicron sized pollution particles, these particles often stick tightly and cannot be removed by conventional cleaning methods. However, cleaning the surface of the workpiece using nano laser radiation is very effective. Due to the non-contact cleaning of the workpiece by laser, it is very safe to clean precision workpieces or their fine parts, ensuring their accuracy. So laser cleaning has unique advantages in the cleaning industry.
Laser Cleaning Head in Three-In-One Laser machine Features:
1.Switching cleaning mode from welding mode just need to click CLEANING button in touch screen monitor. Then tore down the front welding part of handheld welding head, After that replace the special focus lens.
2.Switching cutting mode from welding mode, just need to replace a special cutting nozzle.
All of switching process in Three-In-One Handheld laser head is simple and easy to operate.
3. The three-in-one handheld laser welding gun structure is simple and advanced,easy to operate and maintenance.The control system design is user-friendly, set laser welding parameter in touch screen monitor, can save 31 kinds of welding parameter for various material and thickness.It is with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.7 kg).
| Model | HW-20-60150 |
| Usable Laser Power | 1000W-2000W |
| Handheld Cleaning focusing length | 500mm |
| Cleaning Area | 50mm maximum |
| Handheld Welding focusing length | 150mm |
| Welding Area | 5mm maximum |
| Cutting capacity | According to Laser Power |
| Handheld Laser head weight | 0.7 Kg |
2. Ease of Use.
3. Versatility.
4. Precision and Quality.
5. Increased Efficiency.
6. Environmental Protection.
Laser Cleaning Head Product Show:

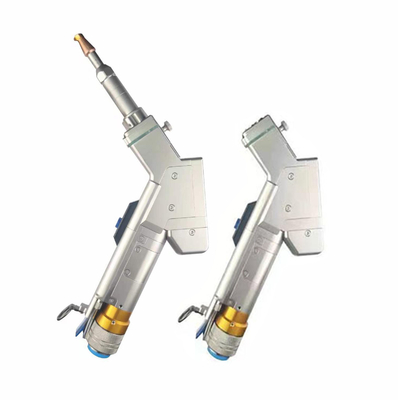

Handheld Laser Head Three-In-One. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.
Standard single route wire feeding device
Paper Box Packing
Welding Sample Show
