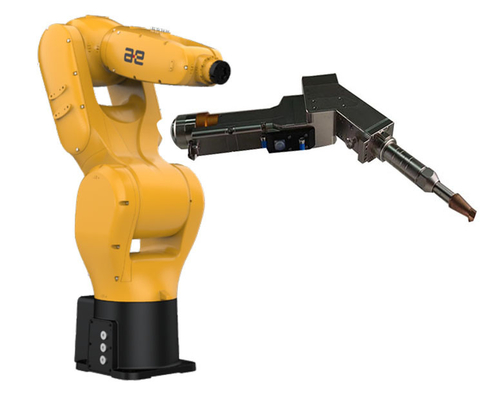

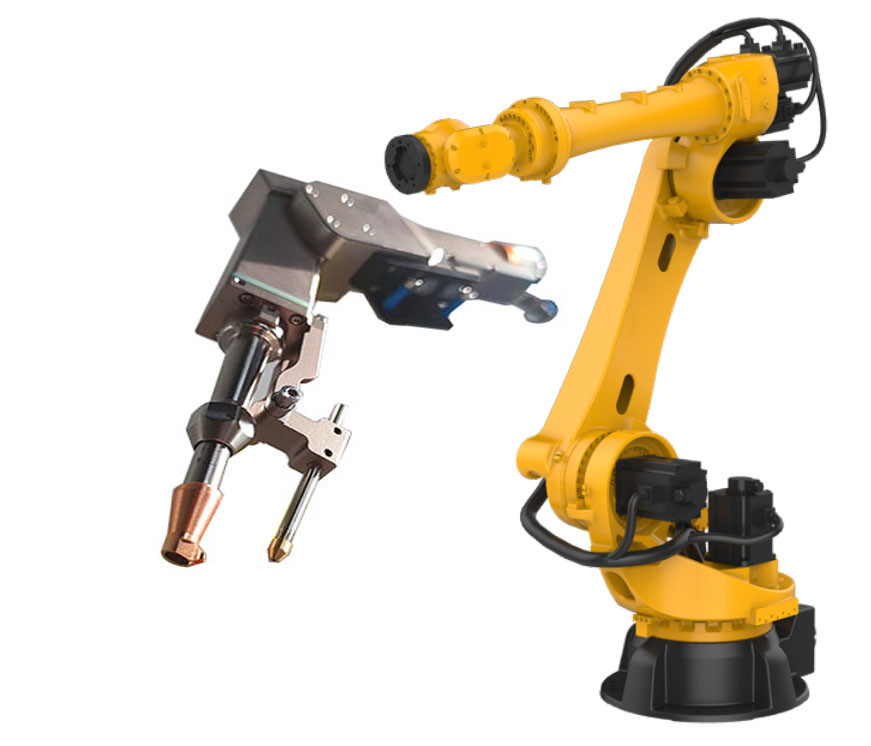

Double Motor Wobble Laser Handheld Welding Gun For Robot Welding 2000w
| Head Type: | Portable Handheld Laser Gun With Double Motor | Head Weight: | 0.7Kg |
| Cable Length: | 5m / 10m / 20m | Control System: | Touch Screen Digital Control System |
| Remote control: | Support | Laser Power: | 2000w |
| High Light: | Wobble Laser Handheld Welding Gun,Double Motor Laser Handheld Welding Gun,handheld laser welding gun 2000w |
||
Double Motor Wobble Laser Welding With 5mm Beam Adjust And Various Beam Shape For Robot Welding
Wobble Laser Welding Head Product Description:
HanWei Fiber Laser Welding Head of Wobble laser welding machine is the perfect solution for laser welding applications, designed to provide high speed and high penetration welding solutions.The welding process is smooth, high welding speed, the device with low failure rate.It also provides excellent reliability with minimal energy consumption and low maintenance cost:
- Product Name: Fiber Laser Welding Wobble Laser Head.
- Laser head and Laser control system as whole one set ,special design for Laser welding solution.
- Laser Power: Up to 2000w.
- Fast Welding and High Penetration.
- Improve welding quality for irregular welding seam and bigger welding seam.
- Cooling System: High effective water cooling structure inside of welding head.
- Protection System: Precision gas route structure prevent dust in the welding head.
- Fiber Laser Welding Machinery Main Part.
- Fiber Laser Welding System.
- Fiber Laser Welding Device.
HanWei Laser beam wobble, its referring to the use of beam shaping lenses, oscillated lenses,laser control system to achieve uniform effects on the laser beam spot.
The Handheld laser welding gun has special control system, which can make output laser beam shape becomes various shapes, and the laser beam working area is adjustable from 0.5-5mm. These functions meets various welding requirements that offers precise and efficient welding for stainless steel,aluminium,steel,galvanized sheet metal.
Technical Specification:
| Parameter | Data |
|---|---|
| Name | Handheld Welding Head Portable Laser Gun |
| Laser Source | Fiber Laser Source 2000w |
| Cable Length | 20m maximum |
| Laser Power | Up To 2000w |
| Head Weight | 0.7Kg |
| Laser Welding Area | 0.5~5mm Adjustable |
| Wire Feeding Material | Stainless Steel And Aluminum |
| Cooling Method | Water Cooling |
| Wobble Laser | 14 kinds of laser shape |
| Control System | Touch Screen Digital Control System |
Applications:
1.Sheet metal welding industry.
2.Metal tube welding industrn.
3.Shipbuilding industry.
4.Furniture fideld.
5.Kitchenware field.
6.Hardware field.
7.Doors and Windows field.
8.Electronical Industry.
Customization:
- Brand Name: HanWei
- Model Number: HW-20-50150
- Place of Origin: Shenzhen.China
- Cooling Method: Water Cooling
- Control System: Touch Screen Digital Control System
- Laser Power: Up To 2000w
- Name: Handheld Welding Head
- Head Weight: 0.7Kg
Support and Services:
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
Packing and Shipping:
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.
