Double Motor Portable Wobble Laser Welding Head With 14 Beam Shapes

1 set
MOQ
Negotiation
Price
Double Motor Portable Wobble Laser Welding Head With 14 Beam Shapes
Features Gallery Product Description Request A Quote
Features
Specifications
Head Type: Portable Handheld Laser Gun With Double Motor
Head Weight: 0.7Kg
Cable Length: 5m / 10m / 20m
Control System: Touch Screen Digital Control System
Remote Control: Support
Laser Power: 2000w
High Light:

Wobble Laser Welding Head Portable

,

Double Motor Wobble Laser Welding Head

,

14 Beam wobble laser welder

Basic Infomation
Place of Origin: Shenzhen.China
Brand Name: HanWei
Certification: CE, FDA
Model Number: HW-20-50150
Payment & Shipping Terms
Packaging Details: Welding head: 9Kg. 39*22*29cm. Wire feeding device: 17Kg. 70*40*65cm. Paper Box.
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 6000 set per year
Product Description

Double Motor Wobble Portable Laser Welding Handheld Head With 14 Beam Shapes

Wobble Laser Welding Head Product Description:

Laser welding is an efficient and precise welding method that utilizes high-energy density laser beams as heat sources. Laser welding is one of the important aspects of the application of laser material processing technology.
When the existing non swinging welding head beam passes through the welding head, the beam diameter is the same as the diameter of the original beam coming out of the optical fiber, which causes transparency, poor welding quality, and complex process adjustment when the product has welds, affecting the yield of the product.
The existing laser welding heads can achieve deeper keyholes when welding products with a single beam of light that does not swing, but with it comes larger splashes that urgently need improvement.
In response to the shortcomings of the existing technology, this utility model provides a laser swing welding head, which has the advantages of improving product quality and reducing welding spatter, and solves the problem of affecting product quality and large welding spatter mentioned in the background technology.

HanWei Wobble Laser handheld laser welding head is designed special for welding operator, it has lightweight portable handheld welding gun, comfort grip, and adopt user-friendly touch monitor for setting parameter. The control system support vasious languages and support customized languages. The welding head cable length support customized in order to improve flexibility, some customers use 20m and even more longer cable because of working space.

The Handheld laser welding gun has special control system, which can make output laser beam shape becomes various shapes, and the laser beam working area is adjustable from 0.5-5mm. These functions meets various welding requirements that offers precise and efficient welding for stainless steel,aluminium,steel,galvanized sheet metal.



Wobble Laser Welding Head Features:

  • Product Name: Handheld Welding Head
  • Head Weight: 0.7Kg
  • Wobble Laser Shape: 14 kinds of laser shape.
  • Laser Beam Working Area: 5mm maximum.
  • Cooling Method: Water Cooling
  • Water in Chiller: purified water
  • Assistant Welding Gas: Argon or Nitrogen
  • Cable Length: Customized
  • Laser Source: Fiber Laser Source
  • Laser Power: 2000w.
  • Electric current: 220v/380v, 50/60Hz - 15v



Technical Specification:



Parameter Data
Name Handheld Welding Head Portable Laser Gun
Laser Source Fiber Laser Source 2000w
Cable Length 20m maximum
Laser Power Up To 2000w
Head Weight 0.7Kg
Laser Welding Area 0.5~5mm Adjustable
Wire Feeding Material Stainless Steel And Aluminum
Cooling Method Water Cooling
Wobble Laser 14 kinds of laser shape
Control System Touch Screen Digital Control System







Applications:



1.Sheet metal welding industry.

2.Metal tube welding industrn.

3.Shipbuilding industry.

4.Furniture fideld.

5.Kitchenware field.

6.Hardware field.

7.Doors and Windows field.

8.Electronical Industry.







Customization:

Customized Handheld Welding Head Services
  • Brand Name: HanWei
  • Model Number: HW-20-50150
  • Place of Origin: Shenzhen.China
  • Cooling Method: Water Cooling
  • Control System: Touch Screen Digital Control System
  • Laser Power: Up To 2000w
  • Name: Handheld Welding Head
  • Head Weight: 0.7Kg
  •



Support and Services:



Handheld Welding Head Technical Support and Service

We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.

If you have any questions or need assistance with our Handheld Welding Head products, please contact us.



HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.

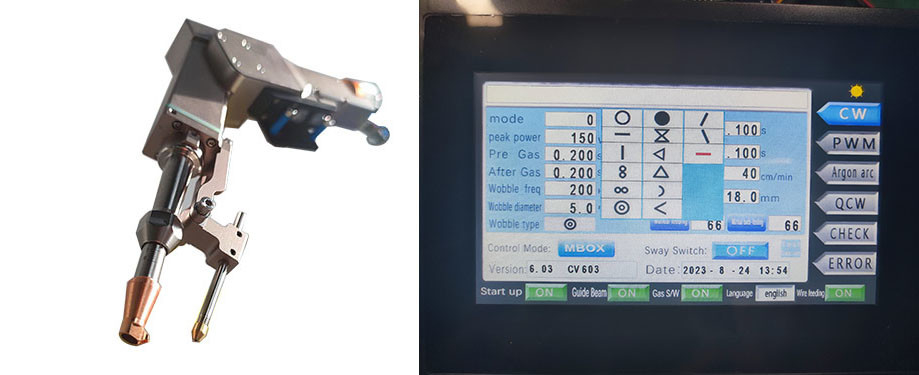

Double Motor Portable Wobble Laser Welding Head With 14 Beam Shapes 0



Packing and Shipping:



Packaging and Shipping

The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.

HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.

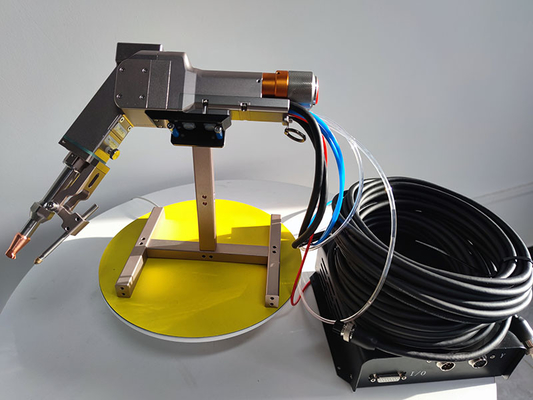

Double Motor Portable Wobble Laser Welding Head With 14 Beam Shapes 1
