| Brand Name: | HanWei |
| Model Number: | HW-20-60150 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 6000 Set per year |
Wobble Laser welding is a new and advanced welding method, it is one of important aspects in material processing technology application.
HanWei Fiber Laser Welding Head of Wobble laser welding machine is the perfect solution for laser welding applications, designed to provide high speed and high penetration welding solutions.The welding process is smooth, high welding speed, the device with low failure rate.It also provides excellent reliability with minimal energy consumption and low maintenance cost.
HanWei Laser beam wobble, its referring to the use of beam shaping lenses, oscillated lenses,laser control system to achieve uniform effects on the laser beam spot.
During welding, the welding gun swings left and right at a certain frequency, causing the welding joint to form a certain wave shape, thereby increasing the width and depth of the welding joint.
| Product Name | Handheld Welding Head |
| Usable Laser Power | 1000W-3000W |
| Laser Source | Fiber Laser Source |
| Interface type | QBH |
| Accessible wave range | 1064 nm |
| Net weight | 0.7 kg |
| Laser head size | 216*287 mm |
| Laser head packing size | 39*22*29cm. |
| Laser head packing gross weight | 9kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |
| Double route wire feeding device packing Info | 30Kg. 79*45*70cm. |
| Usable laser source | Most of laser source |
Handheld Welding Head Product Show:

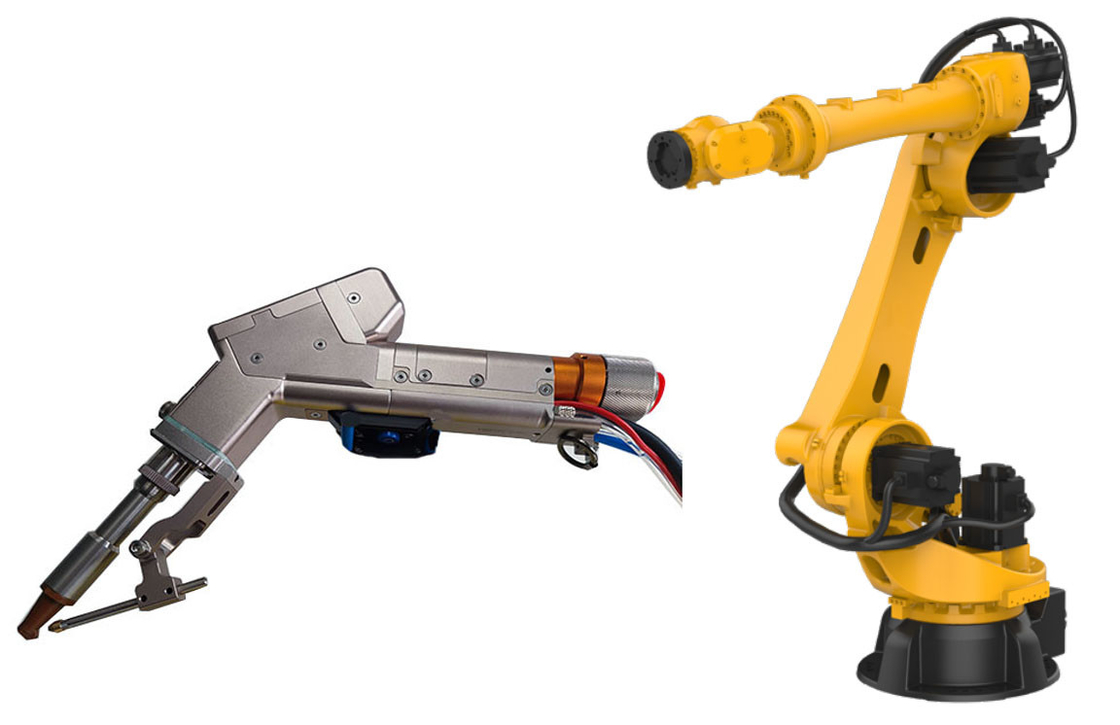

Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.
Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.
Standard single route wire feeding device
Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
Paper Box Packing

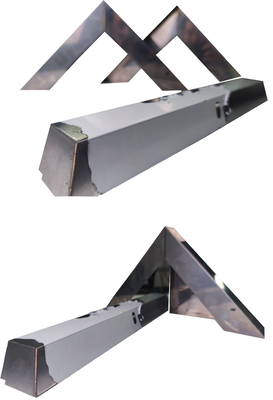

Welding Sample Show
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
