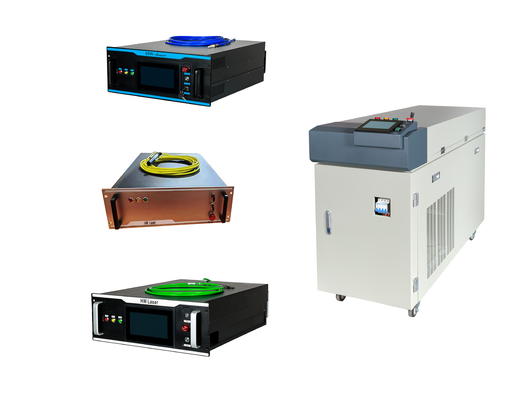

Hybrid Laser Source Serials ABout 1064nm Fiber Laser Yag Laser 915nm Diode Laser 445nm Blue Laser Combined Laser Beam
1064nm Fiber Laser & 915nm Diode Laser Hybrid System Description:
Diode laser (915nm) and fiber laser (1064nm) Hybrid-laser output laser at the same time to weld on aluminum to reduce internal gas hole defection, and also increase welding speed to achieve welding point stability during high-speed welding.
Widely used in new energy resources industry.
1.Independent R&D all software and hardware.
2.Cover of power battery welding.
3.After welding get deep welding penetration and smooth surface.
4.Good sealing performance, high yield.
5.Flexible adaptative to automatic lines and different station work table.
6.Diode and fiber laser welding head with dual motor as optional, could weld more widely welding seam.
| Model | HW-B-FH-1000W | HW-B-FH-2000W | HW-B-FH-3000W | HW-B-FH-4000W |
| Laser Power |
Diode laser 1000 W Fiber laser 1000W |
Diode laser 1000 W Fiber laser 2000W |
Diode laser 1000 W Fiber laser 3000W |
Diode laser 1000 W Fiber laser 4000W |
| Wave length | 915nm + 1064nm | 915nm + 1064nm | 915nm + 1064nm | 915nm + 1064nm |
| Power stability | ± 0.5 % | ± 0.5 % | ± 0.5 % | ± 0.5 % |
| Welding speed | 100mm/s | 140mm/s | 200mm/s | 240mm/s |
| Cooling method | Water | Water | Water | Water |
| Fiber core | 400+50 | 400+50 | 400+50 | 400+50 |
| Equipment power | 7000 W | 10000 W | 12000 W | 15000 W |
| Pulse width | 0.5 - 50 | 0.5 - 50 | 0.5 - 50 | 0.5 - 50 |
| Model | HW-DFH-70100200-QBH |
| Laser Power |
Diode laser ≤ 20000 W Fiber laser ≤ 3000 W |
| Collimating length | Diode 70 – Fiber 100/120/150 |
| Focus length | 150 / 200 |
| Interface type | QBH - QBH |
| Accessible wave range | 915nm + 1064nm |
| Laser beam size adjustable | 0.5 – 5mm |
| Laser beam type | ―,○,◎,⊙,△,8 |
| Head Type | Y |
| Net weight | 2.5 kg |
| Usable laser source | Diode and Fiber laser source |
1064nm Yag Laser & 915nm Diode Laser Hybrid System Description:
YAG and Diode Hybrid-laser welding system made by HW-Y-600 single lamp & rod machine with Diode laser source.
Use Diode laser have preheating to increase absorptivity and keyhole. At the same time laser out to weld aluminum thereby reduce defection of gas hole burst. And also increase stability of molten pool at high speed. Increase welding quality.
Reduce welding energy of single wavelength thereby increase welding speed.
1.Independent R&D all software and hardware.
2.Seal cover of power battery welding.
3.Welding surface is smooth, high-quality welding with high sealing performance.
4.High productivity.
| Model | HW-YD-600-1000 | HW-YD-600-1500 | HW-YD-600-2000 |
| Laser Power |
YAG laser 600 W Fiber laser 1000W |
YAG laser 600 W Fiber laser 1500W |
YAG laser 600 W Fiber laser 2000W |
| Wave length | 915nm + 1064nm | 915nm + 1064nm | 915nm + 1064nm |
| Power stability | ± 0.5 % | ± 0.5 % | ± 0.5 % |
| Output Power | 1600 W | 2100 W | 2600 W |
| Cooling method | Water | Water | Water |
| Fiber core | 400+50 | 400+50 | 400+50 |
| Pulse width | 0.5 - CW | 0.5 - CW | 0.5 - CW |
1064nm Fiber Laser & 445nm Blue Laser Hybrid System Description:
Blue laser (450nm) and fiber laser (1064nm) Hybrid-laser wobble welding can achieve blue laser source and fiber laser source coaxial recombination. It is used in thick and highly reflective metal welding (gold, silver, copper, aluminum). By wobble method make itself used more widely and technical parameter. The reflective materials have more highly absorptivity for blue-fiber hybrid laser make less spark in welding process and achieve quality welding and nice welding surface.
Widely used in new energy industry, semiconductor industry.
More than 70% high absorptivity. Reduce much more equipment power than red guide beam laser to reduce cost.
Suitable for thick and highly reflective material welding.
During welding with low spark, high and stable welding quality. Achieve deep penetration and smooth welding surface:
1.Independent R&D all software and hardware
2.More than 70% high absorptivity. Reduce much more equipment power than red guide beam laser to reduce cost.Suitable for thick and highly reflective material welding.
3.During welding with low spark, high and stable welding quality. Achieve deep penetration and smooth welding surface.
| Model | HW-FH-1700W | HW-FH-2200W | HW-FH-3200W |
| Laser Power |
Blue laser 200 W Fiber laser 1500W |
Blue laser 200 W Fiber laser 2000W |
Blue laser 200 W Fiber laser 3000W |
| Wave length | 445nm + 1064nm | 445nm + 1064nm | 445nm + 1064nm |
| Power stability | ± 0.5 % | ± 0.5 % | ± 0.5 % |
| Cooling method | Water | Water | Water |
| Equipment power | 6500 W | 7500 W | 11000 W |
| Pulse width | 0.5 - CW | 0.5 - CW | 0.5 - CW |
| Remark | Blue laser power optional | ||
.
| Model | HW-36-70-100200-Y-QBH |
| Laser Power |
Blue laser 1000 W Fiber laser 3000 W |
| Collimating length | Blue 70 – Fiber 100 |
| Focus length | 150 / 200 |
| Interface type | QBH - QBH |
| Accessible wave range | 450nm + 1064nm |
| Laser beam size adjustable | 0.5 – 5mm |
| Laser beam type | ―,○,◎,⊙,△,8 |
| Head Type | Y |
| Net weight | 2.5 kg |
| Usable laser source | Blue and Fiber laser source |
Advantage
1.Independent R&D all software and hardware.
2.Cover of power battery welding.
3.After welding get deep welding penetration and smooth surface.
4.Good sealing performance, high yield.
5.Flexible adaptative to automatic lines and different station work table.
6.Diode and fiber laser welding head with dual motor as optional, could weld more widely welding seam.
