Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width

1 set
MOQ
Negotiation
Price
Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width
Features Gallery Product Description Request A Quote
Features
Specifications
Model: HW-20-50500
Weight: 0.7kg
Size: 114*242mm
Cleaning Area: 0.5~300mm Adjustable
Laser Source: Fiber Laser Source
Laser Power: 1000w~2000w
Control Monitor: Touch Monitor Parameter Setting
Language: Customized
High Light:

Handheld Laser Cleaning Head

,

Customized Laser Cleaning Head

,

300mm laser cleaning gun

Basic Infomation
Place of Origin: China
Brand Name: HanWei
Certification: CE, FDA
Model Number: HW-20-50500
Payment & Shipping Terms
Packaging Details: Cleaning head: 9Kg. 39*22*29cm. Paper Box.
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 6000 set per year
Product Description

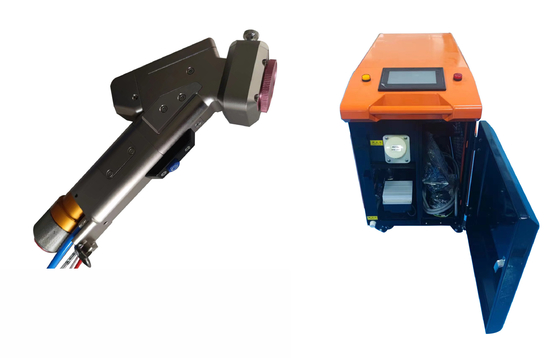

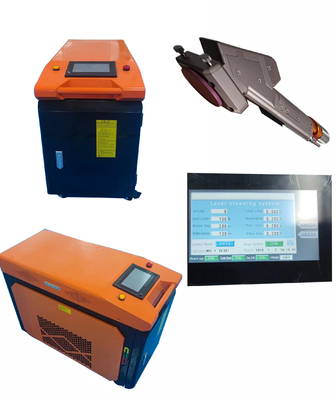

Laser Cleaning Machine Fiber Laser Handheld Cleaning Gun 0.7Kg Weight 300mm Cleaning Width


Laser Cleaning Head in Fiber Laser Cleaning Machine Description:

Portable handheld fiber laser cleaning machine is a laser cleaning tool with many advantages such as portability, lightness, flexible and adjustable parameters, digital control, etc. It can efficiently remove surface rust, stains, oil stains, coatings, etc. of workpieces, and is suitable for industries such as mechanical processing, cultural relic restoration, mold cleaning, food processing, electronic circuits, etc. By utilizing the characteristics of precise positioning, it can meet the processing requirements of various shaped workpieces, Achieve efficient cleaning results.




Laser Cleaning Head in Fiber Laser Cleaning Machine Features And Advantages:

The handheld laser head of the fiber laser cleaning machine has a simple and lightweight appearance, which can be used for a long time by hand. The integrated design of buttons and handles is simple and easy to use. The built-in scanning system adopts a small high-speed motor and drive, and the main body is integrated processing and molding, sturdy, dustproof, and stable and durable. The laser head adopts an innovative red light assisted focusing design, which can easily find the focusing position under different field mirrors using red light indicators, solving the problems of inaccurate focusing and single adjustment methods in existing products on the market.



Laser Cleaning Head in Fiber Laser Cleaning Machine Applications:

Laser cleaning has the characteristics of non grinding and non-contact. It can be used not only to clean organic pollutants, but also to clean inorganic substances, including metal rust, metal particles, dust, etc. Its application effects include rust removal, paint removal, oil removal, cultural relic restoration, glue removal, coating removal, and coating removal. Suitable for cleaning with thick rust and paint layers and deep oil stains, as well as surface roughness and weld cleaning processes, with extremely high efficiency. Application industries: aviation, shipbuilding, cultural relic protection, automotive peripherals, food industry, rail, rubber molds, others

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 0





Specification:
Model HW-20-50500
Usable Power 1000W-2000W
Focal length 500 mm
Collimate focus 50 mm
Interface type QBH
Accessible wave range 1064
Net weight 0.7 kg
Usable laser source Most of laser source





Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 1

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 2

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 3Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 4

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 5

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 6



Support and Services:



Handheld Welding Head Technical Support and Service

We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.

  • Troubleshooting and repair
  • Software updates and upgrades
  • Performance optimization and maintenance
  • Replacement parts
  • User training and education

If you have any questions or need assistance with our Handheld Welding Head products, please contact us.



HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 7



Packing and Shipping:



Packaging and Shipping

The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.

HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 8





HanWei Laser Company Profile

Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 9



Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 10



Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 11



Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 12



Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 13



Customized Handheld Laser Cleaning Head Gun With 300mm Cleaning Width 14





Hanwei Laser Equipment Co.,Ltd is a leading corporation of laser welding systems for a variety of industries, is the worldwide innovation leader in the development of components and system solutions in the field of laser welding technology, including automobile battery, new energy resources, energy storages, aerospace, jewelry, metal processing, medical, plastic, and more.



Hanwei laser Founded in 2016, the company has over two decades of experience in the industry and utilizes the latest technology to provide innovative, reliable, and high-quality laser solutions.

Great changes are driven by technology. And technologies change the world.

The company offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.

Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.

The company has a reputation for excellent customer service, quality products, and innovative solutions, which have made it a trusted name in the laser welding industry.
