2000W Fiber Laser Handheld Welding Head With 5m 10m Cable Length

Basic Properties
Place of Origin: Shenzhen.China
Brand Name: HanWei
Certification: CE, FDA
Model Number: HW-20-50150
Trading Properties
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 6000 set per year
Tags

1000w Handheld Welding Head

Digital Handheld Welding Head

3000w Handheld Welding Head
Specifications
Head Type: Portable Handheld Laser Gun With Double Motor Head Weight: 0.7Kg
Cable Length: 5m / 10m / 20m Control System: Touch Screen Digital Control System
Remote control: Support Laser Power: 2000w
High Light:

2000W Handheld Welding Head

,

10m Cable Handheld Welding Head

,

5m Cable fiber laser welding head
Product Description

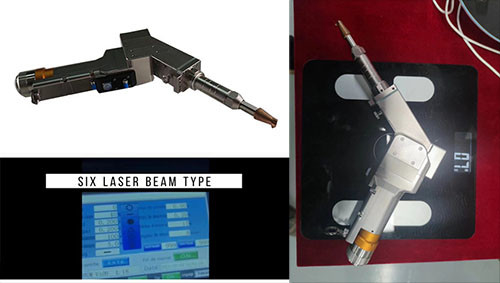

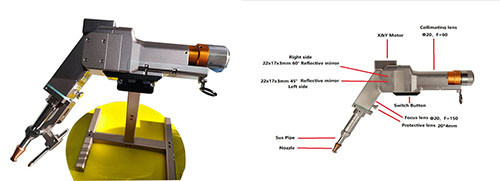

2000W Fiber Laser Welding Portable Laser Head For Handheld Laser Welding

Handheld Welding Head Product Description:

The Fiber laser welding machine with portable handheld laser gun and adopt 2000w fiber laser source is Highly cost-effective and quality efficient equipment: Flexility, Mobility Convenience, Easy Operation, Easy Maintenance, Versatility, Fast Welding, Low Cost are features and advantages of this Laser welding machine.
Handheld laser welding gun as the most significant representative part of laser welding machine, the head design, holding comfort, ease of operation is very important.
HanWei Laser is one of the only a few supplier around the world, who can research and develop the whole set of handheld welding machine : From Handheld welding gun, Laser control system, Wire feeder, Welding parameters for various metal materials welding.
HanWei 2000w handheld laser welding head is designed special for welding operator, it has lightweight portable handheld welding gun, comfort grip, and adopt user-friendly touch monitor for setting parameter. The control system support vasious languages and support customized languages. The welding head cable length support customized in order to improve flexibility, some customers use 20m and even more longer cable because of working space.

The Handheld laser welding gun has special control system, which can make output laser beam shape becomes various shapes, and the laser beam working area is adjustable from 0.5-5mm. These functions meets various welding requirements that offers precise and efficient welding for stainless steel,aluminium,steel,galvanized sheet metal.



Handheld Welding Head Features:

  • Product Name: Handheld Welding Head
  • Head Weight: 0.7Kg
  • Wobble Laser Shape: 14 kinds of laser shape.
  • Laser Beam Working Area: 5mm maximum.
  • Cooling Method: Water Cooling
  • Water in Chiller: purified water
  • Assistant Welding Gas: Argon or Nitrogen
  • Cable Length: Customized
  • Laser Source: Fiber Laser Source
  • Laser Power: 2000w.
  • Electric current: 220v/380v, 50/60Hz - 15v



Technical Specification:



Parameter Data
Name Handheld Welding Head Portable Laser Gun
Laser Source Fiber Laser Source 2000w
Cable Length 20m maximum
Laser Power Up To 2000w
Head Weight 0.7Kg
Laser Welding Area 0.5~5mm Adjustable
Wire Feeding Material Stainless Steel And Aluminum
Cooling Method Water Cooling
Wobble Laser 14 kinds of laser shape
Control System Touch Screen Digital Control System







Applications:



1.Sheet metal welding industry.

2.Metal tube welding industrn.

3.Shipbuilding industry.

4.Furniture fideld.

5.Kitchenware field.

6.Hardware field.

7.Doors and Windows field.

8.Electronical Industry.







Customization:

Customized Handheld Welding Head Services
  • Brand Name: HanWei
  • Model Number: HW-20-50150
  • Place of Origin: Shenzhen.China
  • Cooling Method: Water Cooling
  • Control System: Touch Screen Digital Control System
  • Laser Power: Up To 2000w
  • Name: Handheld Welding Head
  • Head Weight: 0.7Kg
  •



Support and Services:



Handheld Welding Head Technical Support and Service

We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.

If you have any questions or need assistance with our Handheld Welding Head products, please contact us.



HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.

2000W Fiber Laser Handheld Welding Head With 5m 10m Cable Length 0



Packing and Shipping:



Packaging and Shipping

The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.

HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.

2000W Fiber Laser Handheld Welding Head With 5m 10m Cable Length 1
