| Brand Name: | HanWei |
| Model Number: | HW-20-60120 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 6000 Set per year |
The Fiber Laser Welding Head Handheld wobble type is exclusively designed and manufactured by HanWei Laser in 2019.
It was the most popular handheld laser welding head product in the world because of small size, light in weight, fast welding, no deformation after welding, low maintenance and other detail advantages.
The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.
HanWei Laser Independent develop the full set and put on the market. Products with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.8 kg). The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.
The Handheld Laser Welding Head single motor wobble type with laser welding range adjustment, light weight, more depth of fusion advantages to adapt to use in different scenes.
| Model | HW-20-60120 |
| Usable Laser Power | 1000W-2000W |
| Focal length | 120 |
| Collimate focus | 60 |
| Interface type | QBH |
| Accessible wave range | 1064 |
| Net weight | 0.8 kg |
| Laser head size | 180*300 mm |
| Laser head packing size | 39*22*29cm. |
| Laser head packing gross weight | 9kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |
| Usable laser source | Most of laser source |
Handheld Welding Head Product Show:

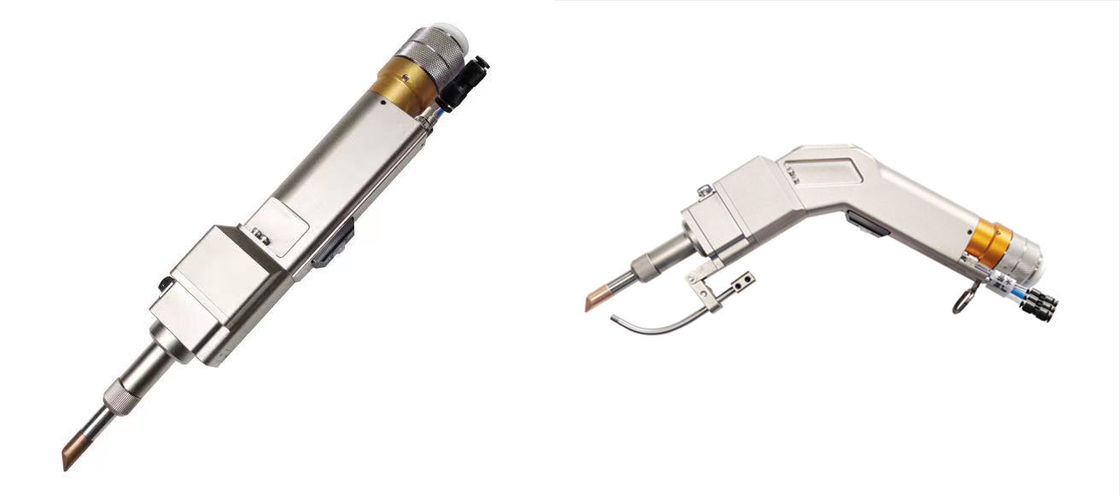

Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.

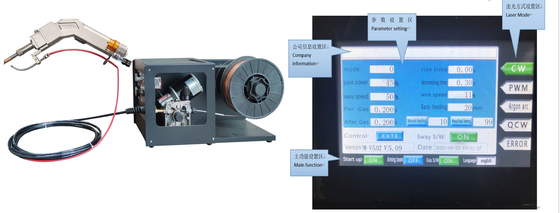

Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.
Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.
Standard single route wire feeding device
Paper Box Packing

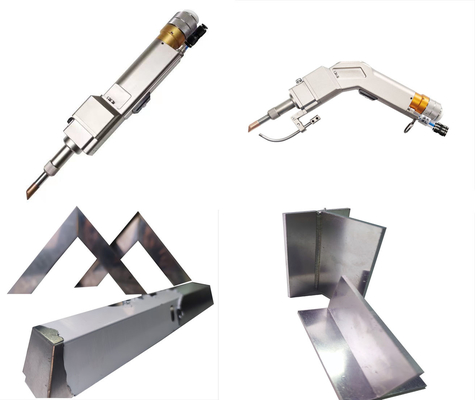

Welding Sample Show

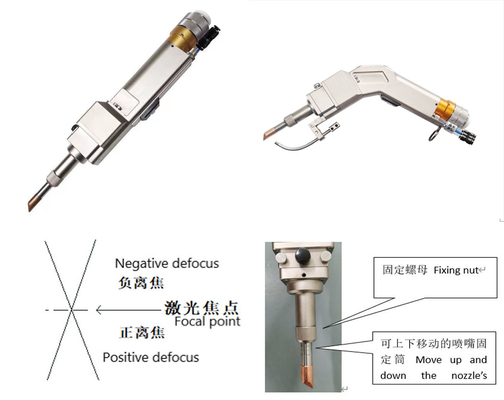

Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.
Welding Head Size
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
