Customized Handheld Welding Head , Double Motor 1000w Fiber Laser Head

The Handheld Laser Welding Machine is mainly composed of a fiber laser source, a water chiller, a laser control system, a handheld laser welding gun.

There are various models and product name of Handheld laser welding gun, some customers asked what is Handheld welding gun with single motor, what is handheld welding gun with double motor,I would like to briefly introduce here:

Actually the laser beam from fiber laser source is fixed, it is a small point just which diameter is 0.5mm only. Through motor lens reflection moving make the laser beam high speed scan on the metal workpiece. The output laser beam shape through motor scanning is various.

1.Single motor Handheld Welding Head:

As indicated by the name, Inside of handheld laser head adopt one motor and one lens on the motor. The lens on the motor moving left and right direction only, so the laser beam shape appear a Line "-".

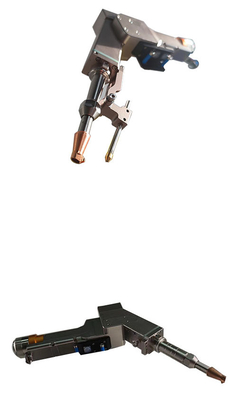

2. Double motor Handheld Welding Head:

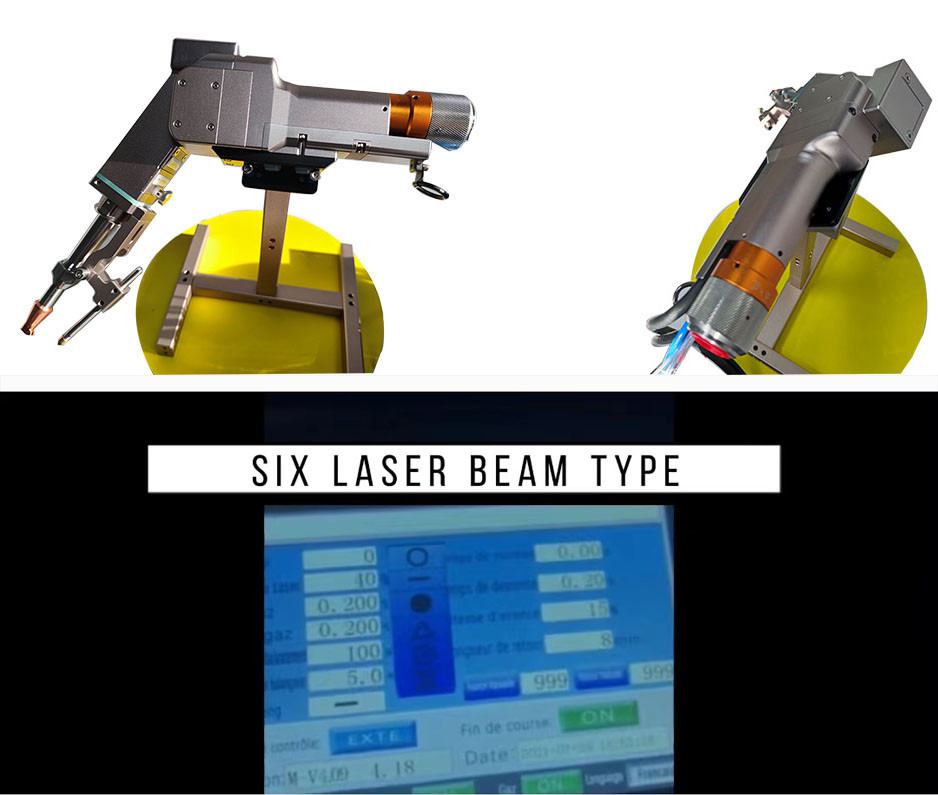

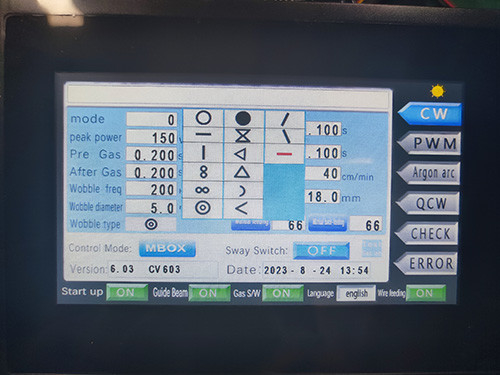

As indicated by the name, Inside of handheld laser head adopt two motors and one lens on each motors. The laser beam through left side lens first then through second side lens. According to these motor lenses moving to form various laser beam shape, there are 14 kinds of laser beam shapes in double motor handheld welding head:

The Handheld Welding Head dual motor wobble type of Fiber Laser Welding Machine is exclusively designed and manufactured by HanWei Laser.

This head with laser welding range adjustment, light weight, various laser beam shape , more depth of fusion advantages to adapt to use in different scenes.

The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.
