| Brand Name: | HanWei |
| Model Number: | HW-20-50150 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 6000 Set per year |
The Fiber Laser Welding Head Handheld double motor wobble type is exclusively designed and manufactured by HanWei Laser.
The Handheld Laser Welding Head double motor wobble type with laser welding range adjustment, light weight, various laser beam shape , more depth of fusion advantages to adapt to use in different scenes.
The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.
HanWei Laser Independent develop the full set and put on the market. Products with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.7 kg). The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.
| Model | HW-20-50150 |
| Usable Laser Power | 1000W-2000W |
| Focal length | 150 |
| Collimate focus | 60 |
| Interface type | QBH |
| Accessible wave range | 1064 |
| Net weight | 0.7 kg |
| Laser head size | 216*287 mm |
| Laser head packing size | 39*22*29cm. |
| Laser head packing gross weight | 9kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |
| Double route wire feeding device packing Info | 30Kg. 79*45*70cm. |
| Usable laser source | Most of laser source |
Fiber Laser Welding Head Product Show:

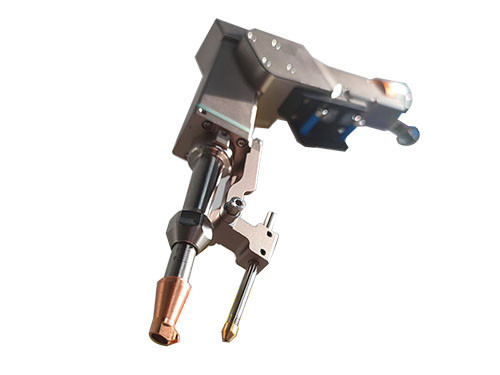

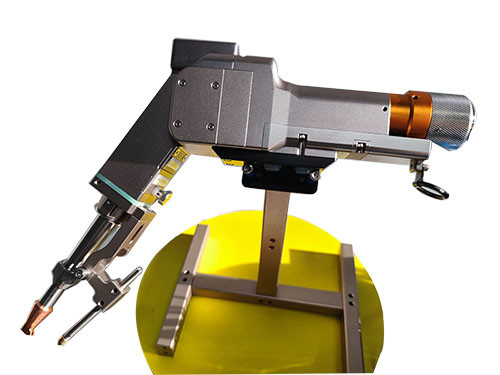

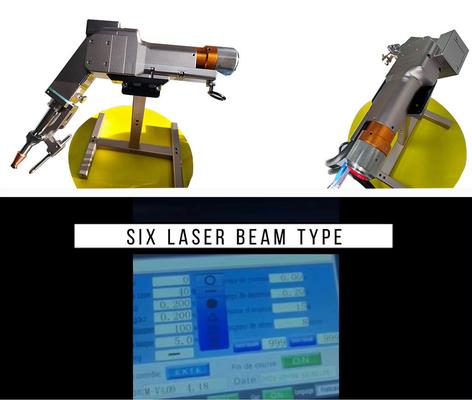

Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.

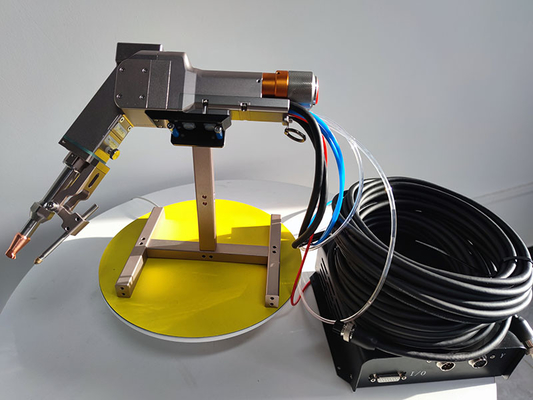

Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.
Standard single route wire feeding device
Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
Paper Box Packing
Welding Sample Show
Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
