Industrial Laser Welding Machine
Created with Pixso.

Water Cooling RS Series - Ring & Spot Laser Welding Machine - Full Version Type for Copper

Water Cooling RS Series - Ring & Spot Laser Welding Machine - Full Version Type for Copper

Brand Name: HanWei
Model Number: HW-DH-2Kw+2Kw
MOQ: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Laser Power:
Up To 6000W
Laser Power Stability:
≤ 3%
Wavelength:
1080 Nm ±3
Frequency(Khz):
1~100
Guide Beam(mW):
≥0.5
Connection:
QBH
Fiber Core(um):
50/100
Cooling Method:
Water Cooling
Fiber Cable Length:
10m (Customized)
Operating Voltage:
380v±10% 50/60Hz
Working Mode:
CW/QCW/PWM
Packaging Details:
Export Plywood Packing
Supply Ability:
2000 Sets / year
Highlight:

Ring and spot laser welding machine

,

Water cooling laser welder for copper

,

Industrial RS series laser welder

Product Description

Water Cooling RS Series - Ring & Spot Laser Welder - Full Version Type for Copper



Water Cooling RS Series - Ring & Spot Laser Welder - Full Version Type for Copper Description:



The Full Version Type of Ring and Spot Laser Welding is a self-developed device featuring adjustable energy for both inner spot and outer ring laser beams. It enables multiple output modes including Gaussian beam (single inner spot), ring laser beam, and hybrid inner spot-outer ring beam patterns. On-site operations allow flexible switching between modes according to welding process requirements. This laser system excellently meets the demands of high-quality laser welding for ultra-complex processes, standing as one of the key products that significantly enhance welding quality and efficiency.

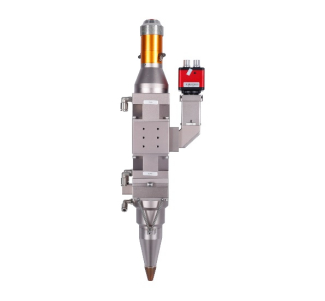

Water Cooling RS Series - Ring & Spot Laser Welding Machine - Full Version Type for Copper 0


Water Cooling RS Series - Ring & Spot Laser Welder - Full Version Type for Copper Features:

1.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

2.Customizable power ratio and fiber core diameter ratio.

3.Equipped with a waveform card which supports QCW (user-defined waveforms for spot welding), PWM modulation, CW (continuous wave), and this laser emission modes with built-in laser power **ramp-up/ramp-down functionality.

4.Stable weld formation and excellent consistency.



Water Cooling RS Series - Ring & Spot Laser Welder - Full Version Type for Copper Technical Parameters:

Model
HW-DH-2Kw+2Kw
HW-DH-3Kw+3Kw
HW-DH-2Kw+4Kw
Laser Power
4000 W 6000 W 6000 W
Working mode
CW/QCW/PWM
CW/QCW/PWM
CW/QCW/PWM
Wavelength
1080 nm ±3
1080 nm ±3
1080 nm ±3
Frequency(Khz)
1-100 1-100 1-100
Guide Beam(mW)
≥0.5
≥0.5
≥0.5
Connection
QBH QBH QBH
Fiber Core(um)
50/100 50/100 50/100
Fiber Cable Length
10m (Customized)
10m (Customized)
10m (Customized)
Operating Voltage
380v±10% 50/60Hz
380v±10% 50/60Hz
380v±10% 50/60Hz
Power Consum
8Kw
12Kw
12Kw
Air Switch Capacity
60A 60A 60A
Work Mode
102 105 105
Working Temp
5~40
Working Humidity
≤70
Cooling Method
Water Cooling
Cooller Temp
25(28Summer)
Chiller Electric
≥12 KW
Machine Dimension
1000*450*850mm
Machine Weight
100 Kg



Water Cooling RS Series - Ring & Spot Laser Welder - Full Version Type for Copper Application:

1.New Energy Resources - Battery.
2.Computer,Communication,Consumer Electronics - 3C Industry.
3.Aluminium, Copper, Stainless Steel High Quality Welding Requirements Industry.

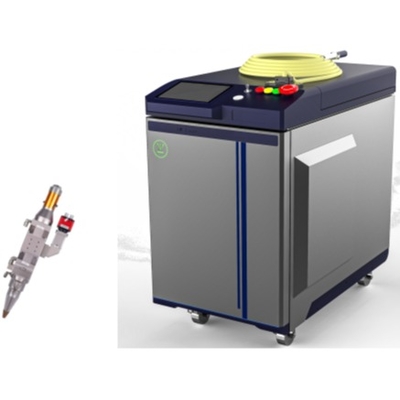

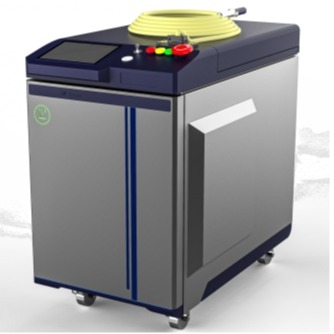

Water Cooling RS Series - Ring & Spot Laser Welding Machine - Full Version Type for Copper 1Water Cooling RS Series - Ring & Spot Laser Welding Machine - Full Version Type for Copper 2



Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser vision for all integrators to use the world’s first-class laser welding technology. The company is one of the few national high-tech and specialized new enterprises in the world that can focus on the research and development, production, and the sales of all types of welding specific lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industry chain.



The products mainly include:

Ring-Spot laser welding machine, blue laser welding machine, blue laser + fiber composite welding machine, Diode + fiber composite welding machine, YAG + Diode composite welding machine, YAG laser welding machine, Diode laser welding machine, Mold repair laser welding machine, QCW laser welding machine, and their supporting laser welding control system, laser welding optical system, and related supporting products for laser welding peripherals.



The company adheres to the principle of ‘R&D as the core, technology as the guarantee, and service as the backing’, and always serves B-end customers (laser equipment and automation companies), and takes ‘reliable quality, continuous improvement, continuous innovation, and considerate service’ as the service goal. HW has always continued to provide integrators with internationally cutting-edge welding products and technical services from component procurement, R&D and manufacturing,assembly testing, and sales services. The company has brought together any outstanding talents in China, and has a group of technical talents who have been engaged in laser welding and development for a long time. In particular, it has rich research in lasers, laser systems, laser power supplies, lase, control, laser optical system design, welding processes research has a wealth of the or etical and practical experience.



The company's products are widely used in new energy batteries, automobiles, automotive parts, electronic circuits, fiber optic

communication devices, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments,

instruments and meters, gold and silver jewelry, medical devices, solar energy, eyewear industry, motor industry, etc. There are a number of products in many industries have irreplaceable welding effect.
