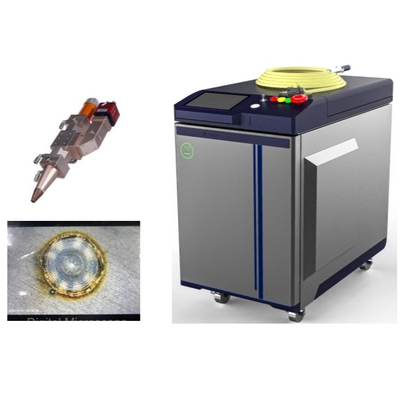

The HW-AMB-ECO laser welding solution is an advanced laser welding technology, whose core mechanism lies in the simultaneous use of an outer ring laser beam and an inner spot laser beam. This combined method ensures more uniform heat distribution and better welding quality.
Traditional laser welding often encounters problems when the localized heat on the workpiece is excessive, such as welding deformation, porosity, and cracks. However, the HW-AMB is like a careful engineer, optimizing heat distribution through multi-point heating. This leads to balanced thermal diffusion, reduced welding stress, and workpieces that are much less likely to deform. The resulting welds are not only visually attractive but also structurally strong, free from cracks or pores—possessing both excellent weld strength and a high-quality surface finish.
The HW-AMB laser produces more consistent and stable welding results. The outer ring beam preheats the workpiece and stabilizes the molten pool, while the central spot beam is responsible for deep penetration welding, resulting in weld seams without porosity or spatter.
HW-AMB stands for Adjustable Mode Beam. Hanwei Laser has spent years researching and developing the AMB laser beam welding system.
In the HW-AMB-ECO model, the core and ring of the laser beam are fixed and non-adjustable, with the AMB laser core ranging from 50 micrometers to 100 micrometers.

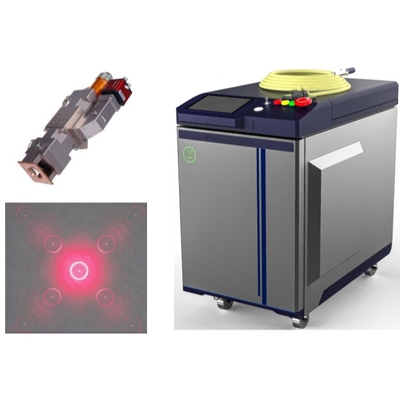

As the focal length varies, slight fluctuations in the light spot emerge. The HW-AMB-ECO laser beam is concentrated onto the workpiece surface through an optical system, generating a laser beam with an outer ring and an inner spot. The outer ring emits laser energy with low power density, whose primary role is to stabilize the molten pool and reduce spatter. In contrast, the inner spot delivers laser energy with high power density, mainly utilized for deep penetration welding.
Ring and Spot Laser Welding Machine for Copper with Smooth & Flat Welding Beads Features:
-
Minimal Spatter – Stabilized weld pools effectively eliminate spatter. Enhanced internal absorption of laser energy within the workpiece’s keyhole and weld pool.
-
High-Performance System – Integrates a laser welding head, laser source, and controller.
-
Rapid Welding – Boasts high operational efficiency.
-
Increased Throughput – Boosts productivity by maximizing uptime and drastically reducing the need for reworking welded components.
-
Maximum Application Versatility – Adapts to a wide range of usage scenarios.
-
User-Friendly Operation & Maintenance – Simple to operate and easy to maintain.
-
Touchscreen Interface – Digital parameter configuration via the monitor.
-
Standard English Language – Controller supports customized language options.
-
Adjustable Laser Beam Size – 0~5mm range, tailored to specific welding needs.
-
Laser Head Design – Features a streamlined internal structure with high sealing performance.
-
Durable Optics – Equipped with a drawer-type mirror holder for easy replacement.
-
Superior Weld Quality – High-integrity weld seams deliver exceptional strength, free from pores, collapse, cracks, or end-face scratches.
-
Automation Compatibility – Suitable for integration with various automated solutions.
-
Competitive Pricing – Offers an attractive quotation.
-
Reduced Operating Costs – Benefits include less machine downtime, minimized post-processing, fewer rejected parts, and highly resistant protective glass.
Ring and Spot Laser Welding Machine for Copper with Smooth & Flat Welding Beads Technical Parameters:
| Model |
HW-DH-ECO-MP |
| Laser Power |
4000 W / 6000 W |
| Laser Source |
HW-DH-Middle Power / HW-DH-High Power |
| Laser Beam |
Ring and Spot |
| Laser Core |
50um / 100um |
|
Laser Power Stability
|
≤ 3% |
| Laser Power adjustable |
10%~100% |
| Rated Input Voltage |
380v 50/60Hz |
| Ambient Humidity |
30%RH~70%RH |
| Controller system |
HW-AMB |
| Laser Head |
HW-AMB-36 |
| Camera and Monitor |
Welding process |
| X axis travel |
Option |
| Y axis travel |
Option |
| Z axis travel |
Option |
| Rotary axis travel |
Option |
| Machine Size |
875*531*849mm |
| Mechanical Software |
HW Laser |
| Display screen |
HW Laser |
| Cooling Method |
Water Cooling |
| Machine Weight |
150 Kg / 200 Kg |
| Ambient Temperature |
5~40℃ |
| Working mode |
CW / QCW / PWM |
| Laser output frequency |
≤ 20 Khz |
| Power Consumption |
≤ 20Kw / ≤ 30Kw |
Ring and Spot Laser Welding Machine for Copper with Smooth & Flat Welding Beads Application:
The HW-AMB-ECO laser welding technology attains efficient, accurate, and dependable welding outcomes via its distinctive laser beam configuration and energy management. It stands as a state-of-the-art welding technique boasting extensive application potential.
1. It has broad application prospects in fields such as battery modules packs, lithium batteries of electric vehicles, etc.
2. Widely used in welding and processing industries such as automobiles.
3. Widely used in special materials welding and processing industries,which itself has high reflectivity for lasers.
4. Widely used in aluminium, copper, brass, gold, silver welding and processing industries.
5. Widely used in welding and processing industries such as consumer electronics.
6. Widely used in welding and processing industries such as ships.
7. Widely used in welding and processing industries such as jewelry.

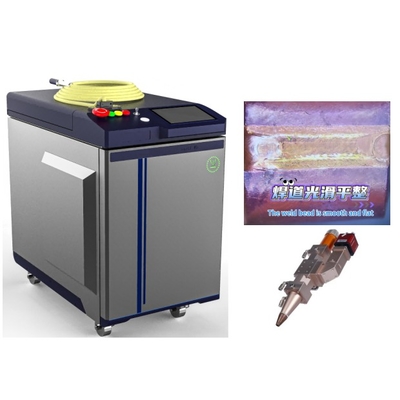

Ring and Spot Laser Welding Machine for Copper with Smooth & Flat Welding Beads Sample:
