Handheld Welding Machine
Created with Pixso.

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions

Brand Name: HanWei
Model Number: HW-20-60150
MOQ: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Detail Information
Place of Origin:
Shenzhen. China
Certification:
CE
Welding Laser Beam Size:
0-5mm Adjustable
Cleaning Laser Beam Size:
0-50mm Adjustable
Handheld Laser Gun Weight:
0.7 Kg
Wire Feeding Device:
Standard Type : 0.8&1.0&1.2&1.6mm Wire
Welding Materials:
Steel / Stainless Steel / Aluminium
Laser Power:
Up To 3000W For Welding And 2000W For Cleaning
Handheld Laser Gun Materials:
Aluminium Alloy & Stainless Steel
Double Route Wire Feeder:
Option ( Same Time Double Route Feeding )
Welding Parameter Storage:
30 Kinds Of Different Welding Parameter Save
Packaging Details:
Export Plywood Packing
Supply Ability:
2000 Sets / year
Product Description

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions





Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Description:



The Handheld Single-Motor Triple-Function Apparatus represents a significant leap forward in the field of portable multi-purpose tools. Driven by a single yet powerful motor, this device combines three essential functions—welding, cutting, and cleaning—all neatly housed in an ergonomically crafted, streamlined handheld shell.

In terms of welding, it precisely controls amperage and voltage to generate a stable arc, enabling strong, accurate welds on various materials like steel, stainless steel, and aluminum. For cutting tasks, a focused high-intensity beam penetrates materials of different thicknesses at adjustable speeds and depths, ensuring clean, efficient cuts. In cleaning mode, it draws in cleaning agents or water and transforms them into a powerful, adjustable high-pressure spray via a flexible nozzle, effectively removing rust, dirt, and contaminants. This apparatus exhibits exceptional versatility, making it suitable for a wide range of environments—including workshops, construction sites, and industrial maintenance areas—and excels in all three core functions.
.



Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions 0

Handheld  Three-in-One Laser Welder  with Welding Cleaning and Cutting Functions Features:

  • Product Name: Fiber Laser Three-in-One Machine
  • Handheld Laser Gun Weight: 0.7kg
  • Laser Power: Up to 3000W for welding and 2000W for cleaning
  • Laser Beam Form: Line “一”
  • Welding Materials: Steel / Stainless Steel / Aluminum
  • Cooling method: Water Cooling
  • Standard Focus length: 60 and 150mm standard Focus length adjustable
  • Welding Laser Beam Size: 0-5mm Adjustable
  • Cleaning Laser Beam Size: 0-50mm Adjustable
  • Laser Head Connection: QBH
  • Gas: Argon / Nitrogen



The Handheld Single-Motor Three-Function Device emerges as a superior option for metal processing, machinery maintenance, and surface pre-treatment in workshops and manufacturing facilities. It employs a maximum power of 3000W for welding and 2000W for cleaning, enabling it to manage steel, stainless steel, and aluminum materials. The laser beam features a linear form and connects via a QBH interface, with a requirement for argon or nitrogen gas.

This handheld laser device, tipping the scales at 0.7 kilograms, is equipped with an adjustable standard focal length ranging from 60 to 150mm. Furthermore, it offers adjustable laser beam diameters for both welding and cutting processes. The welding beam diameter can be modified within 0 to 5mm, while the cleaning beam diameter is adjustable from 0 to 50mm. To ensure efficient heat dissipation during operation, the machine incorporates a water-cooling system, which aids in sustaining stable performance and prolonging its service life.


Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Technical Parameters:



Product Name

Handheld Single Motor Three-in-One Machine

Laser Power

Up to 3000W for welding and 2000W for cleaning

Handheld Laser Gun Weight

0.7 KG

Cleaning Beam Form

Line " 一 "

Standard Focus length

60 and 150mm standard Focus length adjustable

Wire Feeding Device

Standard type : 0.8&1.0&1.2&1.6mm wire

Double Route Wire Feeder

Option (Same time double route feeding)

Welding Laser Beam Size

0-5mm Adjustable

Cleaning Laser Beam Size

0-50mm Adjustable

Fiber Connector

QBH

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Parameter Save

30 kinds of different welding parameter save



Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions 1



Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Application Advantages:


Shenzhen Hanwei Laser Equipment Co., Ltd. dedicates itself to supplying all global integrators with first - rate welding technologies. As a national high - tech enterprise and a newly - certified specialized entity, it zeroes in on the research, development, manufacturing, and sales across a comprehensive industrial chain, which includes welding lasers, laser control systems, laser optical systems, and laser welding techniques. The company’s product portfolio encompasses nine major series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine and the Blue Light Welding Machine, along with their relevant supplementary components.

Hanwei Laser abides by the business philosophy of “prioritizing R&D, supported by technology, and safeguarded by service” to serve B - end clients. It has a proficient team with extensive knowledge and rich experience in laser welding and related fields. The products are widely employed in various sectors, including new energy batteries, automobiles, electronics, and household appliances, exhibiting distinctive welding performances. Notably, the company has attained remarkable technological feats. The AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine stands as a world - leading innovation, overcoming the challenges in welding highly reflective materials. Other models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and the Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have also efficiently resolved specific welding issues in the power battery domain.

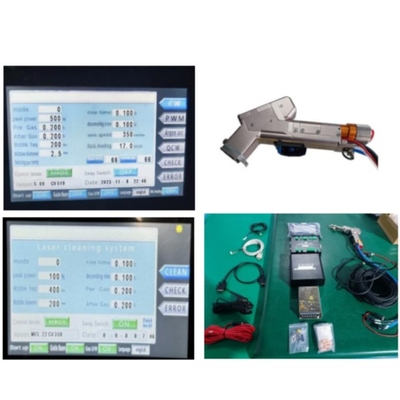

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Packing:


  • Seven kinds of nozzles
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One Focus Lens for cleaning
  • One Safety Switch Clip
  • One Wire feeding device
  • One 15v Power Supply
  • One Handheld Laser Head
  • One Controller
  • One Touch Screen Monitor
  • One User Manual

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. devotes itself to furnishing all global integrators with superior welding technologies. As a national high - tech enterprise and a newly - accredited specialized firm, it centers on the research, development, manufacturing, and sales within a comprehensive industrial chain, encompassing welding lasers, laser control systems, laser optical systems, and laser welding procedures. The company’s product range consists of nine major series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine and the Blue Light Welding Machine, as well as their relevant supplementary parts.



Hanwei Laser adheres to the business principle of “R&D as the priority, technology as the backing, and service as the safeguard” to serve B - end customers. It has a competent team possessing profound knowledge and rich experience in laser welding and related domains. The products are extensively utilized in various industries, including new energy batteries, automobiles, electronics, and household appliances, showcasing distinctive welding capabilities. Notably, the company has achieved remarkable technological breakthroughs. The AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine stands as a world - leading innovation, resolving the issues in welding highly reflective materials. Other models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and the Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have also effectively tackled specific welding challenges in the power battery field.
