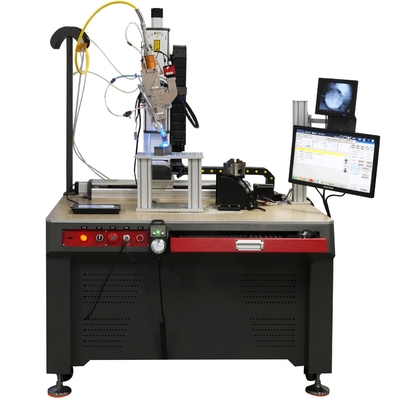

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper
RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding CopperDescription:
HW-AMB-ECO laser welding solution is an advanced laser welding technology, whose core principle is to use an outer ring laser beam and an inner spot laser beam together at the same time to achieve more uniform thermal distribution and higher welding quality. Traditional laser welding often encounters various problems when the local heat of workpiece is too high, such as welding deformation, porosity, cracks... The HW-AMB is like a thoughtful designer, optimizing the heat distribution, multi-point heating, uniform distribution, low welding stress, and the workpiece is not easily deformed.The welding is beautiful and firm, without cracks or pores. Both the weld strength and surface appearance deserve the word 'high-end'.
HW-AMB lasers can provide more uniform and stable welding effects. The outer ring beam can preheat the workpiece and stabilize the molten pool, while the central spot beam performs deep penetration welding to obtain a weld seam without pores and splashes.
HW-AMB-Adjustable Mode Beam, Hanwei laser has been devoted to research and develop the AMB laser beam welding system for many years.
In HW-AMB-ECO type the laser beam core and ring is fixed,can not adjustable.The AMB Laser core is 50um-100um.
There are small changes in the light spot as the focal length changes.
The HW-AMB-ECO laser beam is focused on the surface of the workpiece- through an optical system, forming an outer ring and inner spot laser beams: The outer ring is responsible for transmitting low-power density outer ring laser, mainly used to stabilize the melt pool and reduce spatter. The inner spot is responsible for transmitting high-power density central spot laser, mainly used for deep penetration welding.
RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding CopperFeatures:
1. Less Spatter - The stabilization of the weld pool virtually eliminates spatter. Absorb more laser internally in keyhole and weld pool of work-piece.
2. High Welding Quality - high-quality weld seams which ensure high strength with no pores, seam collapse, cracks or end scratches.
3. Fast Welding - High efficiency.
4. More Throughput - Increased productivity - maximizes uptime and significantly reduces rework of welded parts.
5. Lower operating costs - benefit from lower machine down-times, less post-processing, fewer rejects and very high protective glass resistance.
6. Maximum application flexibility.
7. Easy to operate and maintenance.
8. Touch screen - digital parameter setting in monitor.
9. Language in English as standard. (Support Customized Language in Controller)
10. Laser beam size adjustable 0~5mm according to welding requirements.
11. Inside of laser head with simple structure and high sealing performance.
12. Extremely durable lens.Drawer type mirror holder - Easy for replacing.
13. High performance laser welding head with laser source and controller.
14. Suitable for various automation supporting solutions.
15. Competitive Quotation.
RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding CopperTechnical Parameters:
Model
HW-DH-ECO-MP
Laser Power
4000 W / 6000 W
Laser Source
HW-DH-Middle Power / HW-DH-High Power
Laser Beam
Ring and Spot
Laser Core
50um / 100um
Laser Power Stability
≤ 3%
Laser Power adjustable
10%~100%
Laser output frequency
≤ 20 Khz
Cooling Method
Water Cooling
Controller system
HW-AMB
Laser Head
HW-AMB-36
Camera and Monitor
Welding process
X axis travel
Option
Y axis travel
Option
Z axis travel
Option
Rotary axis travel
Option
Working mode
CW / QCW / PWM
Mechanical Software
HW Laser
Display screen
HW Laser
Machine Size
875*531*849mm
Machine Weight
150 Kg / 200 Kg
Ambient Temperature
5~40℃
Ambient Humidity
30%RH~70%RH
Rated Input Voltage
380v 50/60Hz
Power Consumption
≤ 20Kw / ≤ 30Kw
RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding CopperApplication:
HW-AMB-ECO laser welding technology achieves efficient, precise, and reliable welding results through its unique laser beam design and energy control. It is an advanced welding technology with broad application prospects.
1. It has broad application prospects in fields such as battery modules packs, lithium batteries of electric vehicles, etc.
2. Widely used in welding and processing industries such as automobiles.
3. Widely used in welding and processing industries such as consumer electronics.
4. Widely used in welding and processing industries such as ships.
5. Widely used in welding and processing industries such as jewelry.
6. Widely used in aluminium, copper, brass, gold, silver welding and processing industries.
7. Widely used in special materials welding and processing industries,which itself has high reflectivity for lasers.
RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding CopperOverview:
Laser

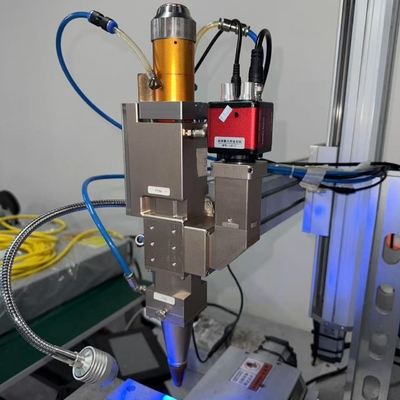

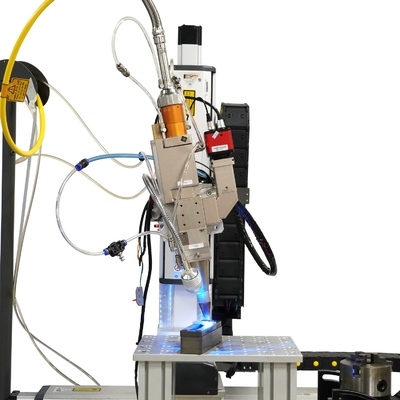

Welding Head
Coaxial air blowing
Side blowing
Dimension of the Light Spot
RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding CopperSample:
Copper
Aluminum
Steel
