Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Electrical Input Voltage: 220v 50Hz / 60Hz Laser Power: Up To 3000W
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Welding Materials: Steel / Stainless Steel / Aluminium
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Cooling water: Purified Water Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon )
Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option ) Double Route Wire Feeder: Option (Same Time Double Route Feeding)
High Light:

150mm Handheld Welding Machine

,

Adjustable Handheld Welding Machine
Product Description

Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length





Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length Description:



The Handheld Single Wobble Welding Head represents a significant leap forward in welding technology, particularly in the welding of steel, stainless steel, and aluminum. This cutting-edge device is equipped with four laser output modes: Continuous Wave (CW), Pulse Width Modulation (PWM), Quasi-Continuous Wave (QCW), and Argon-assisted.

The CW mode offers a continuous and stable laser emission, which is essential for creating precise and reliable welds on steel, stainless steel, and aluminum. It ensures a seamless welding process, providing a constant energy flow for optimal results. The PWM mode, with adjustable pulse width modulation, allows for the fine-tuning of weld characteristics to meet the specific needs of these three metals, regardless of their varying thicknesses. The QCW mode combines high peak power with a reasonable average power, making it highly effective in handling different welding tasks on steel, stainless steel, and aluminum, from thin aluminum foils to thick steel and stainless steel components, while reducing heat-affected zones. The Argon-assisted mode, designed to work in combination with argon gas, is crucial for achieving high-quality welds on stainless steel and aluminum, reducing oxidation and impurities and enhancing the visual appearance of the welds.

During the welding of steel, stainless steel, and aluminum, this welding head stands out. It produces clean, accurate, and strong weld seams with minimal spatter and distortion. The welding arc is stable, enabling smooth and uninterrupted welding. Whether dealing with thin or thick parts of these materials, it achieves excellent fusion, ensuring the strength and integrity of the welded joints. Therefore, it can easily meet the strict quality requirements of a wide range of welding projects, from assembling delicate aluminum electronic components to fabricating heavy-duty steel and stainless steel industrial frameworks.

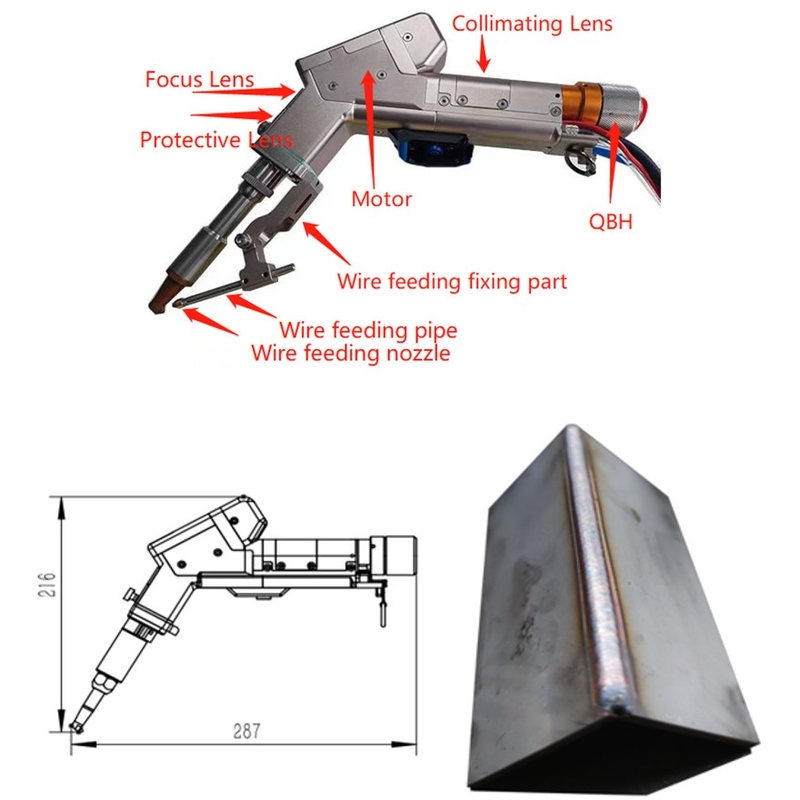

Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length 0

Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length Features:

  • Handheld Laser Gun Weight: 0.7kg
  • Product Name: Fiber Laser Welding Gun
  • Welding Materials: Steel / Stainless Steel / Aluminium
  • Laser Power: Up to 3000w
  • Laser Beam Size: 0~5mm Adjustable
  • Welding Beam Form: Line “一”
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam
  • Handheld Laser Gun Materials: Aluminium alloy & Stainless Steel
  • Cooling method: Water Cooling



The Fiber Laser Welding Head, being a vital component in the handheld single wobble welding system, is presented as a high-power Fiber Laser Gun incorporated with a QBH fiber connector. The diameter of the laser beam is adjustable within the scope of 0 to 5mm and is accompanied by a red alignment beam for accurate positioning. Weighing merely 0.7kg, it provides exceptional convenience and outstanding mobility. The handheld single wobble design endows it with remarkable flexibility, enabling it to effortlessly manage various welding angles and intricate processes. Its user-friendly design further enhances the operator's ease and comfort during extended operation.

Featuring an ergonomic design, it not only fulfills advanced welding demands but also strikes a balance between welding capabilities and comfort during prolonged use. Its lightweight and compact structure ensures a comfortable hold and can easily accommodate diverse welding tasks in different working environments, be it large-scale manufacturing in industrial facilities or outdoor on-site repair and maintenance work. Thus, it represents an ideal choice for both sophisticated and challenging welding operations.


Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Welding Power

Up to 3000W

Handheld Laser Gun Weight

0.7kg

Feeding Wires

Standard type : 0.8&1.0&1.2&1.6mm wire ( Option: 2mm wire )

Double Route Wire Feeder

Option ( Same time double route feeding )

Welding Beam Form

Line " 一 "

Fiber Connector

QBH

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Welding Beam Size

0-5mm Adjustable ( 0-10mm option )

Gas

Argon / Nitrogen

Welding Parameter Save

30 kinds of different welding parameter save

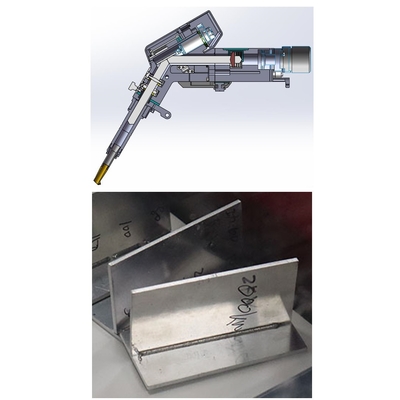

Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length 1





Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length Application Advantages:



The HanWei HW-20-60150 handheld welding device, empowered by the CW, PWM, QCW, and Argon laser modalities, ushers in a novel echelon of welding proficiency.

CW discharges a constant laser, fabricating exceedingly precise and steady welds that are indispensable for intricate operations. The adjustable pulse width modulation of PWM facilitates effortless accommodation to diverse metal thicknesses and elaborate structures. QCW, through the combination of high peak and reasonable average power, proficiently manages everything from slender foils to thick plates. The Argon mode exploits the inert properties of argon to mitigate oxidation, culminating in impeccable and enduring welds.

This machine's mobility affords on-site expediency, and its wireless functionality augments productivity, rendering it a cardinal tool in construction, manufacturing, and repair undertakings.

The handheld single wobble version, augmented by these modalities, outperforms conventional welding techniques when handling thin metals such as stainless steel, steel, and aluminum. Its ergonomically engineered, lightweight welding head ensures a cozy and firm grasp. Furnished with a safety catch and touch-out light, it is both user-amiable and secure, even for novices. It expeditiously generates first-rate welds devoid of defects or discoloration, and its anti-interference and self-developed control system ensure dependable operation across a wide gamut of applications, spanning from electronics to heavy industry domains.

Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length Packing:

  • One Fiber Laser Welding Head
  • One User Manual
  • One Safety Switch Clip​
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • One Controller
  • Two Protective Lens
  • One Touch Screen Monitor
  • Seven kinds of nozzles
  • One Wire feeding device

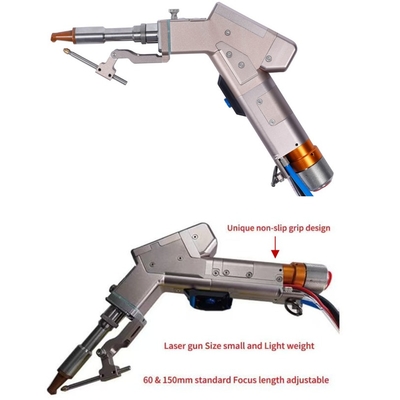

Advanced Handheld Welding Machine with 60 & 150mm Adjustable Standard Focus Length 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. has triumphantly engineered a suite of welding laser products that align with international cutting-edge standards. For instance, the AMB spot ring spot welding machine boasts a technical solution that stands unrivalled among global enterprises. The 'AMB spot ring spot + blue light composite swing welding apparatus' not only plugs the domestic void but also takes the global lead. It tackles the issues of inconsistent laser welding, coarse welding surfaces, and spattering that occur when processing highly resistant materials like copper and gold. The 'AMB spot ring spot + semiconductor composite welding equipment' resolves the challenges regarding welding speed and the uniformity of fusion depth for aluminum materials in power batteries. The'semiconductor + single lamp single rod 600W composite laser welding device' overcomes the hurdles of low productivity, subpar welding quality, and sluggish processing speed in power battery sealing nail welding.

Hanwei Laser's products enjoy extensive applications across diverse fields, including new energy batteries, automotive, automotive components, electronic circuits, fiber optic communication apparatus, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments, medical devices, solar energy, the eyewear industry, and the motor industry. In numerous of these industries, a significant number of products display an unbeatable welding performance.
